Low Drift Fiber Optic Gyroscope for Industrial Motion Control & Antenna Stabilization

Name: Low Drift Fiber Optic Gyroscope for Industrial Motion Control & Antenna Stabilization
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 500 USD
Availability: InStock

Nama merek:	FIREPOWER
Nomor Model:	MFOG-095
Moq:	1
harga:	500$
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Kisaran gyro:

±150 derajat/dtk

Ukuran:

60mm × 35mm × 25.5mm

Koefisien jalan acak:

≤0,02°/Vh

Berat:

≤70g.

Stabilitas bias:

≤2 °/jam

Pengulangan Bias:

≤2 °/jam

Kemasan rincian:

spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

low drift fiber optic gyroscope

industrial motion control gyroscope

antenna stabilization gyro sensor

Deskripsi produk

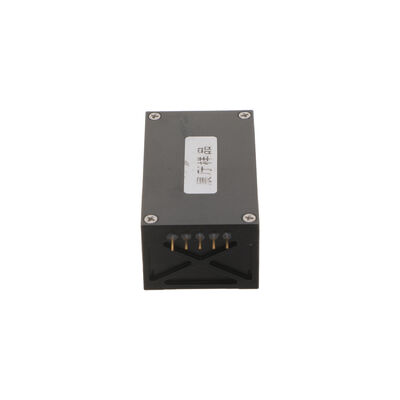

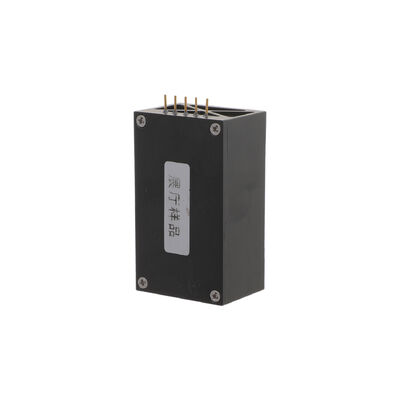

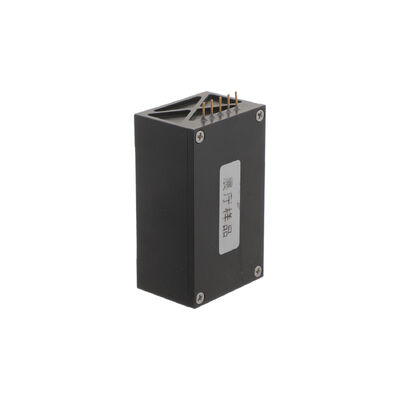

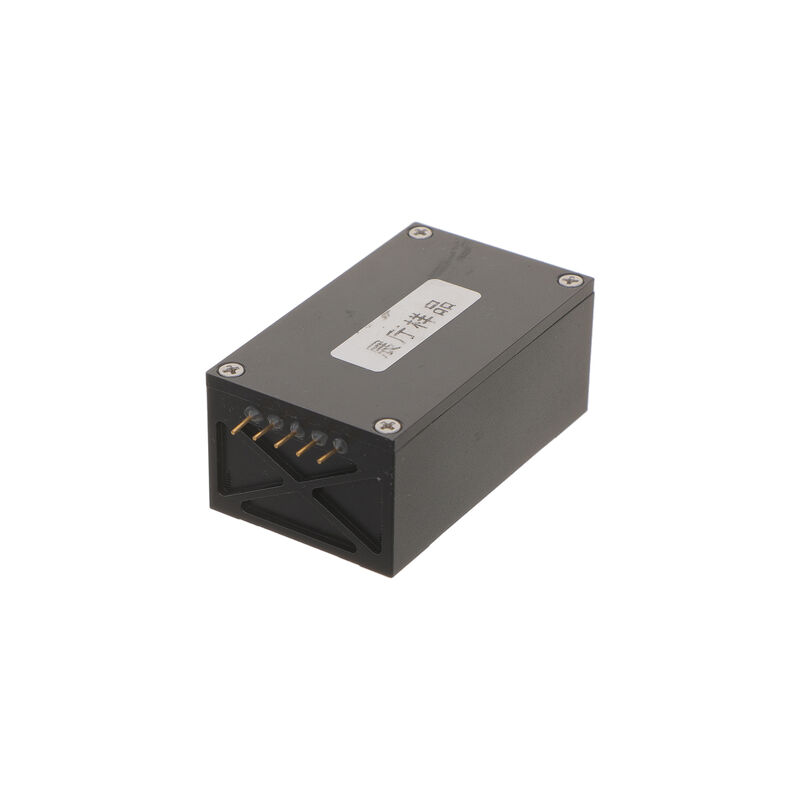

MFOG-095 Micro-Nano Fiber Optic Gyroscope

Product Overview

The MFOG-095 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, this product incorporates multiple micro-nano fiber devices and detects phase differences generated by counter-propagating light beams through sophisticated processing and feedback systems.

Comprising optical path components, circuit components, and structural elements, this gyroscope features a simple design with no moving or wearing parts. It offers rapid startup, compact dimensions, and lightweight construction, making it ideal for carrier attitude control and measurement applications in industrial motion control and antenna stabilization systems.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber optic coil skeleton, housing, and structural components

Physical Specifications

Dimensions: 60mm × 35mm × 25.5mm (excluding connector)

Weight: ≤70g

Random vibratio:Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

Technical Performance Parameters

Parameter	Specification
Range (°/s)	±150
Scale Factor (mV/°/s)	≥10
Zero-Bias Stability (10s, 1σ, °/H)	≤2
Zero-Bias Repeatability (1σ, °/H)	≤2
Zero Bias (°/s)	≤0.05
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Start-up Time (s)	≤1
Power Supply (V)	5±0.15
Power Consumption (W)	≤0.7

Mechanical Interface
