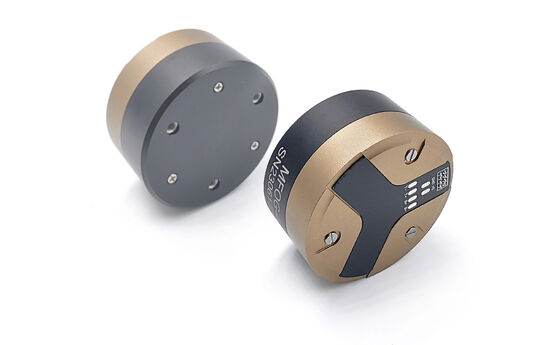

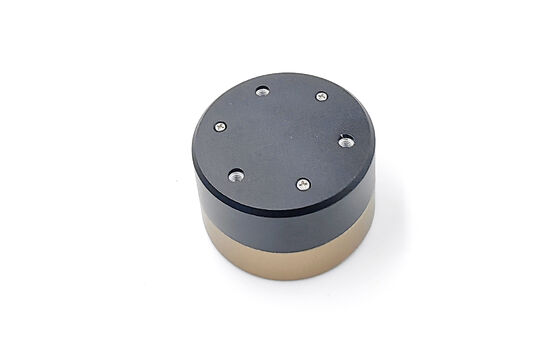

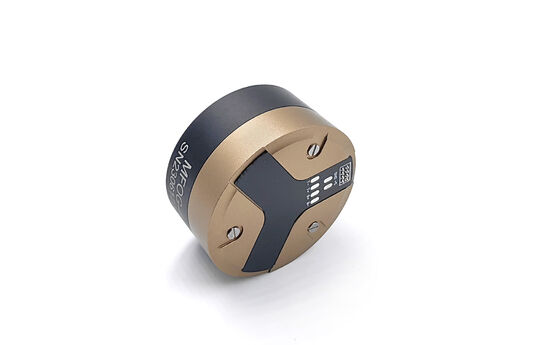

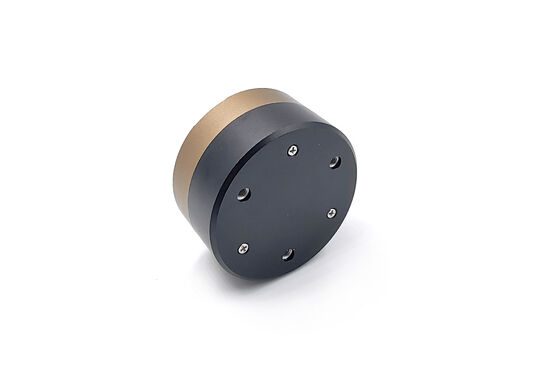

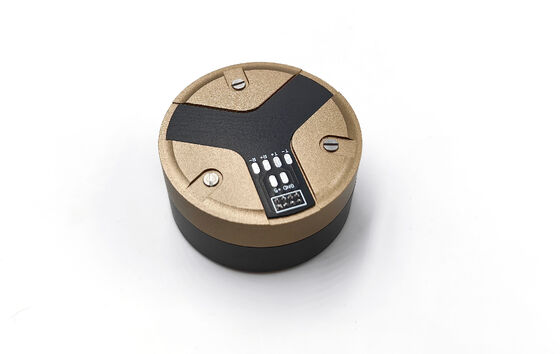

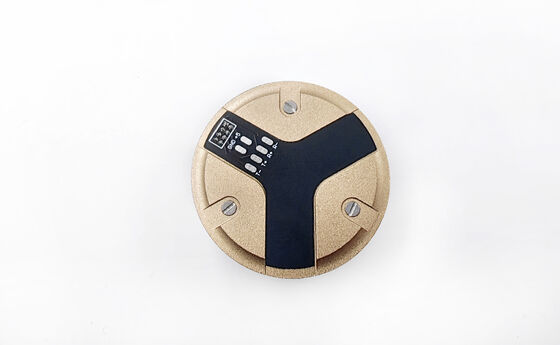

Tactical Grade Open-Loop Fiber Optic Gyroscope Module with RS422 Interface for UAV Drone & Robot Stabilization

Nama merek:	FIREPOWER
Nomor Model:	MFOG-40
Moq:	1
harga:	500$
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Rentang Pengukuran:

150°/s

Ukuran:

ф40mm x 20mm

Akurasi dinamis:

<1°/jam

Pengulangan Bias:

2°/jam

Faktor skala:

12±1,2mV/ ° /dtk

Bandwidth 3DB:

≥450Hz

Kemasan rincian:

spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

tactical grade fiber optic gyroscope

open-loop gyroscope module RS422

UAV drone stabilization gyroscope

Deskripsi produk

Tactical Grade Open-Loop Fiber Optic Gyroscope Module with RS422 Interface

MFOG-1703 Micro-Nano Fiber Optic Gyroscope

The MFOG-1703 micro-nano fiber optic gyroscope is a high-precision angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, this product incorporates multiple micro-nano fiber optic devices and measures angular rate by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams.

Featuring a simple structure with no moving or wearing parts, the MFOG-1703 offers fast start-up, small size, light weight, and high reliability. This tactical grade gyroscope is specifically designed for UAV drone and robot stabilization applications, providing precise attitude measurement and control for various carriers.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber coil skeleton, housing, and other mechanical structural parts

Technical Specifications

Parameter	Specification
Range (°/s)	±150
Scale Factor (mV/°/s)	12±1.2
Zero-bias Stability (10s, 1σ, °/h)	≤1
Zero-bias Repeatability (1σ, °/h)	≤1
Angular Random Walk (°/h^1/2)	≤0.02
Zero-bias Temperature Sensitivity (μV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms, half sine
Power Supply (V)	5 ± 0.25
Power Consumption (W)	≤1
Dimensions (mm)	φ40 × 20

Outline Drawing
