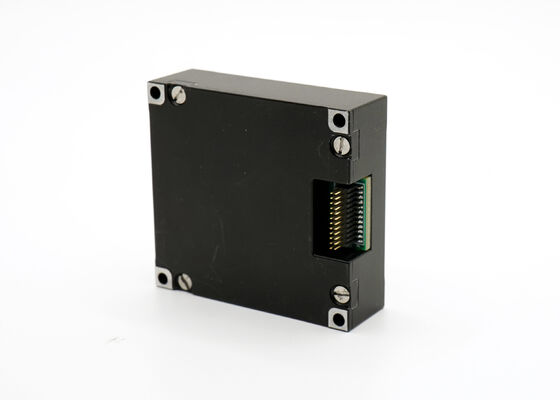

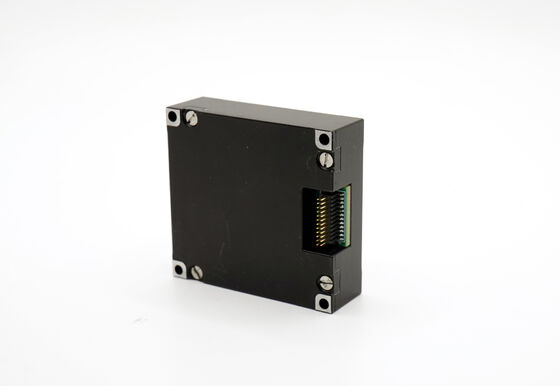

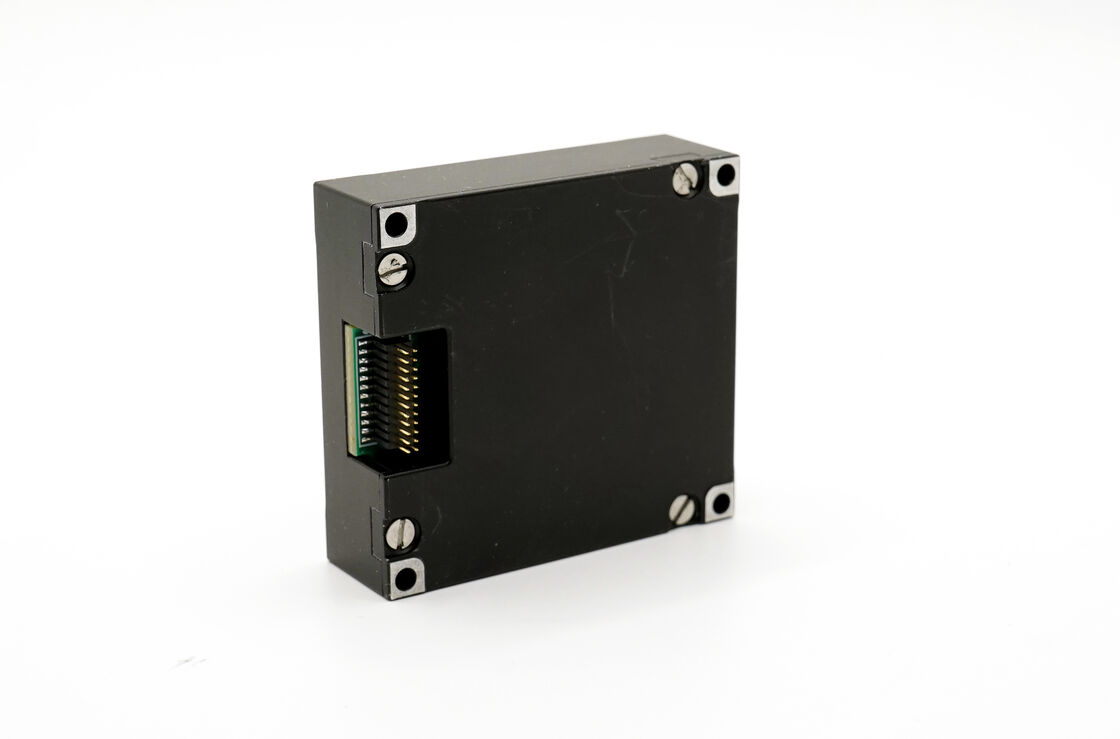

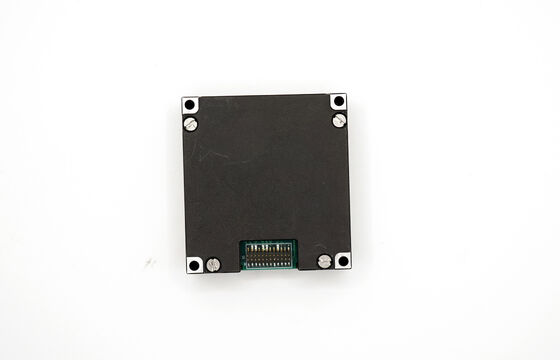

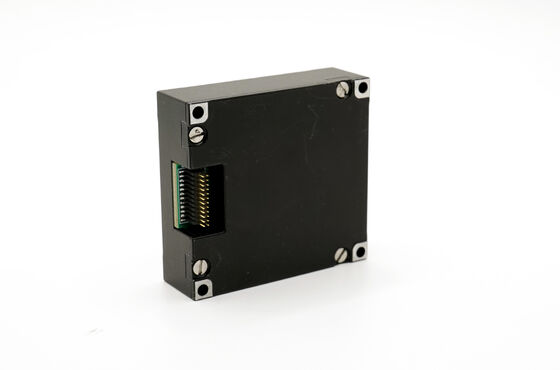

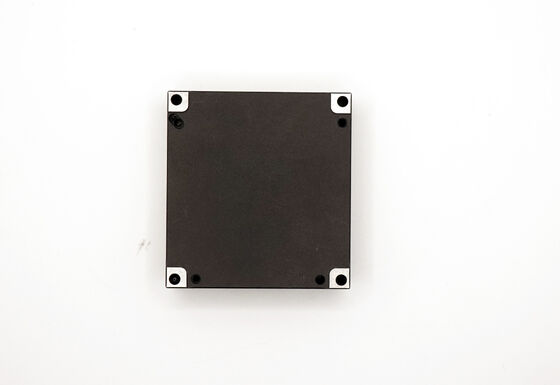

10 Axis High Precision IMU with Gyro Accelerometer Magnetometer & Barometer

Name: 10 Axis High Precision IMU with Gyro Accelerometer Magnetometer & Barometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 670.00 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	16488HB
Moq:	1
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Rentang Pengukuran:

500/ 2000°/dtk

stabilitas bias nol:

0,8°/jam

Bandwidth:

200 Hz

Koefisien jalan acak:

≤0,15°/Vh

Perubahan Bias Nol Terhadap Suhu, Sumbu X dan Y:

±0,06°/dtk

Kepadatan kebisingan:

0,001°/dtk/ √Hz

Kemasan rincian:

spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

10 axis high precision IMU

IMU with gyro accelerometer

high precision magnetometer barometer

Deskripsi produk

10 Axis High Precision IMU with Gyro, Accelerometer, Magnetometer & Barometer

Product Overview

The 16488HB Inertial Measurement Unit (IMU) is a high-performance MEMS-based IMU featuring a three-axis digital gyroscope, accelerometer, and magnetometer. This precision navigation unit offers a dynamic range of ±2000º/s for the gyroscope and ±200g for the accelerometer. With exceptional reliability and environmental adaptability, it's an ideal solution for unmanned motion carriers, mobile communication, and surveying applications. This model serves as a complete replacement for the Adis 16497, providing enhanced accuracy and stability for critical operations.

Product Features

Three-axis digital gyroscope: ±2000º/s dynamic measurement range with zero bias stability of 3°/H (GJB, 10S, Z-axis) and 0.8°/H (ALLAN, Z-axis)
Triaxial digital accelerometer: ±200g dynamic measurement range with zero bias stability of 0.4mg (GJB, 10S) and 0.06mg (ALLAN)
Triaxial digital magnetometer: 2.5 gauss measurement range
Digital barometer: 300mbar to 1100mbar range
High reliability: MTBF 20,000 hours
Full temperature range accuracy: Guaranteed performance from -40℃ to +80℃ with built-in temperature calibration and compensation
Vibration resistance: Suitable for operation under strong vibration (6.06 G, 20-2000 Hz)
Impact resistance: Suitable for working under large impact conditions (1000 G, 0.5ms)

Technical Specifications

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Gyroscope
Dynamic measuring range		500		2000	°/s
Zero bias stability	Allan variance, Z-axis		0.8		°/h
Zero bias stability	Allan variance, X and Y axis		1.6		°/h
Zero bias stability	10s average (-40℃~+70℃, constant temperature), Z-axis		3		°/h
Zero bias stability	10s average (-40℃~+70℃, constant temperature), X and Y axis		6		°/h
Zero bias	Zero-bias range, Z-axis		±0.07		°/s
Zero bias	Zero-bias range, X and Y axis		±0.2		°/s
Zero bias change in full temperature range	Z-axis		±0.02		°/s
Zero bias change over temperature	X and Y axis		±0.06		°/s
Scale factor accuracy	Z-axis		0.3		%
Scale factor accuracy	X and Y axis		0.6		%
Angular random walk			0.15		°/√hr
Noise density			0.001		°/s/√Hz
Accelerometer
Dynamic measuring range		16		200	g
Zero bias stability	Allan variance		0.06		mg
Zero bias stability	10s average (-40℃~+70℃, constant temperature)		0.4		mg
Zero bias range			2		mg
Scale factor accuracy			0.5		%
Noise density			0.025		mg/√Hz
Magnetometer
Magnetic field range	Brg,xy		±13		gauss
Heading accuracy	30 μT horizontal geomagnetic component, 25℃		±2.5		deg
Electrical Characteristics
Voltage		3.0	3.3	3.6	V
Power consumption			1.5		W
Structural Characteristics
Size			474414		mm
Weight			50		g

Note: Zero bias calculations for full temperature change process assume temperature change rate ≤ 1℃/min within -40℃ to +70℃ range. Vibration conditions are 6.06 G, 20Hz-2000Hz.

Outline Drawing
