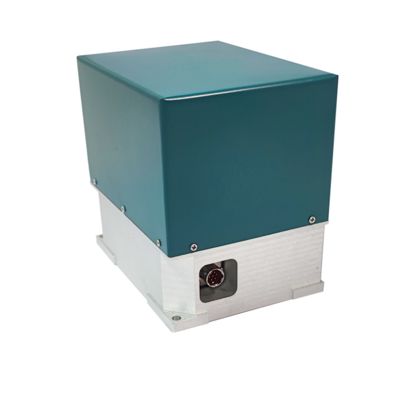

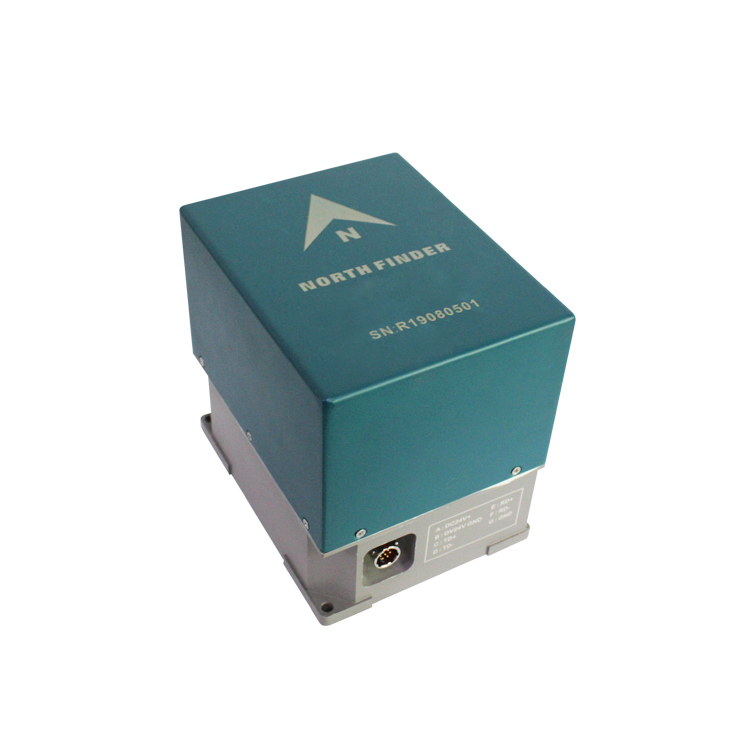

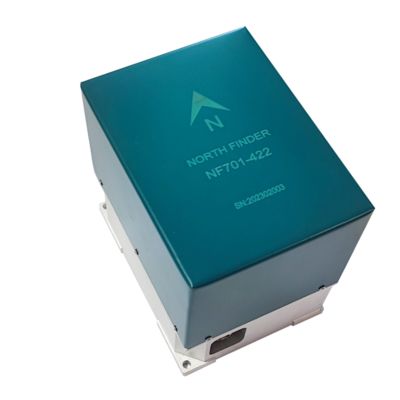

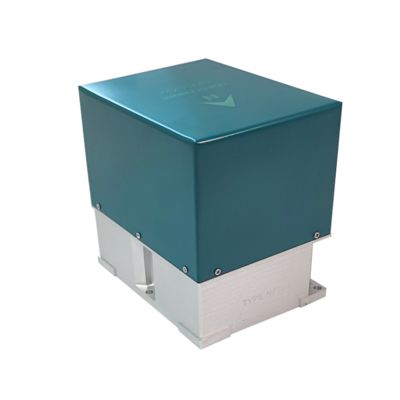

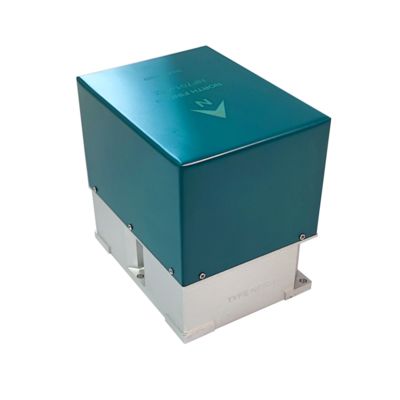

FOG North Finder with 0.3°Accuracy True Finder with RS422 Interface

Nama merek:	Firepower
Nomor Model:	NF701A
Moq:	1
harga:	5000$
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	500/BUAH

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Tiongkok

Keakuratan mencari utara:

0,3° / 0,5°

Kelembaban:

≤ 95%

Dimensi:

115×90×110mm

Berat:

2 kg

Masukan Daya:

DC 12–24V

Antarmuka:

RS-422

Kemasan rincian:

Spons+ Karton

Menyediakan kemampuan:

500/BUAH

Menyoroti:

FOG North Finder with RS422 interface

high accuracy FOG North Finder

gyro sensor with 0.3° accuracy

Deskripsi produk

FOG North Finder with 0.3° Accuracy True Finder with RS422 Interface

The Fiber Optic Gyroscope North Finder provides precise true-north orientation for navigation, mapping, and weapon guidance systems. This all-in-one device automatically detects the Earth's rotational rate and computes accurate azimuth and attitude data within 3 minutes.

The system integrates a high-accuracy FOG, accelerometer, motorized turntable, and embedded computer. With ≤0.3° north-seeking accuracy and ≤0.05° horizontal accuracy, it delivers stable, repeatable performance for UAVs, armored vehicles, and surveying equipment.

Overall Dimensions

Dimension (mm): 115 * 90 * 110

Technical Specifications

North seeking time: ≤ 3 minutes
North seeking accuracy (1σ): ≤ 0.3° (NF701A); ≤ 0.5° (NF701B)
Horizontal accuracy: ≤ 0.05° (1σ)
Circumference: ≤ 0.5° (1σ)
Weight: ≤ 2 kg
Power supply: DC 12V ~ 24V
Power consumption: 15 W (peak)
Interface: RS422
Working mode: Automatic self-check after power on, controlled by upper computer with results transmission

Environmental Requirements

Operating temperature: -40℃ to +70℃
Storage temperature: -55℃ to +85℃
Humidity: Relative humidity less than 95%
Appearance: Metal surface free of rust with coating intact

Electrical Performance

Insulation resistance: The insulation resistance between independent circuits and between circuits and shell shall not be less than 10 MΩ under standard atmospheric conditions.

Reliability & Maintainability

MTBF: ≥ 1000 hours
MTTR: ≤30 minutes

External Interfaces

DC12V ~ 24V power input
Serial port output function

External Plug Interface Y50EX-0607TX2

Plug Pin Number	Functional Definition
a	DC12V ~24V
b	DC12V ~24V GND
c	TD+
d	TD-
e	RD+
f	RD-
g	GND
