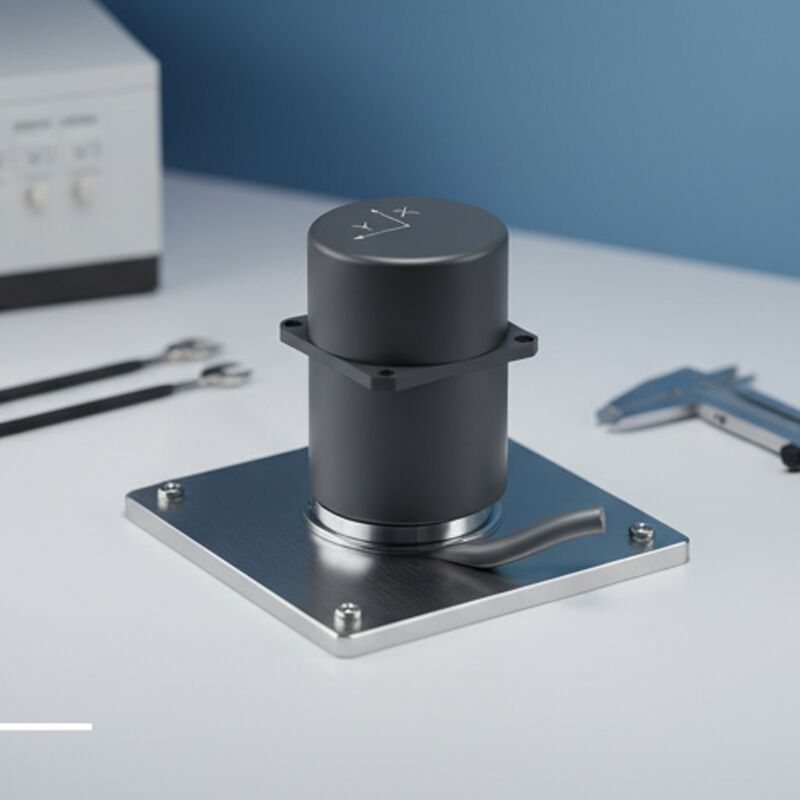

Two Axis MEMS Gyroscope with Built-in Compensation for Angular Rate Measurement

Nama merek:	Firepower
Nomor Model:	MG2
Moq:	1
harga:	500$
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Rentang Pengukuran:

±500°/dtk

Instabilitas bias nol:

1°/jam

stabilitas bias nol:

10 °/jam

Kesalahan bias nol pada suhu penuh:

20°/jam

Jalan acak:

0,15°/√jam

Pengulangan tanpa bias:

10 °/jam

Kemasan rincian:

Karton+Spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

MEMS gyroscope angular rate sensor

two-axis gyroscope with compensation

IMU gyroscope for rate measurement

Deskripsi produk

Two Axis MEMS Gyroscope with Built-in Compensation

This dual-axis gyroscope assembly is a precision angular rate sensor featuring a domestic MEMS gyroscope with independent intellectual property rights. The integrated system includes drive pickup circuitry, temperature sensor, digital signal processing, and mechanical structure. It provides real-time measurement of two horizontal axial angular rates, outputting compensated data via RS-422 serial communication with comprehensive error correction for temperature, misalignment, nonlinearity, and zero offset.

Designed for demanding applications, this compact and lightweight sensor offers exceptional robustness against environmental factors including mechanical impact and electromagnetic interference. Ideal for attitude control in stabilized sighting systems and satellite communication antenna control applications.

Main Technical Parameters

Parameter	Unit	Test Conditions	MG2	MG2A	MG2B	MG2C
Measuring range	°/s		±500	±500	±500	±400 / ±400 / ±300
Zero-bias instability	°/h	Allan variance	1	1	1	0.1 / 0.05 / 0.08
Zero bias stability	°/h	1s smooth, RMS, Normal temperature	10	10	10	5 / 1 / 3
Zero-bias error at full temperature	°/h	10s smoothing, RMS Temperature change rate 1 ℃/min	20	20	20	10 / 2 / 5
Random walk	°/√h	Allan variance	0.15	0.15	0.15	0.05 / 0.02 / 0.03
Zero-bias repeatability	°/h	Q = 6, normal temperature	10	10	10	5 / 1 / 5
Zero-bias acceleration sensitivity	°/h/g	Test at ± 1 g	1	1	1	1 / 1 / 1
Resolution	°/h		2	2	2	1 / 0.5 / 1
Output noise	°/s	Peak (Half Peak, RMS *3)	0.4	0.3	0.4	0.25 / 0.15 / 0.2
Bandwidth	Hz		250	250	150	400
Scale factor nonlinearity	ppm	Normal temperature	300	300	300	300 / 300 / 300
Scale factor repeatability	ppm	Q = 3, normal temperature	300	300	300	300 / 300 / 300
Cross coupling	%	Normal temperature	0.2

Electrical Characteristics

Parameter	Unit	MG2y
Voltage	V	5±0.25
Starting current	mA	200
Steady-state power consumption	W	≤1
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	MG2y
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Other Specifications

Parameter	Unit	MG2y
Weight	g	≤20
Start time	s	<1

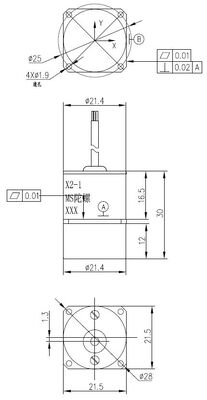

Overall Dimensions
