Real-Time Inertial Measurement Unit for Robotics and Automation

Name: Real-Time Inertial Measurement Unit for Robotics and Automation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU6-36
Price: 3,003.00 USD
Availability: InStock

Nama merek:	FIREPOWER
Nomor Model:	IMU6-36
Moq:	1
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Instabilitas bias nol:

≤3 °/jam

Rentang Pengukuran:

480°/dtk

Jalan acak sudut:

0,25°/√ jam

Rentang Pengukuran (Akselerometer):

Dapat dikonfigurasi 2 ~ 16g

Pengulangan tanpa bias:

≤5°/jam

Bandwidth:

≥100Hz

Berat:

18g

Voltase:

5±0,3V

Antarmuka:

UART

Rentang Pengukuran:

±480°/dtk

Pengulangan Bias:

≤5°/jam

kopling silang:

≤0,1%

Nonlinier faktor skala:

≤50ppm

Riak:

100mV

Kemasan rincian:

spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

Real-Time IMU for robotics

Inertial Measurement Unit sensor

Gyro sensor for automation

Deskripsi produk

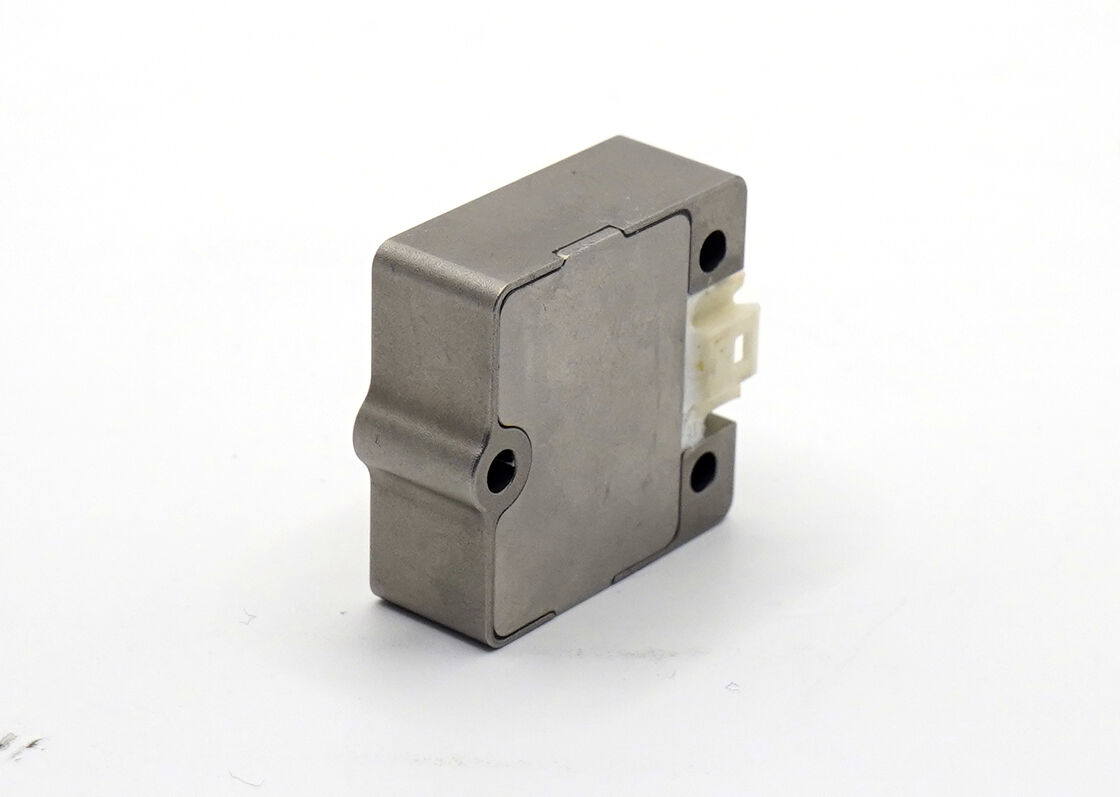

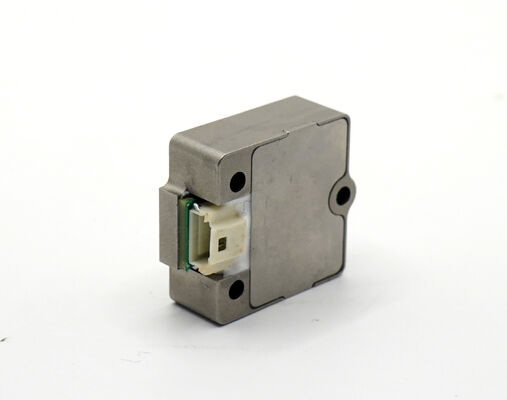

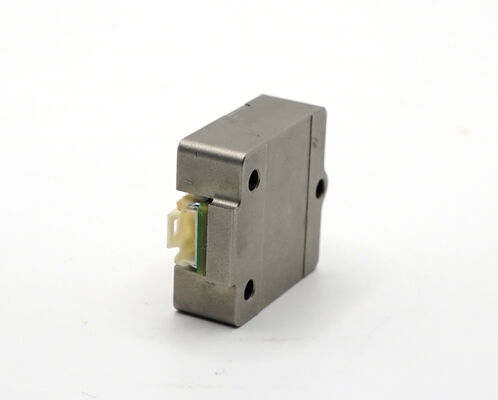

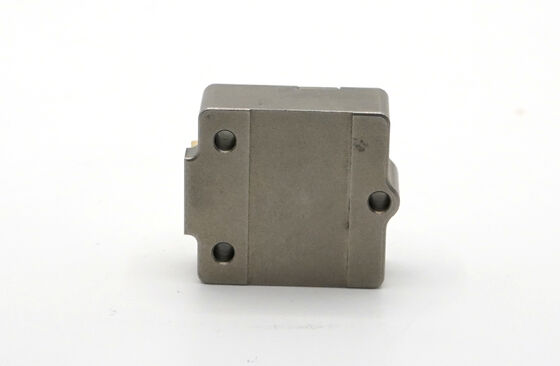

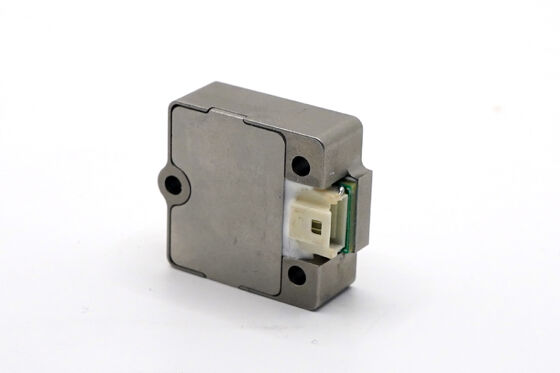

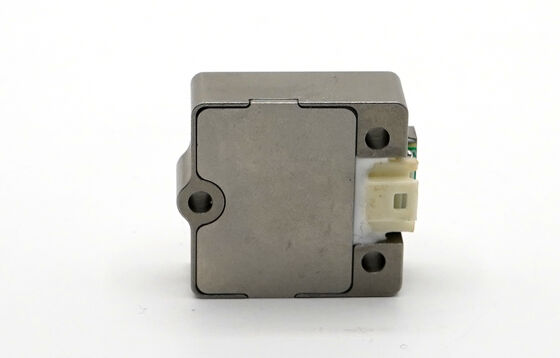

Real-Time Inertial Measurement Unit for Robotics and Automation

The IMU6-36 Inertial Measurement Unit delivers precise measurements of three-axis angular rates and accelerations. This rugged unit integrates a 3-axis gyroscope, 3-axis accelerometer, temperature sensor, and signal processing board, outputting data with advanced error compensations including temperature and installation misalignment angle corrections. Designed for applications requiring high stability and reliability in aerospace, automotive, and robotics industries.

Gyroscope Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	°/s	Configurable	±480
Zero-bias instability	°/h	Allan variance	≤3
Zero bias stability	°/h	10s smooth, RMS, normal temperature	≤8
Zero bias variation at full temperature	°/h	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤150
Random walk	°/√h	Allan variance	≤0.25
Zero-bias repeatability	°/h	Q = 6, normal temperature	≤5
Scale factor nonlinearity	ppm	Normal temperature	≤50
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Accelerometer Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	g	Configurable 2 ~ 16g	±16
Zero bias stability	mg	10s smooth, RMS, normal temperature	≤0.1
Zero bias variation at full temperature	mg	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤2.5
Zero-bias repeatability	mg	Q = 6, normal temperature	≤0.1
Scale factor nonlinearity	ppm	Normal temperature, ± 1 g	≤200
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Power Supply Requirements

Parameter	Unit	IMU6-36
Voltage	V	5±0.3
Starting current	mA	100
Steady-state power consumption	W	≤0.25
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-36
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Additional Specifications

Parameter	Unit	IMU6-36
Weight	g	18±1
Start time	s	≤2

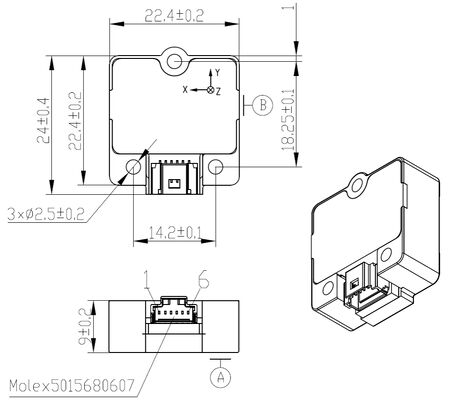

Outline Drawing
