Real-Time 6-Axis IMU with Full Error Compensation for Navigation

Name: Real-Time 6-Axis IMU with Full Error Compensation for Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU115
Price: 200 USD
Availability: InStock

Nama merek:	FIREPOWER
Nomor Model:	IMU115
Moq:	1
harga:	200$
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	2000/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Tiongkok

Kisaran pengukuran dinamis:

500º/dtk

Stabilitas bias nol:

3,0º/jam

Kisaran bias nol:

±0,2º/dtk

Bandwidth:

80Hz

Ukuran:

22,4×22,4×9,5 mm

Antarmuka Komunikasi:

1 arah UART

Kemasan rincian:

karton dengan spons

Menyediakan kemampuan:

2000/bulan

Menyoroti:

6-axis IMU with error compensation

real-time IMU accelerometer

navigation gyro with full compensation

Deskripsi produk

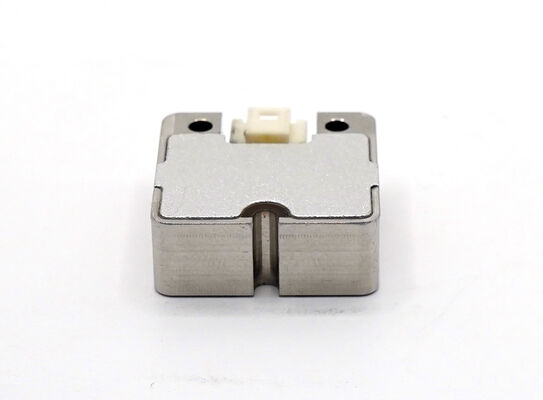

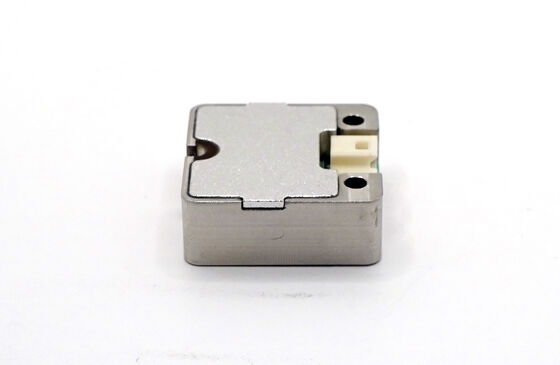

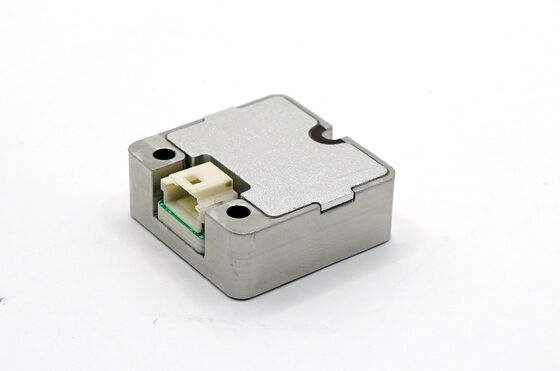

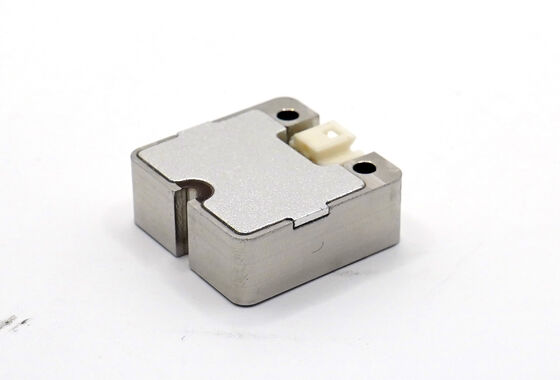

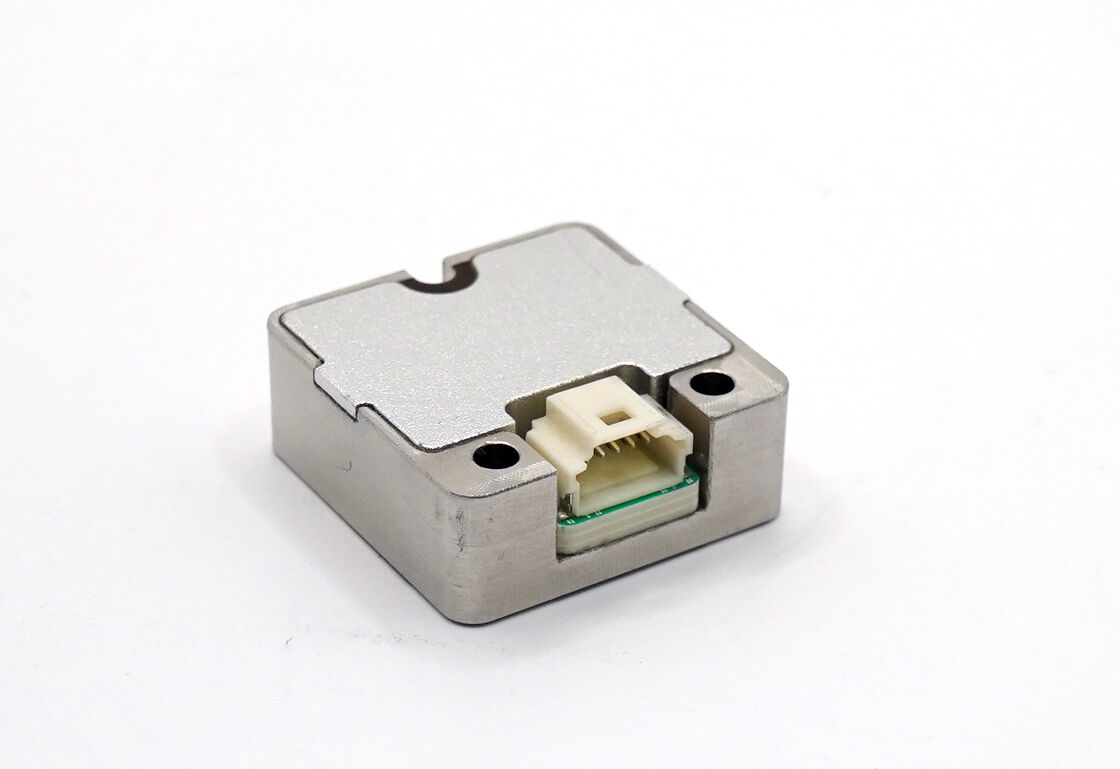

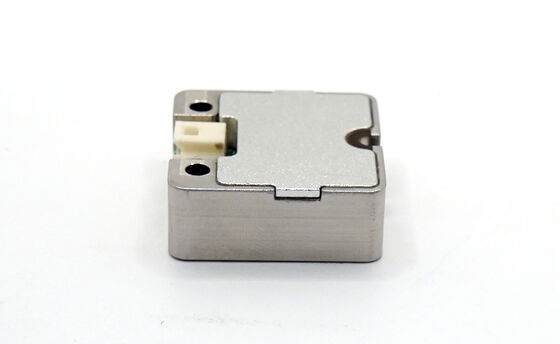

Real-Time 6-Axis IMU with Full Error Compensation for Navigation

Product Overview

The IMU115 is a high-performance inertial measurement unit (IMU) based on micro-mechanical MEMS technology, featuring built-in gyroscopes and accelerometers that output 3-axis angular velocities and 3-axis accelerations. Designed for exceptional reliability and environmental adaptability, this unit is suitable for intelligent driving, mobile communications, mapping, and stabilization platforms.

Key Features

Three-axis digital gyroscope:
- ±250º/s dynamic measuring range (500º/s optional)
- Zero bias stability: 10º/h (GJB, 10s, typical), 6.0º/h (ALLAN, typical)
Triaxial digital accelerometer:
- ±4g dynamic range (configurable to 16g)
- Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (ALLAN)
High reliability with MTBF > 20,000 hours
Full temperature range accuracy (-40℃ to 80℃) with built-in calibration
Robust performance under strong vibration conditions
1-way UART interface

Applications

Intelligent driving systems
Mobile communication platforms
Precision mapping
Stabilization platforms

Technical Specifications

Parameter	Test Conditions	Min	Typical	Max	Unit
Gyroscope
Dynamic range			250	500	º/s
Zero bias stability	Allan variance		3.0		º/h
Zero bias stability	10s avg (-40℃ to +80℃)		6.0		º/h
Zero bias range			±0.2		º/s
Zero bias temp variation			±0.3		º/s
Scale factor accuracy			0.2		%
Scale factor nonlinearity			0.02		%FS
Bandwidth			80		Hz
Accelerometer
Dynamic range			4	16	g
Zero bias stability	Allan variance		0.065		mg
Zero bias stability	10s avg (-40℃ to +80℃)		0.12		mg
Zero bias range			±3		mg
Zero bias temp variation			±6		mg
Scale factor accuracy			0.3		%
Scale factor nonlinearity			0.03		%FS
Bandwidth			80		Hz
Communication Interface
1-way UART baud rate		115.2	460.8		Kbps
UART sampling frequency		200	1000		Hz
Electrical Characteristics
Voltage		4.5	5	5.5	V
Power consumption			0.35		W
Ripple	P-P		20		mV
Structural Characteristics
Size			22.422.49.5		mm
Weight			16		g
Environmental Specifications
Operating temperature		-40		80	℃
Storage temperature		-45		85	℃
Vibration			20-2000Hz, 3g
Impact			1000g, 0.5ms
MTBF			20,000		h
Continuous operation			120		h

Note: Zero bias calculations for full temperature range assume temperature change rate ≤1℃/min (-40℃ to +80℃)

Electrical Interface
