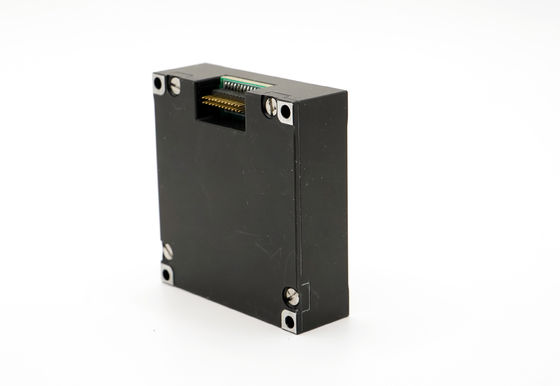

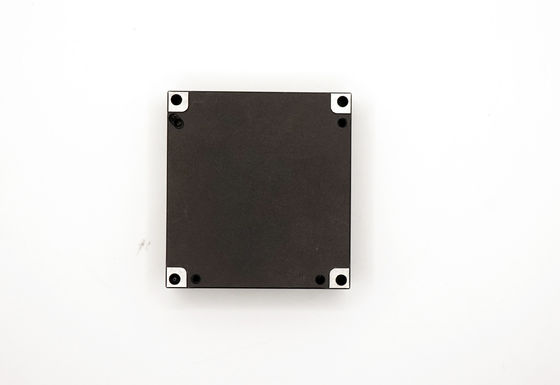

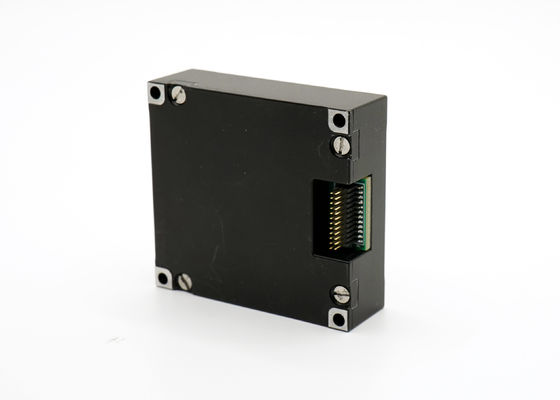

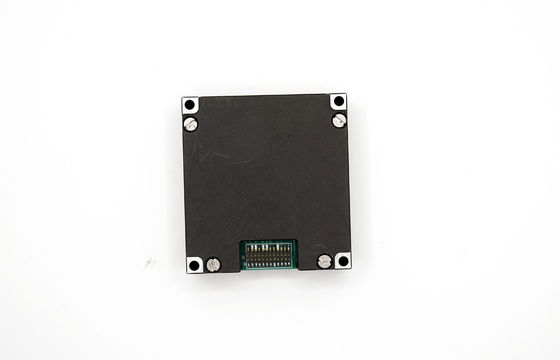

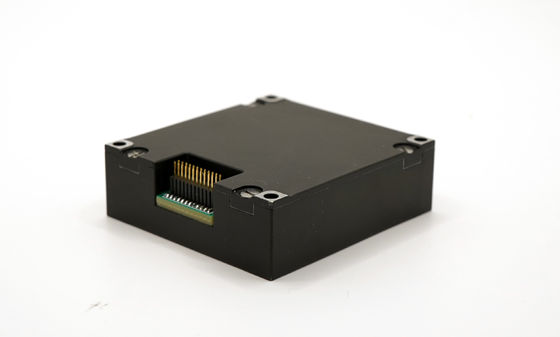

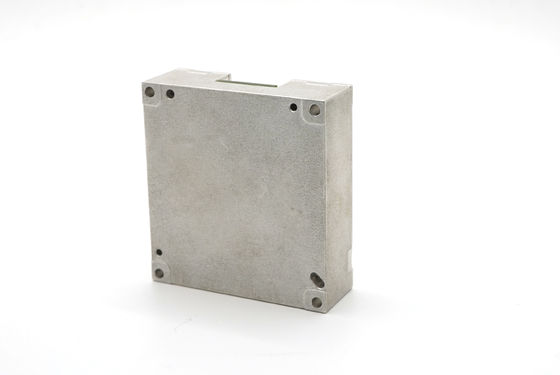

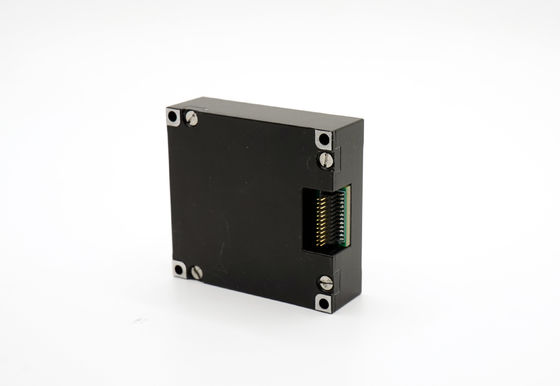

Adis16488 Low Noise 10-DOF Inertial Measurement Unit Sensor for Precision Sensing

Nama

Adis16488 Low Noise 10-DOF Inertial Measurement Unit Sensor for Precision Sensing

Nama merek:	FIREPOWER
Nomor Model:	16488ha
Moq:	1
harga:	200$
Ketentuan Pembayaran:	D/a, l/c, t/t
Kemampuan Penyediaan:	500 pcs

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

CE

Rentang pengukuran dinamis gyro:

±450°/detik

Stabilitas Zero-Bias (@ Allan Varian):

≤0.3 °/jam

Stabilitas bias nol (10s halus):

≤3 °/jam

Jalan acak sudut:

≤0.15 °/jam

Faktor skala nonlinier:

100ppm

Rentang Akurasi:

± 20g

Stabilitas ACC Zero-Bias (Allan Variance @ 25 ℃):

0,07mg

Kesalahan nol bias pada kisaran suhu penuh:

1.5mg

Antarmuka komunikasi:

SPI 1 arah

Voltase:

3.3v

Kemasan rincian:

KOTAK

Menyediakan kemampuan:

500 pcs

Menyoroti:

Adis16488 IMU sensor with low noise

,

10-DOF inertial measurement unit

,

precision sensing IMU accelerometer

Deskripsi produk

ADIS16488 Low Noise 10-DOF Inertial Measurement Unit Sensor

High-performance MEMS Inertial Measurement Unit (IMU) featuring a built-in three-axis gyroscope and three-axis accelerometer for precision sensing applications.

Key Features

Complete inertial system with error-compensated data output
Three-axis angular rate and acceleration measurement
Temperature compensation and nonlinear compensation
SPI communication interface
Low power consumption (1.5W typical)

Key Specifications

Attribute	Value
Gyro Dynamic measuring range	±450°/s
Zero-bias stability (@ Allan variance)	≤0.3 °/h
Acceleration range	±20g
Communication Interface	1-way SPI
Operating voltage	3.3V

Detailed Technical Parameters

Gyroscope Specifications

Parameter	Test conditions	Typical value	Maximum value	Unit
Dynamic measuring range			±450	º/s
Zero-bias instability	Allan variance, better than	0.3		º/h
Random walk	1σ	0.15		º/√h
Bandwidth (-3dB)		250		Hz

Accelerometer Specifications

Parameter	Test conditions	Typical value	Maximum value	Unit
Dynamic measuring range			±20	g
Zero bias stability	Allan variance	0.07		mg
Random walk	1σ	0.029		m/s/√h
Bandwidth (-3dB)		250		Hz

Electrical Characteristics

Parameter	Test conditions	Typical value	Maximum value	Unit
Voltage	Direct current	3.3		V
Power consumption		1.5	1.5	W

Use Environment

Parameter	Test conditions	Minimum value	Maximum value	Unit
Operating temperature		-45	85	℃
Storage temperature		-55	85	℃

Adis16488 Low Noise 10-DOF Inertial Measurement Unit Sensor for Precision Sensing 0

ADIS16488 IMU Sensor outline drawing and dimensions
