IMU Accelerometer Gyro
Created with Pixso.

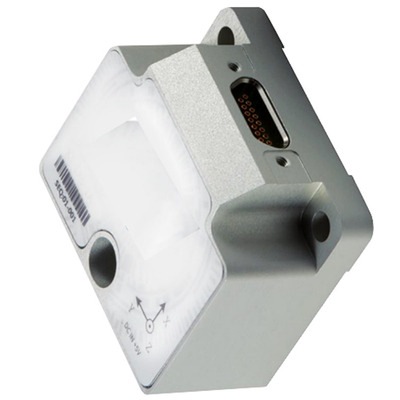

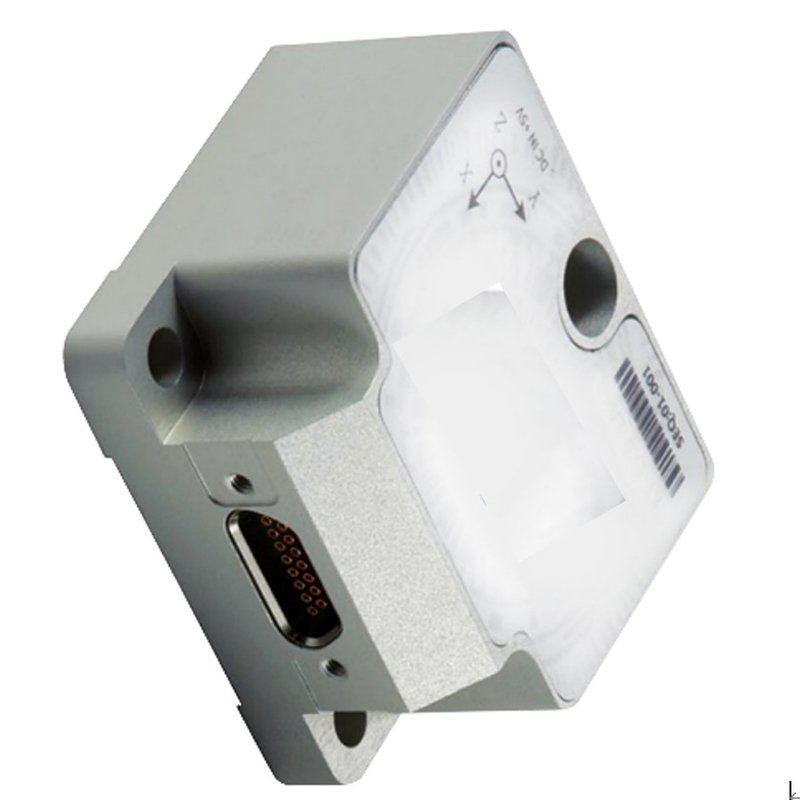

STIM210 Analog IMU Sensor, RS422 Low Bias Micro Gyroscope

STIM210 Analog IMU Sensor, RS422 Low Bias Micro Gyroscope

Nama merek: Firepower
Nomor Model: IMU3
Moq: 1
harga: 2000~2500 USD
Ketentuan Pembayaran: T/T
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
CE ROHS
Nama produk:
IMU murni
rentang pengukuran gyro:
±400°/dtk
Stabilitas nol-bias:
≤ 10 °/J
Jalan acak:
≤ 0,2 °/√ H
Sensitivitas akselerasi bias nol:
≤ 1 °/H/G
Bandwidth:
≤250Hz
Menyoroti:

Sensor IMU Analog STIM210

,

Sensor IMU Analog RS422

,

Giroskop Mikro Bias Rendah

Deskripsi produk

STIM210 Analog IMU Sensor Micro Gyroscope Kombinasi RS422 IMU Sensor Bias Rendah

1.1.1 Spesifikasi giroskop

  1. Jangkauan pengukuran: ± 400 °/s
  2. Stabilitas bias nol (@ Allan varians): ≤ 1 °/H
  3. Stabilitas bias nol (1s halus, 1σ, suhu kamar): ≤ 10 °/H
  4. Kesalahan bias nol dalam kisaran suhu penuh: ≤ 20 °/H
  5. Perjalanan acak: ≤ 0,2 °/√ H
  6. Kebalikan bias nol: ≤10°/h
  7. Sensitivitas akselerasi bias nol: ≤ 1 °/H/G
  8. Resolusi: ≤ 0,001 °/s
  9. Nonlinearitas faktor skala: ≤ 100ppm
  10. Repeatability of scale factor: ≤ 100ppm
  11. Kopling silang: ≤ 0,1%
  12. Bandwidth: ≤ 250Hz
  13. Berat: (52 ± 5) G

1.1.2 Persyaratan pasokan listrik

  1. Tegangan pasokan: (+ 5 ± 0,5) V (DC);
  2. arus catu daya: arus kerja < 0,3A;

1.1.3 Kemampuan beradaptasi dengan lingkungan

  1. Suhu kerja: (-45 ~ 85) °C
  2. Suhu penyimpanan: (-55 ~ 105) °C
  3. Getaran: 10 ~ 2000Hz, 6,06g
  4. Dampak: 5000 G, 0,1ms

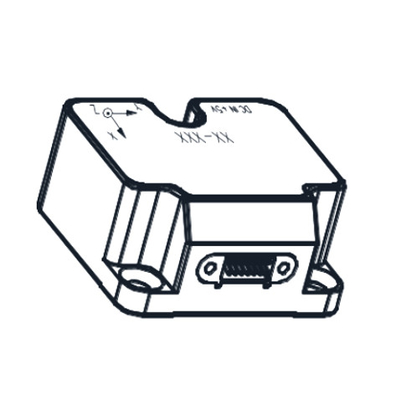

Gambar garis besar dari gyroscope mikro

STIM210 Analog IMU Sensor, RS422 Low Bias Micro Gyroscope 0


Nomor simpul Definisi simpul Jenis Jelaskan
1 GND Penyediaan Power ground (((4)
2 ExtTrig Input Sumber Pemicu Eksternal (3)
3 VSUP Penyediaan Positif akhir catu daya produk, catu daya DC diatur + 5V
4 TxD+ Output Produk RS422 output antarmuka terminal positif
5 TXD- Output Produk RS422 output interface terminal negatif
6 Chassis Chassis Produk yang terisolasi secara mekanis dari tanah tenaga
7 GND Input Tanah Sinyal ((4)
8 NRST Input Sinyal reset ((2)
9 RxD- Input Terminal negatif antarmuka penerima RS422 produk
10 RxD+ Input Terminal positif antarmuka penerima RS422 produk
