High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems

Name: High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG091-H
Price: 1,500.00 USD
Availability: InStock

Nama merek:	WNRLN
Nomor Model:	MFOG091-H
Moq:	1 buah
harga:	USD 1200-1800 / Piece
Ketentuan Pembayaran:	T/T, L/C, PayPal, Serikat Barat
Kemampuan Penyediaan:	300 buah per bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO 9001:2015, CE, RoHS

Tipe Gyro:

KABUT Loop Tertutup Presisi Tinggi

Jumlah Sumbu:

1 sumbu

Stabilitas bias:

0,008 derajat/jam (1 sigma)

Pengulangan Bias:

0,008 derajat/jam (1 sigma)

Nonlinier faktor skala:

≤ 30 ppm

Rentang Pengukuran:

± 300 derajat/detik

Jalan acak:

0,001 derajat/√h

Bandwidth:

≥ 200Hz

Suhu Operasional:

-40°C hingga +70°C

Antarmuka:

RS422

Catu Daya:

±5V DC

Konsumsi Daya:

≤ 4.5W

Berat:

≤ 380g

Ukuran:

Φ55mm x 38mm

Suhu Penyimpanan:

-55°C hingga +85°C

MTBF:

≥ 60.000 jam

Kemasan rincian:

Casing pelindung bermerek WNRLN dengan sisipan busa tahan guncangan, karton bergelombang tingkat eks

Menyediakan kemampuan:

300 buah per bulan

Menyoroti:

0.008 Degree per Hour Bias Fiber Optic Gyro

High Precision Closed Loop Navigation Sensor Module

Tactical Navigation Systems Tactical Grade Gyro

Deskripsi produk

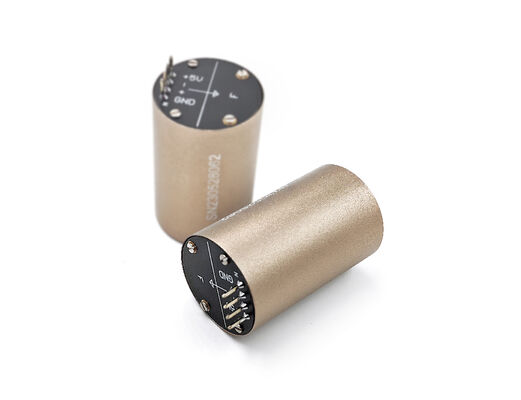

High Precision Fiber Optic Gyro MFOG091-H

The MFOG091-H is the high precision variant featuring 0.008 deg/h bias stability achieved through upgraded optical coil winding and advanced digital signal processing. Purpose-built for tactical navigation systems requiring superior drift performance.

Key Features

Enhanced Bias Stability: 0.008 deg/h (1 sigma) with premium optical coil and precision electronics.
Improved Scale Factor: Nonlinearity ≤ 30 ppm for high-accuracy angular measurement.
Low Random Walk: 0.001 deg/√h minimizes short-term angle integration errors.
Extended MTBF: ≥ 60,000 hours with selected components for mission-critical reliability.
Temperature Compensated: Full-range calibration from -40°C to +70°C.

Applications

Tactical Inertial Navigation Systems (INS)
Stabilized Electro-Optical Payloads
Missile Mid-Course Guidance
Precision Geodetic Survey Equipment
Autonomous Underwater Vehicle Navigation

Contact our engineering team for detailed performance data and customization options.
