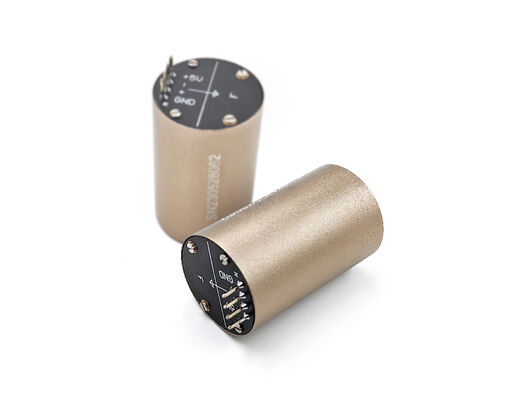

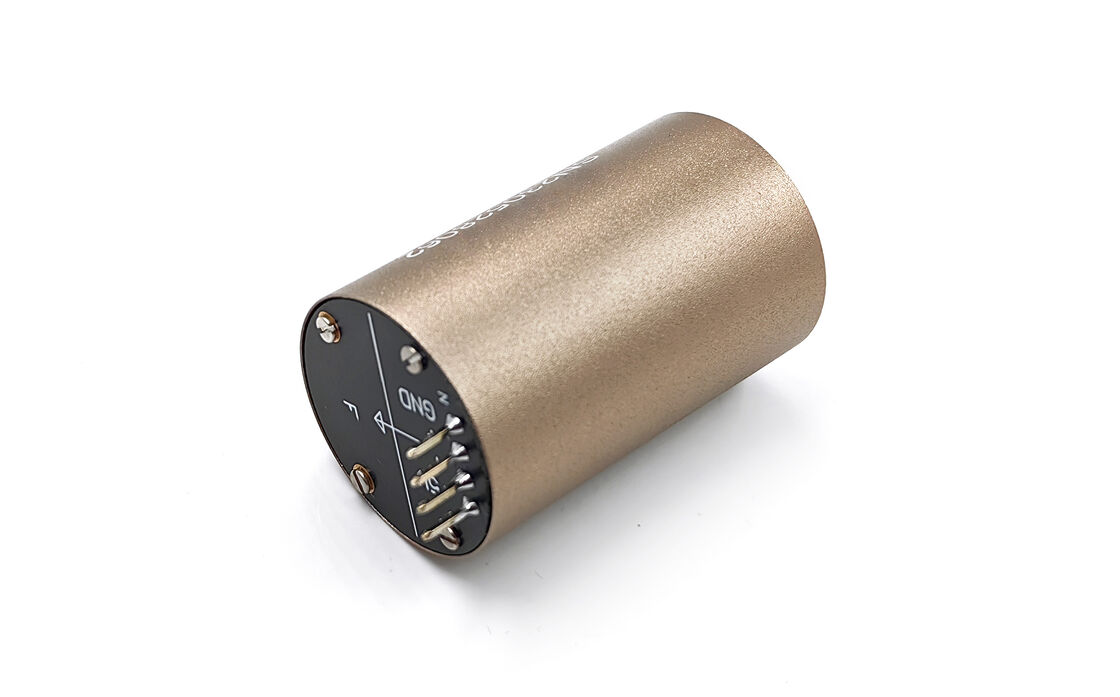

High-Stability Fiber Optic Gyro Sensor for Marine Application Fizoptika Vg191ad

Name: High-Stability Fiber Optic Gyro Sensor for Marine Application Fizoptika Vg191ad
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Tingkat Sudut Maksimum:

±500°/dtk

Stabilitas bias:

≤2 °/jam

Repatibilitas bias nol:

≤2 °/jam

Koefisien Jalan Acak:

≤0,04°/√jam

Tegangan suplai:

+5V

Jenis keluaran:

Analog

lebar pita:

≥300Hz

Dimensi:

φ24x39mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Product Overview

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor integrating optics, mechanics, and electronics. Leveraging the Sagnac effect, it detects angular rotation by processing the phase difference of counter-propagating light beams. Compact, lightweight, and with no moving parts, the MFOG-24 ensures fast startup and long-term reliability.

Technical Specifications

MFOG-24 vs MFOG-24-AN vs Fizoptika VG191AD — Complete Parameter Comparison

Parameter	Unit	MFOG-24	MFOG-24-AN	Fizoptika VG191AD
Measurement Range	°/s	±500	±300	300
Scale Factor	LSB/°/s or mV/°/s	3600 LSB/°/s	7 mV/°/s	0.02 % RMS
Scale Factor Nonlinearity	ppm	300	≤1000	N/A
Zero-Bias Stability (10s, 1σ)	°/h	≤1.5	≤2	1 (Allan variance min)
Zero-Bias Repeatability (1σ)	°/h	≤1.5	≤2	N/A
Angular Random Walk (ARW)	°/√h	≤0.03	≤0.04	0.012
Bandwidth (3dB)	Hz / kHz	≥300 Hz	≥450 Hz	0.6 kHz
Magnetic Response	°/h/Gauss	N/A	N/A	3 / 0.05 typical
Initialization	s	Fast	Fast	0.03
Power Supply	V	5 ±0.15	5 ±0.15	+5V
Power Consumption	W	≤1.5	≤0.7	0.5
Data Rate	kHz	N/A	N/A	8 (24-bit)
Baud Rate	kBd	N/A	N/A	921.6, RS422 asynchronous
Operating Temperature	°C	-40~+65	-40~+65	-40…+70
Endurance / Storage Temperature	°C	-55~+85	-55~+85	-55…+85 (>2h, non-operating)
Random Vibration	g	20, 20–2000 Hz	20 g	18 g, 20–2000 Hz RMS
Shocks	g	N/A	N/A	750 g, 1 ms half-sine
Dimensions	mm	φ24 × 39	φ24 × 39	φ24 × 48
Weight	g	≤30	≤30	30 / 45
Housing	—	Structural + Optical + Electronics	Structural + Optical + Electronics	Al alloy / μ-metal, IP67
MTBF / Lifetime	yr	N/A	N/A	15 (humidity conditions applied)
Moving Parts	—	None	None	None
Start-up	—	Fast	Fast	0.03 s
Applications	—	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement
Replacement	—	Fizoptika VG191AD compatible	Fizoptika VG191AD compatible	N/A

Applications

Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.

Electrical interface

Number	Definition
1	5V
2	Analog output Low
3	Analog Output High
4	GND
