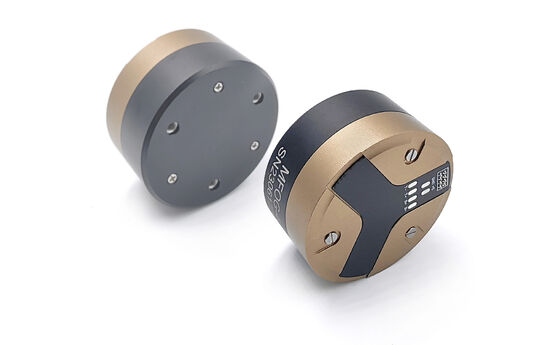

Advanced Fiber Optic Gyroscope for Navigation & Control Systems

Name: Advanced Fiber Optic Gyroscope for Navigation & Control Systems
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Tingkat Sudut Maksimum:

±300°/dtk

Stabilitas bias:

≤0,8°/jam

Koefisien jalan acak:

≤ 0,02°/√h

Tegangan Pasokan:

+5V

Bandwidth:

≥300Hz

Dimensi:

φ40x20mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Advanced Fiber Optic Gyroscope for Navigation & Control Systems

Competitive Comparison: MFOG-40 vs Fizoptika VG1703

Parameter	MFOG-40	Fizoptika VG1703
Measurement Range	± 300°/s	±130°/s / ±150°/s / ±300°/s
Zero Bias Stability	≤ 0.8°/h	≤1°/h
Angular Random Walk	≤ 0.02°/√h	0.008-0.02°/√h
Bias Repeatability	≤ 0.8°/h	≤1°/h
Scale Factor Nonlinearity	≤500 ppm	≤500 ppm
Bandwidth	≥300 Hz	up to 1 kHz
Power Consumption	≤1.5W	0.25-0.5W
Size	φ40*20 mm	φ40*12-19 mm
Weight	≤40g	18-35g
Operating Temp	-40 ~ +70°C	-40 ~ +70°C
Vibration	20g	up to 30g

Product Overview

Engineered with advanced Sagnac interferometry, the MFOG-40 delivers precise rotational sensing with zero-bias stability ≤0.8°/h. Its rugged structure and wide operating temperature (-40°C to +70°C) make it suitable for demanding applications.

Technical Specifications

Parameter	Specification
Measurement Range	±300°/s
Scale Factor	3600 LSB/(°/s)
Scale Factor Nonlinearity	≤500 ppm
Zero Bias Stability (10s, 1σ)	≤0.8°/h
Zero Bias Repeatability	≤0.8°/h
Angular Random Walk	≤0.02°/√h
Bias Stability (Full Temp)	≤1.5°/h
Bandwidth	≥300 Hz
Power Supply	5V ±0.15V
Power Consumption	≤1.5W

Applications

Inertial Navigation Systems (INS)
UAV Flight Control & Stabilization
Robotics & Autonomous Systems
Antenna Stabilization Platforms
Industrial Motion Control
Marine & Land Navigation
Electro-Optical Tracking Systems
