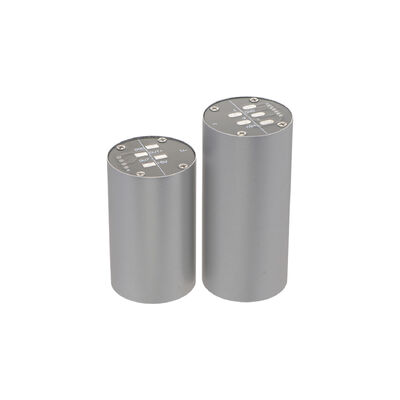

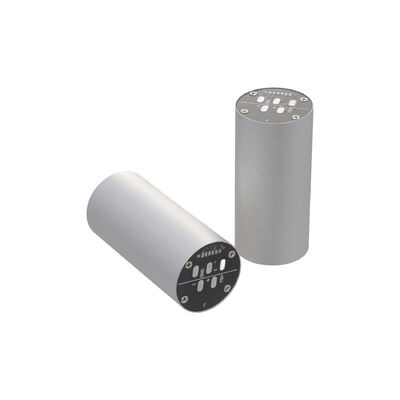

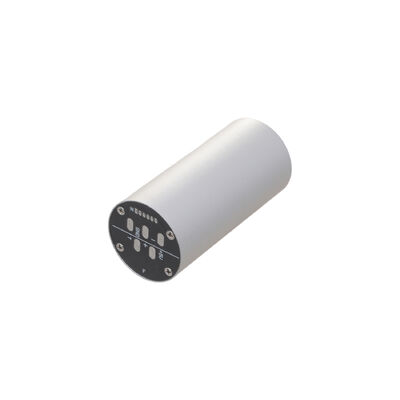

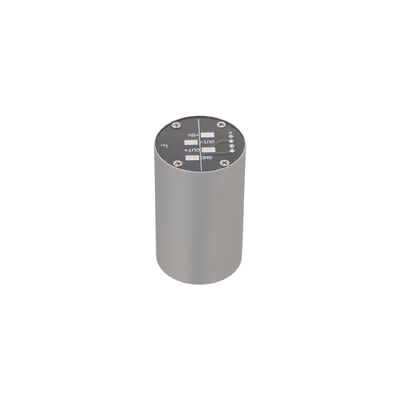

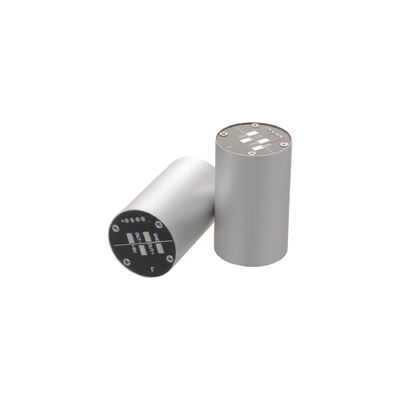

Compact Ø24mm Fiber Optic Gyroscope Angular Rate Sensor for Stabilized Platform

Name: Compact Ø24mm Fiber Optic Gyroscope Angular Rate Sensor for Stabilized Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

compact fiber optic gyroscope sensor

24mm angular rate sensor

stabilized platform gyroscope

Deskripsi produk

Compact Ø24mm Fiber Optic Gyroscope Angular Rate Sensor for Stabilized Platform

MFOG-24 Micro-Nano Fiber Optic Gyroscope

The MFOG-24 is a compact high-performance angular rate sensor based on the Sagnac effect. This advanced sensor integrates optical, mechanical, and electronic systems to detect rotational motion by processing phase differences between counter-propagating light beams.

With no moving parts, fast startup capability, and excellent environmental resistance, this fiber optic gyroscope is ideal for modern navigation platforms requiring high reliability and precision performance.

Key Features

Compact Ø24mm diameter design
No moving parts for enhanced reliability
Fast startup capability
Excellent environmental resistance
High-performance angular rate sensing
Ideal for stabilized navigation platforms

Technical Performance Specifications

Serial No.	Performance Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5±0.15	5±0.15
10	Power Consumption (W)	≤1.5	≤0.7

Dimensions: φ24 × 39 mm
