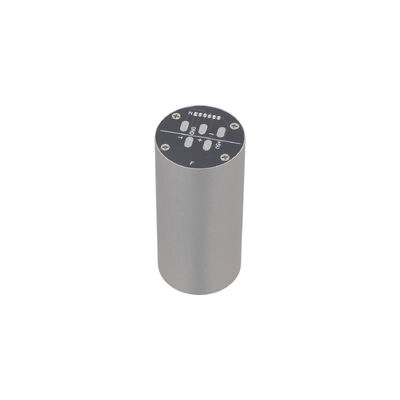

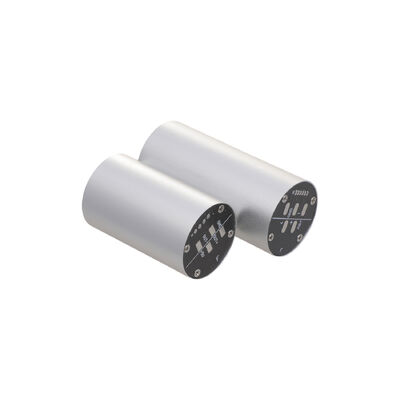

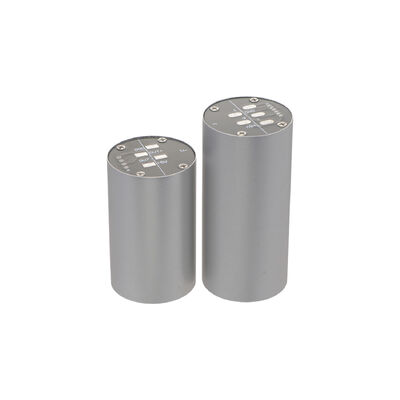

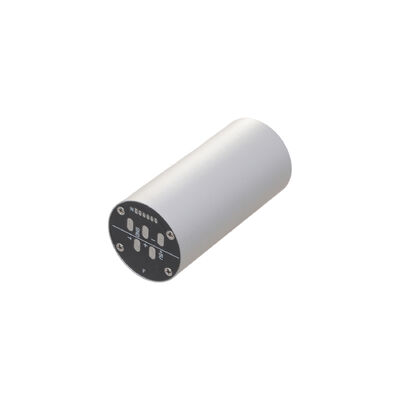

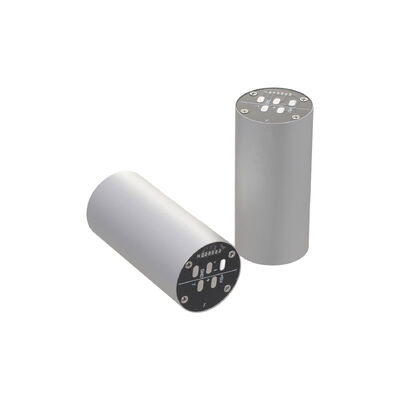

Fizoptika VG191AD High-Accuracy Fiber Optic Gyroscope with Low Bias Drift

Name: Fizoptika VG191AD High-Accuracy Fiber Optic Gyroscope with Low Bias Drift
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fizoptika VG191AD fiber optic gyroscope

high-accuracy fiber optic gyro

low bias drift gyroscope

Deskripsi produk

Fizoptika VG191AD High-Accuracy Fiber Optic Gyroscope with Low Bias Drift

Product Overview

The MFOG-24 Micro FOG is engineered for precision navigation and control applications, delivering exceptional performance in demanding operational environments.

Key Features & Benefits

High sensitivity angular rate detection for precise motion tracking
Compact design optimized for space-constrained systems and installations
Reliable operation in harsh environments with vibration resistance up to 20 g random vibration
Advanced optical sensing technology ensures stable performance

Typical Applications

Ideal for AGV navigation systems, robotics platforms, unmanned vehicles, and autonomous control systems requiring high-accuracy orientation data.

Technical Specifications

Parameter	MFOG-24	MFOG-24-AN
Range (°/s)	±500	±300
Scale Factor	3600 (LSB/°/s)	7 mV/°/s
Scale Factor Nonlinearity (ppm)	300	≤1000
Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
Angular Random Walk (°/h)^1/2	≤0.03	≤0.04
Zero Bias (°/s)	≤0.02	≤0.05
3dB Bandwidth (Hz)	≥300	≥450
Power Supply (V)	5±0.15	5±0.15
Power Consumption (W)	≤1.5	≤0.7
Dimensions (mm)	φ24 × 39
