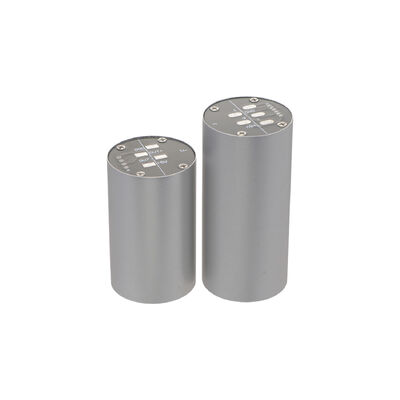

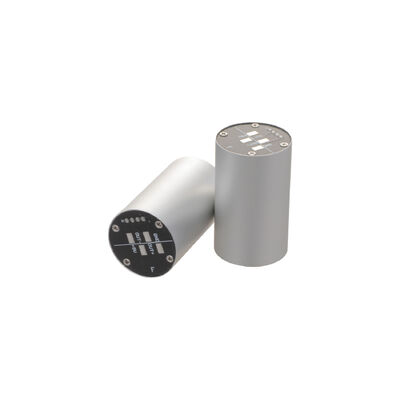

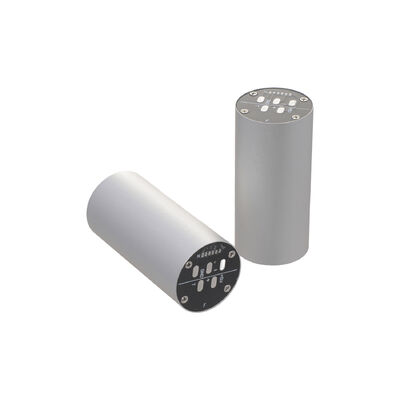

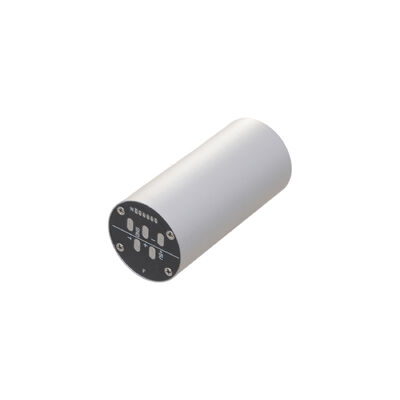

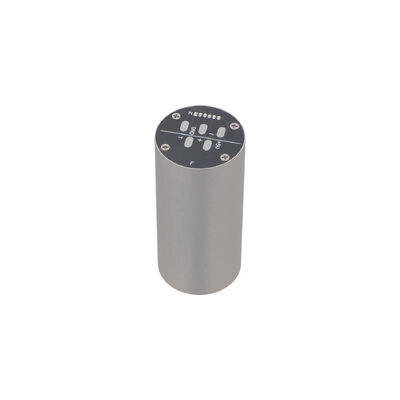

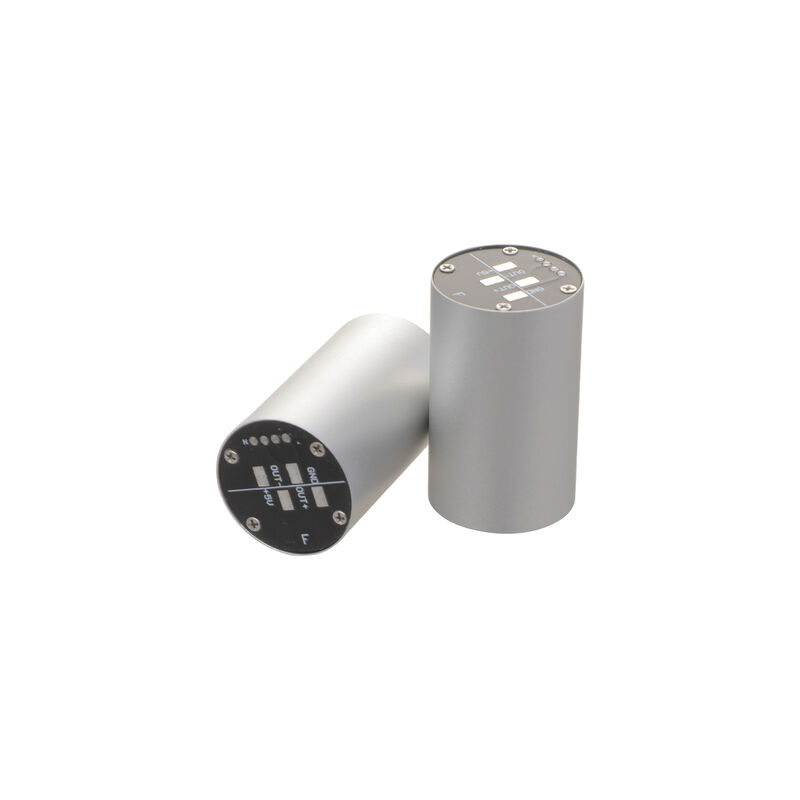

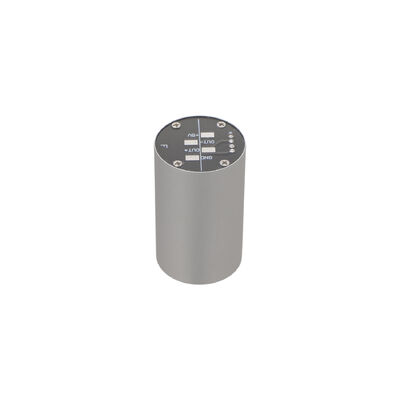

Industrial Fiber Optic Gyroscope with Precision Angular Rate Output for Gimbal

Name: Industrial Fiber Optic Gyroscope with Precision Angular Rate Output for Gimbal
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Industrial fiber optic gyroscope

Precision angular rate gyroscope

Fiber optic gyro for gimbal

Deskripsi produk

Industrial Fiber Optic Gyroscope with Precision Angular Rate Output

The MFOG-24 angular rate sensor delivers precise rotation measurement for navigation, stabilization, and attitude control systems. This advanced fiber optic gyroscope is engineered for demanding industrial applications requiring exceptional accuracy and reliability.

Integrated System Design

Optical path assembly for superior signal integrity
Detection and control circuit board for precise measurement
Mechanical housing and fiber coil structure for durability

This integrated design provides high reliability, low noise, and long service life for advanced inertial systems in challenging operational environments.

Technical Performance Specifications

Parameter	MFOG-24	MFOG-24-AN
Range (°/s)	±500	±300
Scale Factor	3600 (LSB/°/s)	7 mV/°/s
Scale Factor Nonlinearity (ppm)	300	≤1000
Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
Zero Bias (°/s)	≤0.02	≤0.05
3dB Bandwidth (Hz)	≥300	≥450
Power Supply (V)	5±0.15	5±0.15
Power Consumption (W)	≤1.5	≤0.7
Dimensions (mm)	φ24 × 39

All specifications subject to standard operating conditions and may vary with environmental factors.
