Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation

Name: Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Compact FOG with 24mm sensor

Fiber optic gyro for navigation

VG191AD replacement gyroscope

Deskripsi produk

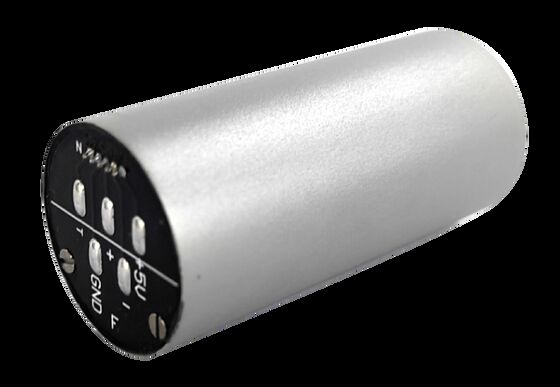

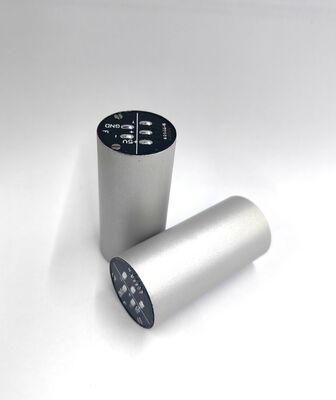

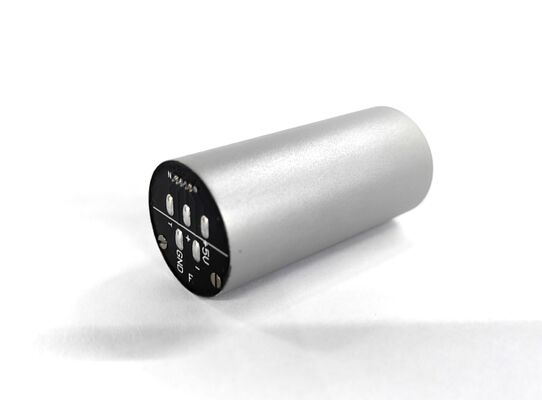

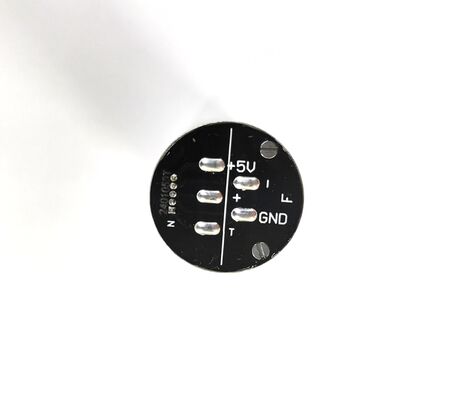

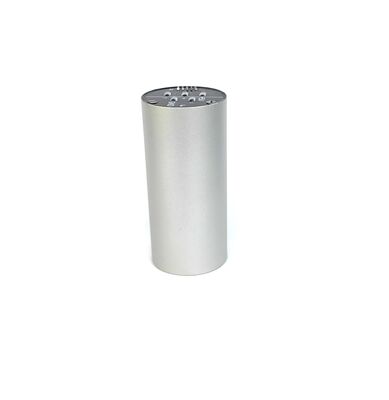

Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation

Product Overview

The MFOG-24 gyroscope module delivers high dynamic response with bandwidth ≥300 Hz, making it ideally suited for stabilization and tracking systems.

Utilizes closed-loop fiber optic sensing architecture for enhanced precision and long-term reliability
Features zero bias repeatability ≤1.5°/h for consistent performance in precision motion systems

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24×39	φ24×39
