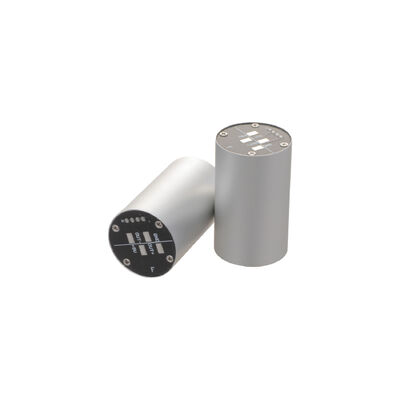

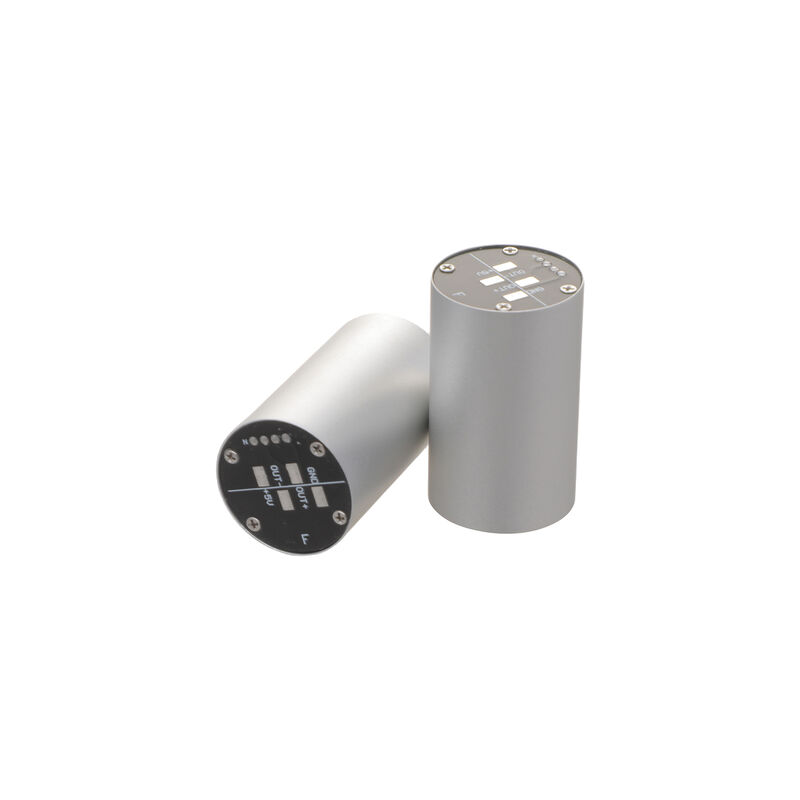

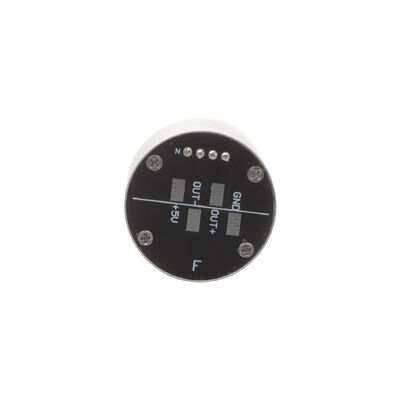

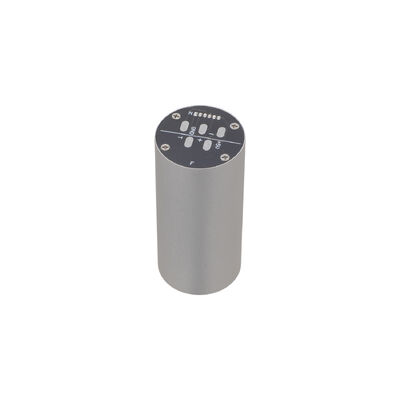

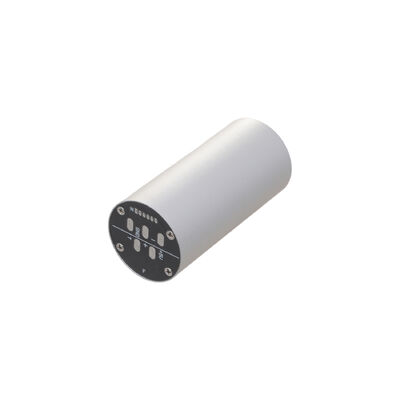

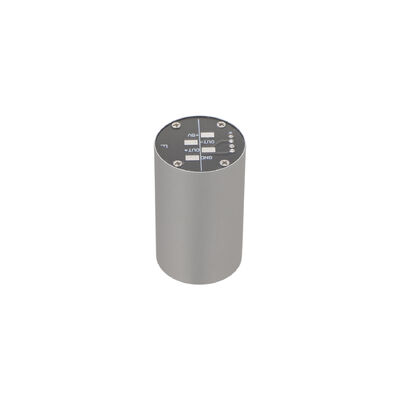

Fizoptika UAV Miniature Fiber Optic Gyroscope Sensor VG191A Angular Rate Sensor

Name: Fizoptika UAV Miniature Fiber Optic Gyroscope Sensor VG191A Angular Rate Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fizoptika UAV fiber optic gyroscope

miniature angular rate sensor

VG191A gyro sensor with warranty

Deskripsi produk

Fizoptika UAV Miniature Fiber Optic Gyroscope Sensor VG191A Angular Rate Sensor

Product Overview

The MFOG-24 micro-nano fiber optic gyroscope is engineered for attitude measurement and flight stabilization in unmanned aerial vehicles. Utilizing the Sagnac Effect, this gyroscope delivers precise rotation sensing with high bandwidth and low noise performance.

Key Advantages

Compact size: Φ 24 * 39 mm
Lightweight design: ≤ 30 g
Low power consumption: ≤ 1.5 W
High vibration resistance: 20 g

These advanced features make the MFOG-24 an optimal solution for compact inertial navigation modules in UAVs and drone applications.

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24 * 39
