Fizoptika VG191AD Fiber Optic Gyroscope Angular Rate Sensor for Navigation & Stabilization

Name: Fizoptika VG191AD Fiber Optic Gyroscope Angular Rate Sensor for Navigation & Stabilization
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fizoptika VG191AD fiber optic gyroscope

fiber optic gyro angular rate sensor

navigation stabilization fiber optic gyro

Deskripsi produk

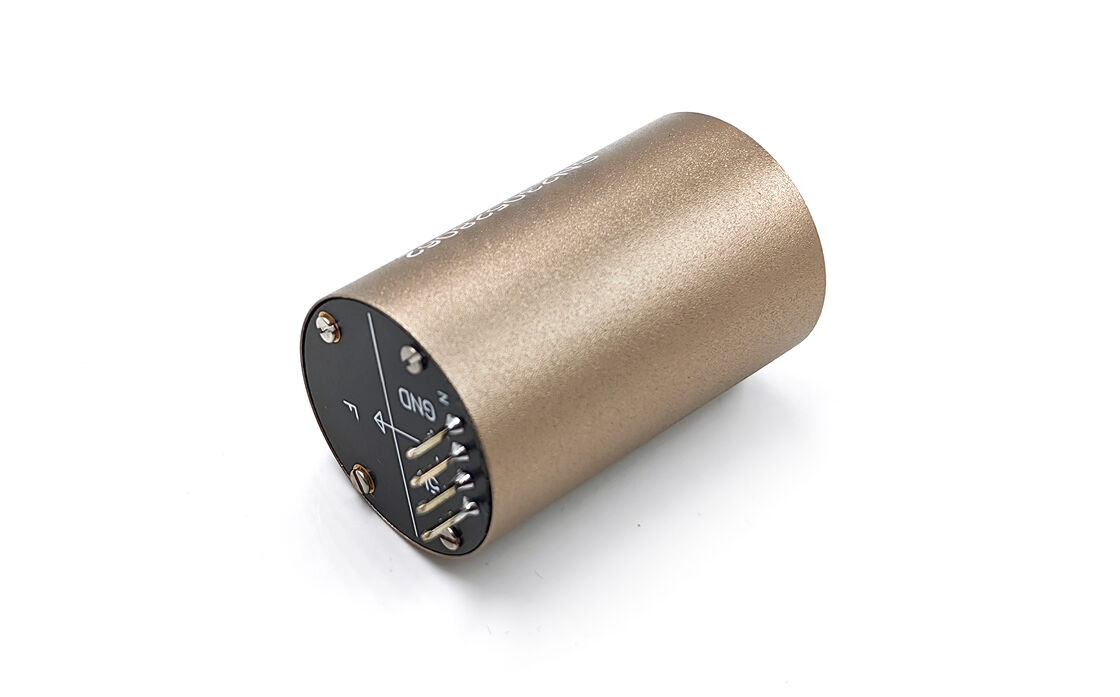

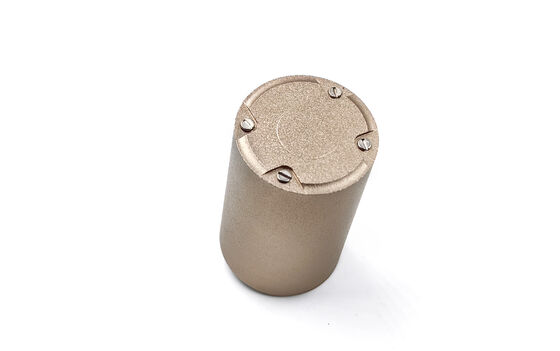

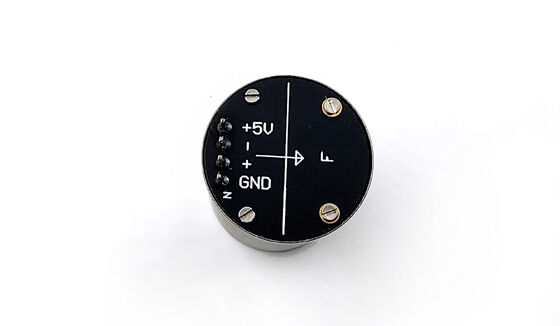

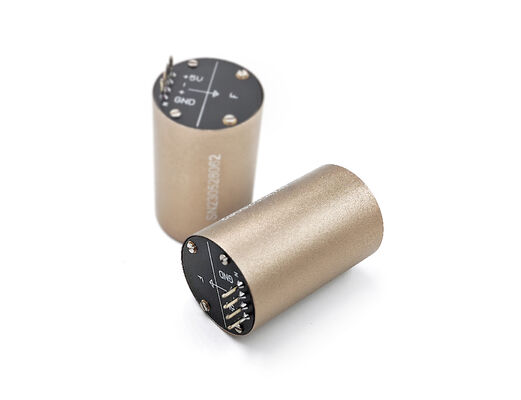

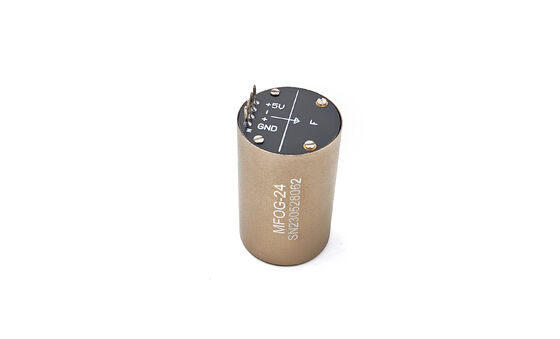

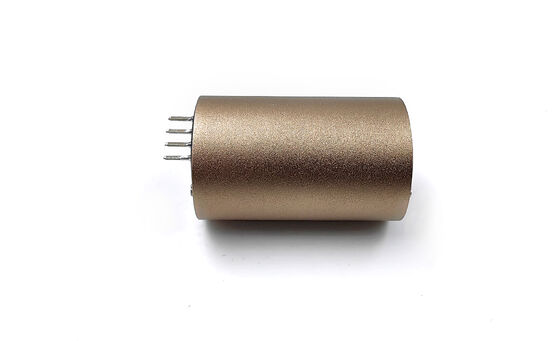

MFOG-24 Micro-Nano Fiber Optic Gyroscope

High-precision angular rate sensor designed for modern inertial navigation and motion control systems. Based on the Sagnac Effect, this device measures rotation by detecting phase differences between counter-propagating light beams in a fiber coil.

Compact Design & Applications

With compact dimensions of Φ 24 * 39 mm and weight of ≤ 30 g, this gyroscope is ideal for:

UAV flight control systems
Robotics and automation
Stabilization platforms
Inertial navigation systems

Key Performance Features

Measurement Range: ±500°/s

Bias Stability: ≤1.5°/h

Bandwidth: ≥300 Hz

Power Consumption: ≤1.5 W

Compatibility & Reliability

Serves as a compact alternative to Fizoptika VG191AD, offering high reliability with no moving parts and low power consumption for extended operation.

Technical Specifications

Parameter	MFOG-24	MFOG-24-AN
Range (°/s)	±500	±300
Scale Factor	3600 (LSB/°/s)	7 mV/°/s
Scale Factor Nonlinearity (ppm)	300	≤1000
Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
Angular Random Walk (°/h¹/²)	≤0.03	≤0.04
Zero Bias (°/s)	≤0.02	≤0.05
3dB Bandwidth (Hz)	≥300	≥450
Power Supply (V)	5±0.15	5±0.15
Power Consumption (W)	≤1.5	≤0.7
Dimension (mm)	φ24*39	φ24*39
