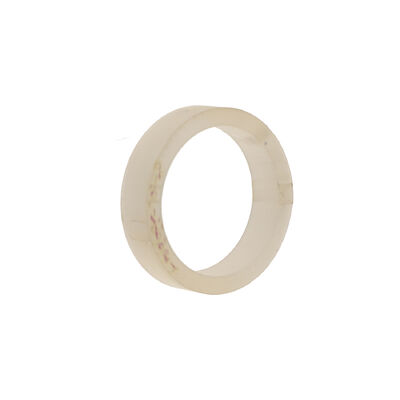

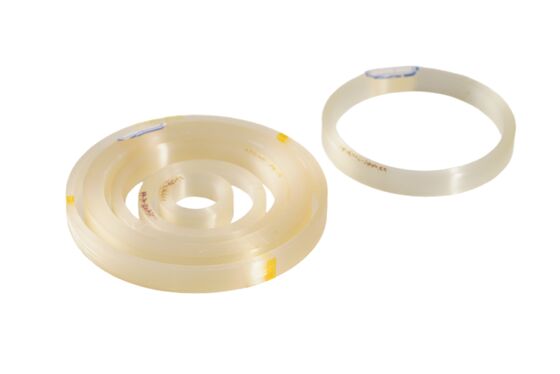

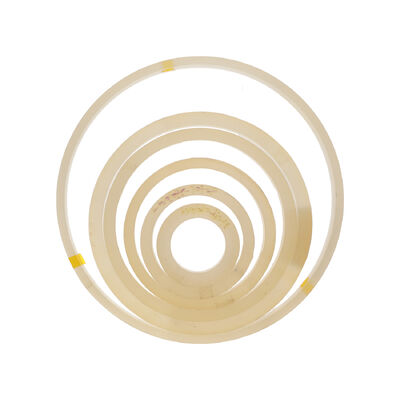

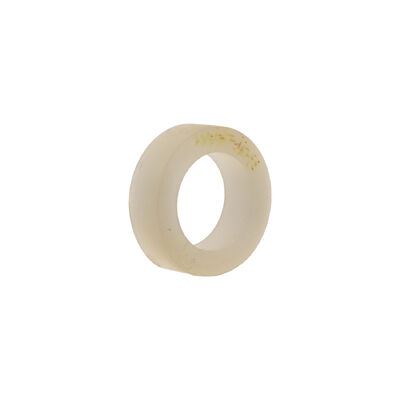

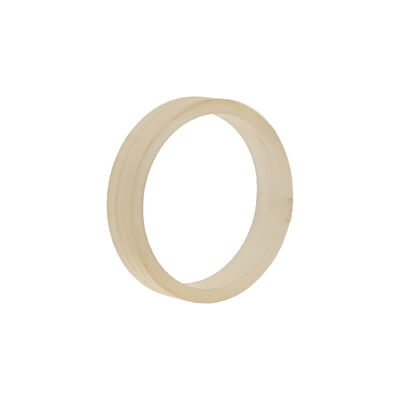

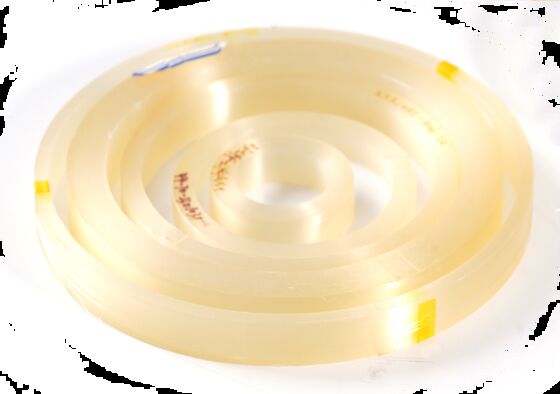

Single Mode F50 Freestanding Optic Fiber Coil 260m for Fiber Optical Gyroscope

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Single Mode F50 fiber optic coil

260m fiber optic gyroscope coil

Freestanding fiber optic gyro coil

Deskripsi produk

Single Mode F50 Freestanding Optic Fiber Coil 260m for Fiber Optical Gyroscope

Our company specializes in professional design and manufacturing of optic fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy assembly, performance, and diverse environmental application needs for φ50 fiber optic gyroscopes.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations.

Product Features

This optic fiber coil model utilizes advanced multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The resulting ring structure demonstrates exceptional temperature stability and vibration resistance, supporting mass production with consistent product quality.

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optic fiber coils. Geometric dimensions, length specifications, and performance parameters can be tailored to meet your specific application requirements.
