Single Mode Fiber Optic Coil for Accurate Signal Detection Factory Supply

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

single mode fiber optic coil

fiber optic gyro signal detection

factory supply fiber optic coil

Deskripsi produk

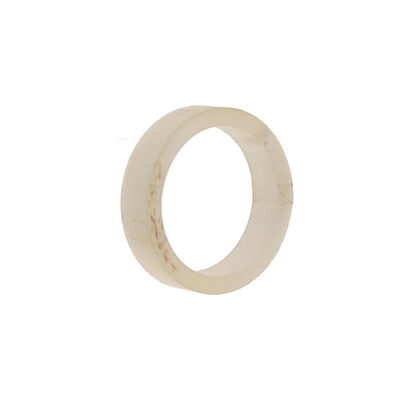

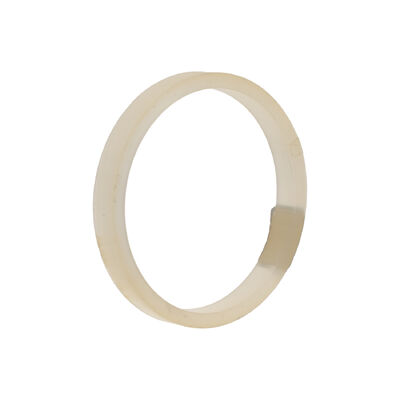

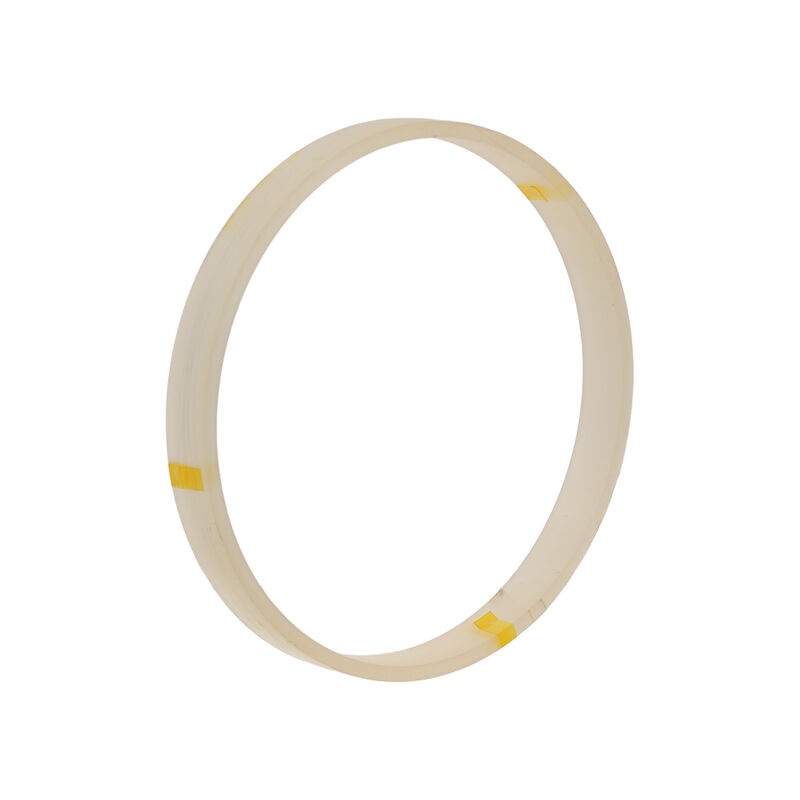

Single Mode Fiber Optic Coil for Accurate Signal Detection

Product Overview

Our company specializes in the professional design and manufacturing of optical fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy the assembly, performance, and environmental requirements of φ50 fiber optic gyroscopes.

Application Areas

Primarily used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil model utilizes a multi-pole symmetric winding method with 135μm thin diameter optical fibers and UV-cured adhesive. The ring demonstrates exceptional temperature and vibration performance, and supports mass production with excellent product consistency.

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

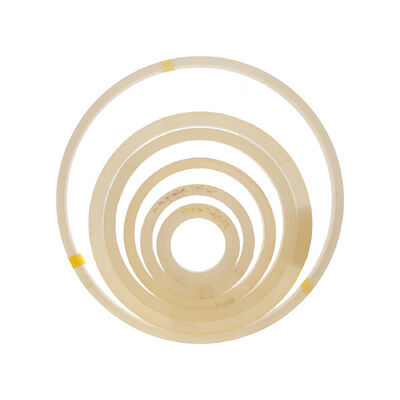

Customization Options

The geometric dimensions, length, and performance specifications of the optical fiber coil can be custom-designed according to your specific application requirements.
