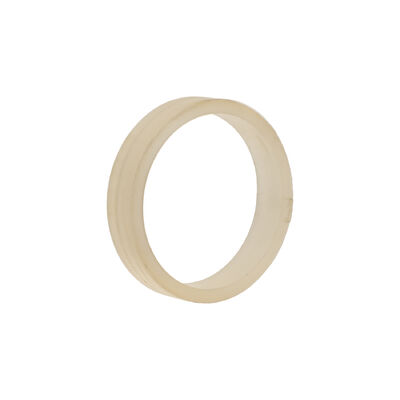

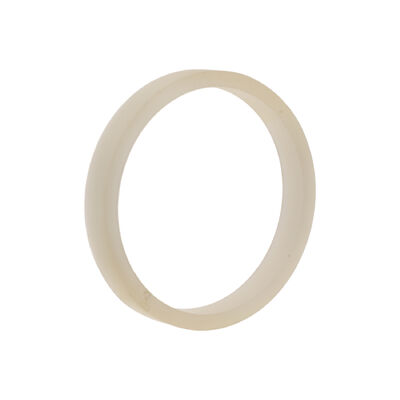

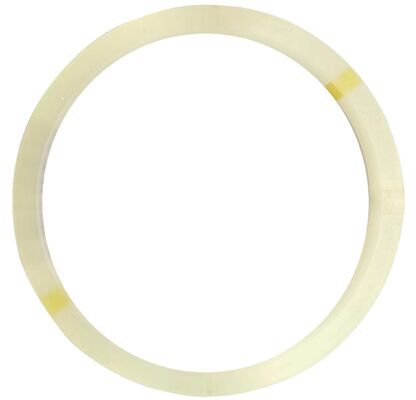

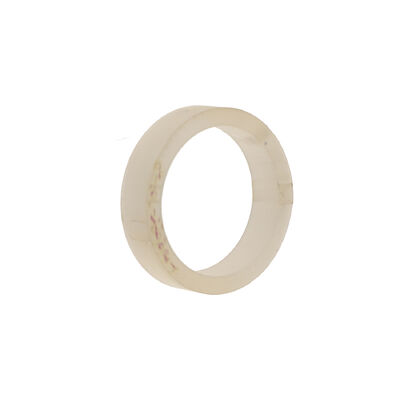

260m Free Standing Fiber Optic Coil Low Shupe Error for FOG System

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

260m fiber optic coil for FOG

low Shupe error fiber optic gyro

free standing fiber optic coil

Deskripsi produk

260m Free Standing Fiber Optic Coil Low Shupe Error for FOG System

Product Overview

Our company specializes in professional design and manufacturing of optical fiber coils to meet customer and market application requirements. The φ50 low-precision fiber optic coil is engineered specifically for φ50 fiber optic gyroscopes, ensuring optimal assembly, performance, and reliability across various application environments.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations.

Product Features

This optical fiber coil utilizes advanced multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The design delivers exceptional temperature and vibration performance while enabling mass production with consistent product quality.

Multi-pole symmetric winding method
135μm thin diameter optical fibers
UV-cured adhesive technology
Excellent temperature and vibration performance
Mass production capability with consistent quality

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optical fiber coils. Geometric dimensions, length, and performance specifications can be tailored to meet your specific application requirements.
