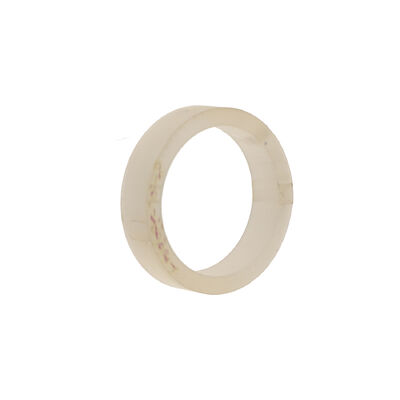

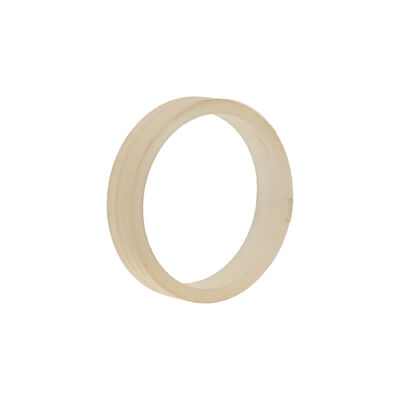

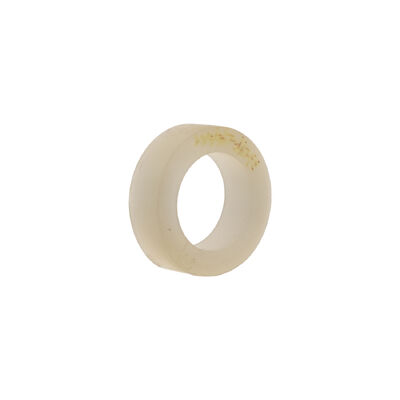

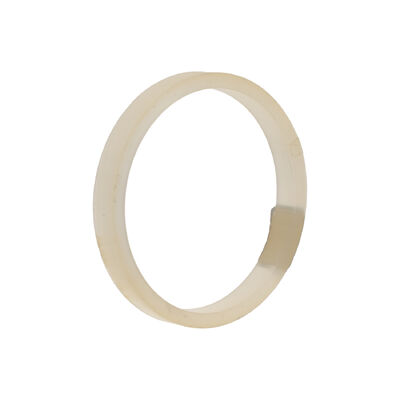

High Symmetry Fiber Optic Coil for 50mm Fiber Optic Gyroscope FOG Sensor

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

50mm fiber optic gyroscope coil

high symmetry FOG sensor coil

fiber optic gyro coil with warranty

Deskripsi produk

High Symmetry Fiber Optic Coil for 50mm Fiber Optic Gyroscope FOG Sensor

With mass production capabilities, this φ 50 fiber optic coil combines low crosstalk and low insertion loss to provide an affordable yet high-performance solution for fiber optic gyroscopes in commercial and industrial applications.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This model of optic fiber coil adopts a multi-pole symmetric winding method and uses 135um thin diameter optical fibers and UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.

Main Performance Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Information

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
