Closed-Loop Fog Standard Freestanding Optical Fiber 50mm Gyro Coil

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Closed-Loop Fiber Optic Gyro

Freestanding Optical Fiber Gyro

50mm Gyro Coil Standard

Deskripsi produk

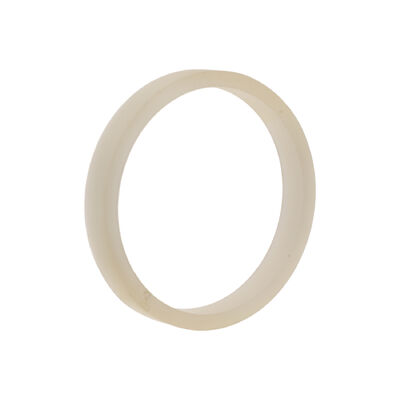

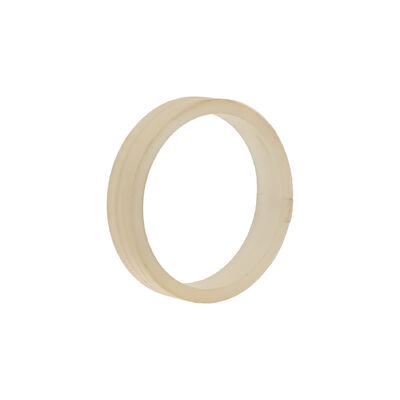

Closed-Loop Fog Standard Freestanding Optical Fiber 50mm Gyro Coil

Manufactured with precision winding and UV-cured adhesives, this φ50 coil ensures high reliability, low signal loss, and vibration resistance. A perfect choice for high-accuracy gyroscope systems used in military and industrial environments.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil adopts a multi-pole symmetric winding method and uses 135μm thin diameter optical fibers with UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

The geometric dimensions, length, and performance of the optical fiber coil can be designed according to customer's application requirements.
