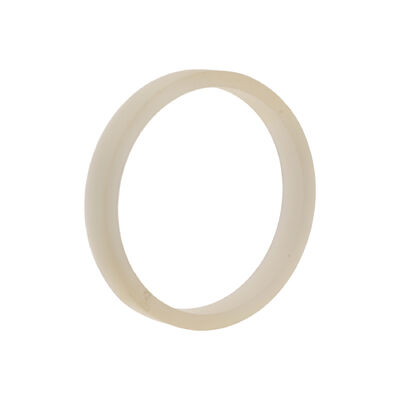

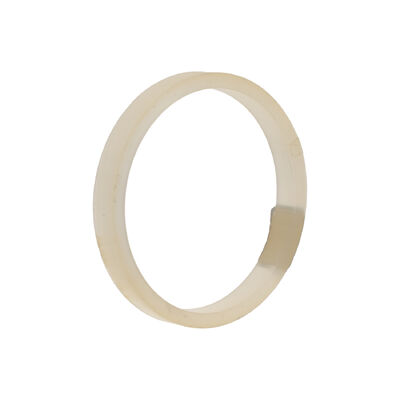

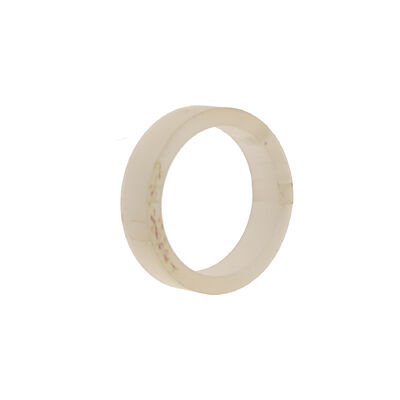

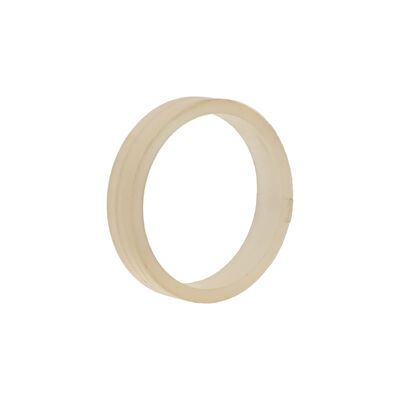

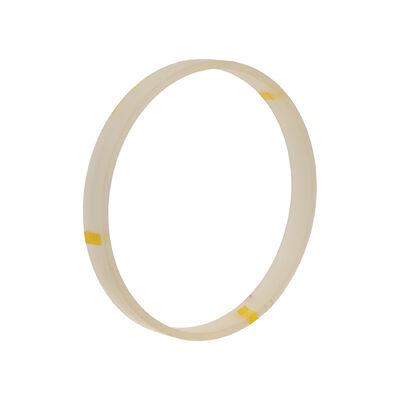

Free Standing PM Fiber Coil F50 for Closed-loop Φ120 Fiber Optic Gyroscope with Quadrupole Winding

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

PM fiber coil F50 gyroscope

closed-loop Φ120 fiber optic gyro

quadrupole winding fiber optic coil

Deskripsi produk

Free Standing PM Fiber Coil F50 for Closed-loop Φ120 Fiber Optic Gyroscope

Our φ50 low-precision (mid-accuracy) fiber coil is engineered specifically for closed-loop FOG systems. Utilizing 135µm thin-diameter fiber technology, this coil delivers superior winding density and exceptional temperature performance. The design minimizes crosstalk and bias drift, ensuring reliable gyroscope heading maintenance under thermal stress conditions.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter requirements.

Product Features

Multi-pole symmetric winding method for optimal performance
135µm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass production capability with consistent product quality
Superior winding density for enhanced system reliability

Technical Specifications

Feature	Unit	Specification
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45 to 80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optic fiber coils. Geometric dimensions, length specifications, and performance parameters can be tailored to meet specific application requirements and system integration needs.
