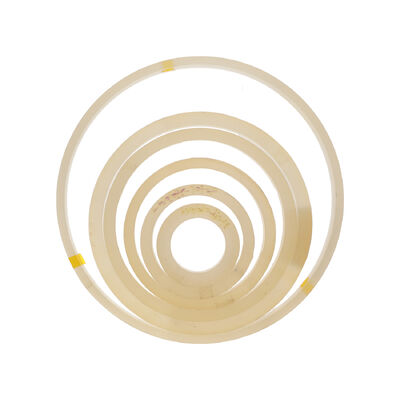

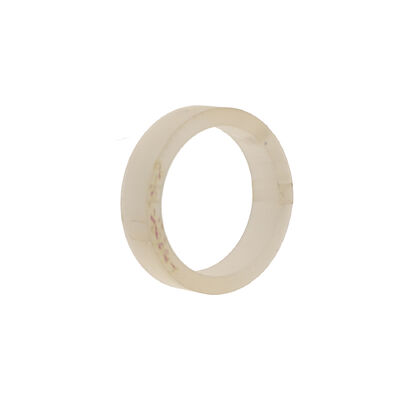

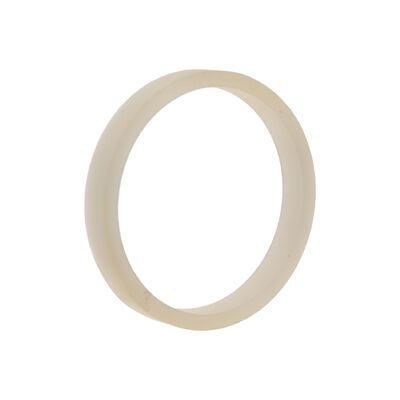

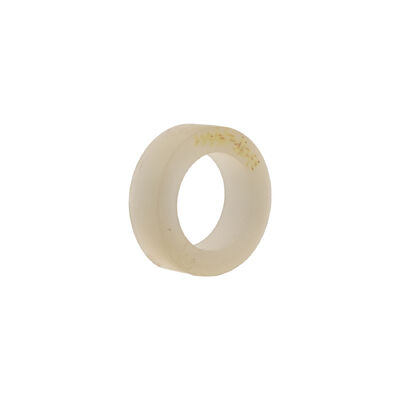

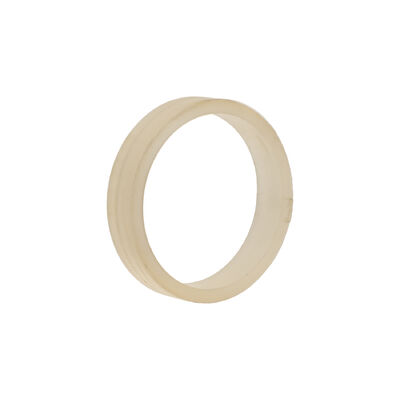

F50 Optical Fibre Coil Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

Nama merek:	Firepower
Nomor Model:	F50 Kumparan serat optik berdiri bebas
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Panjang:

260±5m

Serat optik:

Serat Optik 80/135μm

Lapisan:

Crosstalk:

≤-22dB

Kerugian Penyisipan:

≤0.2dB

Stabilitas Bias Suhu Konstan (Pemulusan 10 detik):

≤0,3°/jam

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

F50 optical fibre coil 50mm

Fiber optic gyro closed-loop coil

Inertial navigation system fiber coil

Deskripsi produk

F50 Optical Fibre Coil Closed-Loop 50mm

Specialized φ 50 low-precision fiber optic coil engineered for closed-loop fiber optic gyroscopes with advanced manufacturing techniques.

Product Overview

Our φ 50 low-precision fiber optic coil features multi-pole symmetric winding technology, delivering superior temperature stability, minimal insertion loss, and exceptional vibration resistance for demanding inertial navigation applications.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations in inertial navigation systems.

Key Features

Multi-pole symmetric winding method for optimal performance
135μm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass production capability with consistent product quality
Superior thermal stability and minimal signal loss

Technical Specifications

Feature	Unit	Specification
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45 to 80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services. Geometric dimensions, fiber length, and performance parameters can be tailored to meet your specific application requirements and system integration needs.
