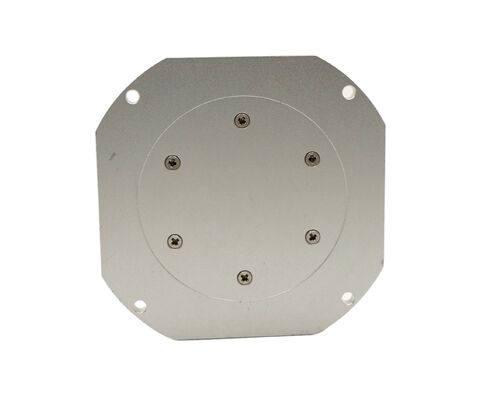

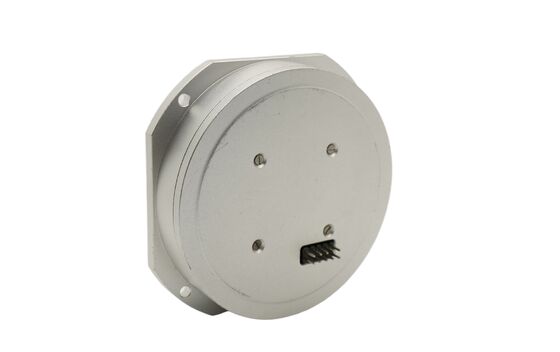

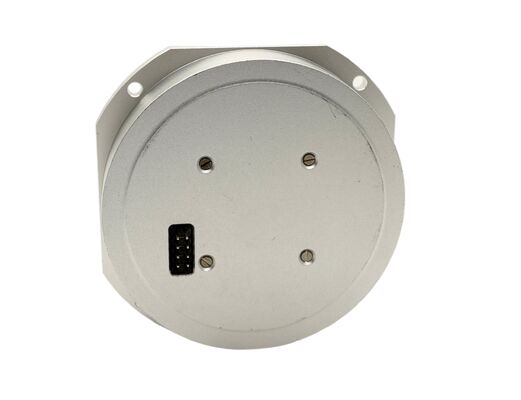

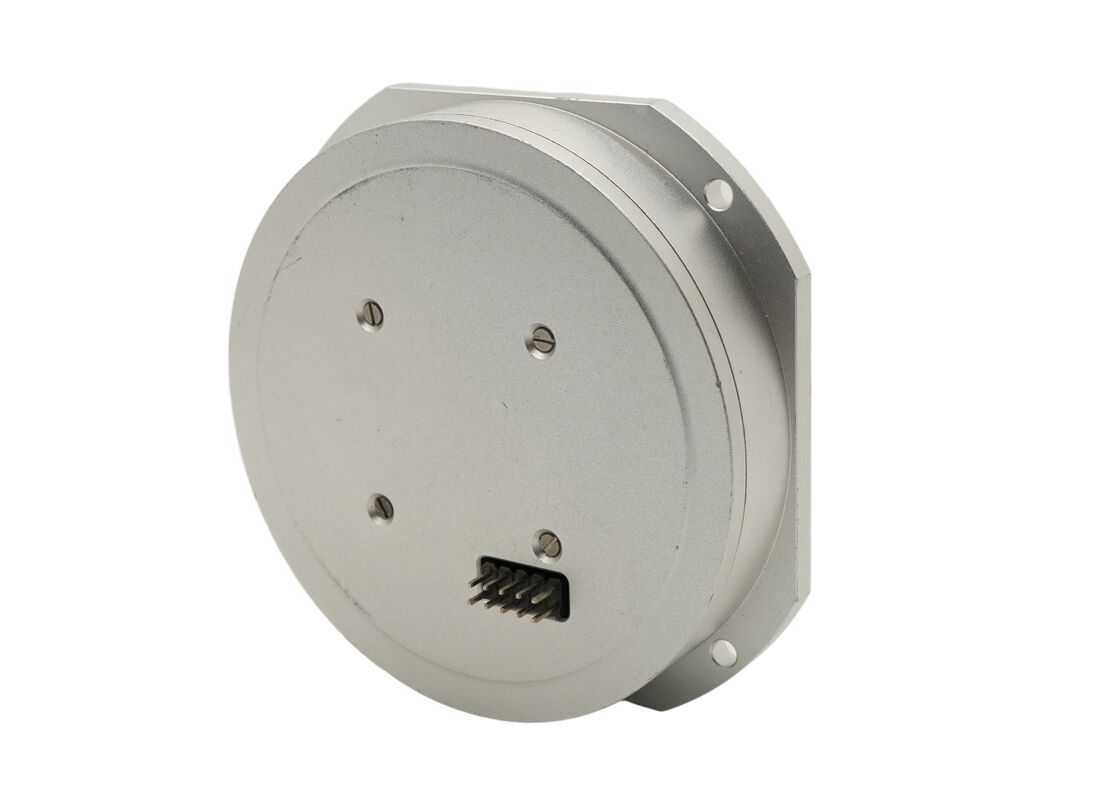

Inertial Grade FOG Sensor Fizoptika Vg910 Gyroscope Angular Rate Sensor

Name: Inertial Grade FOG Sensor Fizoptika Vg910 Gyroscope Angular Rate Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Tingkat Sudut Maksimum:

±240°/dtk

Stabilitas bias:

≤0,8°/jam

Repatibilitas bias nol:

≤0,8°/jam

Koefisien Jalan Acak:

≤ 0,02°/√h

Tegangan Pasokan:

+5V

Jenis keluaran:

Analog

lebar pita:

≥1000Hz

Dimensi:

82mm × 82mm × 19.5mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fizoptika Vg910 fiber optic gyro

inertial grade FOG sensor

angular rate sensor gyroscope

Deskripsi produk

Inertial Grade FOG Sensor Fizoptika Vg910 Gyroscope Angular Rate Sensor

The MFOG-910 micro-nano fiber optic gyroscope is an integrated opto-mechatronic angular rate sensor based on the Sagnac effect. It incorporates multiple micro-nano fiber devices and features fast start-up speed, compact size, lightweight construction, and excellent environmental adaptability. This makes it ideal for unmanned ground vehicle (UGV) attitude control and navigation, ensuring stable operation in complex terrain conditions.

Comprising optical path components, circuit components, and structural elements, this gyroscope offers a simple structure with no moving parts or wear components. Its fast startup, small footprint, and light weight make it suitable for precise attitude control and measurement applications.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell, and other structural components

Technical Specifications

Parameter	Performance Specification
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25±12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years, calculated assessment)	≥15
MTBF (Calculated Assessment)	≥100000

Outline Drawing
