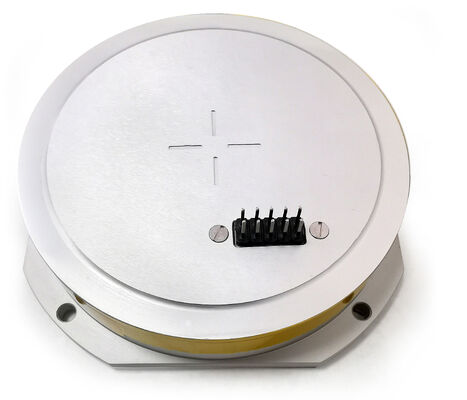

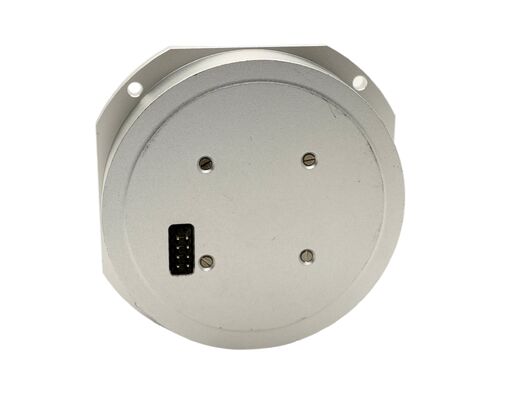

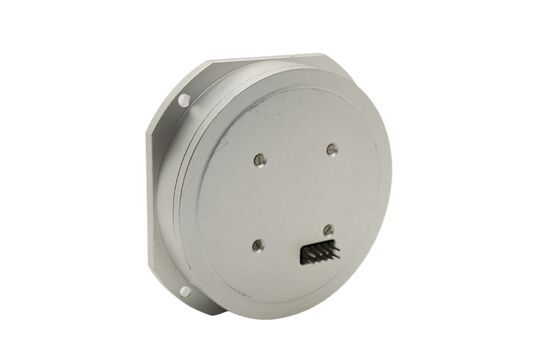

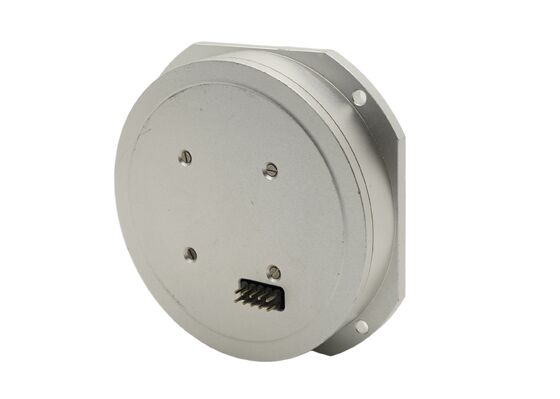

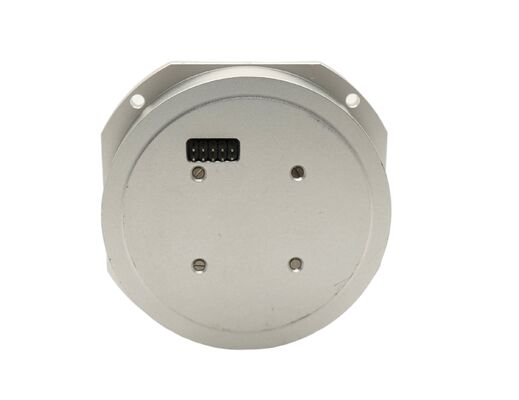

UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone

Name: UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Tingkat Sudut Maksimum:

±240°/dtk

Stabilitas bias:

≤0,8°/jam

Repatibilitas bias nol:

≤0,8°/jam

Koefisien Jalan Acak:

≤ 0,02°/√h

Tegangan Pasokan:

+5V

Jenis keluaran:

Analog

lebar pita:

≥1000Hz

Dimensi:

82mm × 82mm × 19.5mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fiber Optic Gyroscope for UAV

Drone precision stabilization gyroscope

Fizoptika VG910 navigation gyro

Deskripsi produk

UAV Fiber Optic Gyroscope Fizoptika Vg910

The MFOG-910 micro-nano fiber optic gyroscope is an opto-mechatronic integrated angular rate sensor engineered for precision attitude control and navigation in drone applications.

Product Overview

This advanced gyroscope features a scale factor of 47±5 mV/°/s, scale factor nonlinearity ≤1000 ppm, and 3dB bandwidth ≥1000Hz, making it ideal for precision instrument attitude measurement. With its compact dimensions (82mm*82mm*19.5mm) and lightweight design (≤150g), it can be easily integrated into small-sized precision equipment.

Key Features

Simple structure with no moving parts
No wear components for enhanced reliability
Fast startup time
Compact size and lightweight design
Suitable for carrier attitude control and measurement

Product Composition

The MFOG-910 consists of three main components:

Optical path assembly
Detection and control signal circuit board
Fiber optic ring skeleton, housing, and structural components

Technical Specifications

Parameter	Specification
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-bias Stability (10s, 1σ, °/H)	≤0.8
Zero-bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25±12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF	≥100,000

Outline Drawing
