Fiber Optic Gyro Inertial Measurement Units for Stabilization Platform

Name: Fiber Optic Gyro Inertial Measurement Units for Stabilization Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Rentang Pengukuran:

±240°/dtk

Pengulangan Bias:

≤0,8°/jam

stabilitas bias nol:

≤0,8°/jam

Dimensi Keseluruhan:

82mm × 82mm × 19.5mm

Faktor skala nolinearity:

≤1000Ppm

Tegangan Keluaran:

Konsumsi:

≤1,5W

Berat:

≤150g

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fiber optic gyro stabilization platform

Inertial measurement unit for stabilization

Fiber optic gyro IMU

Deskripsi produk

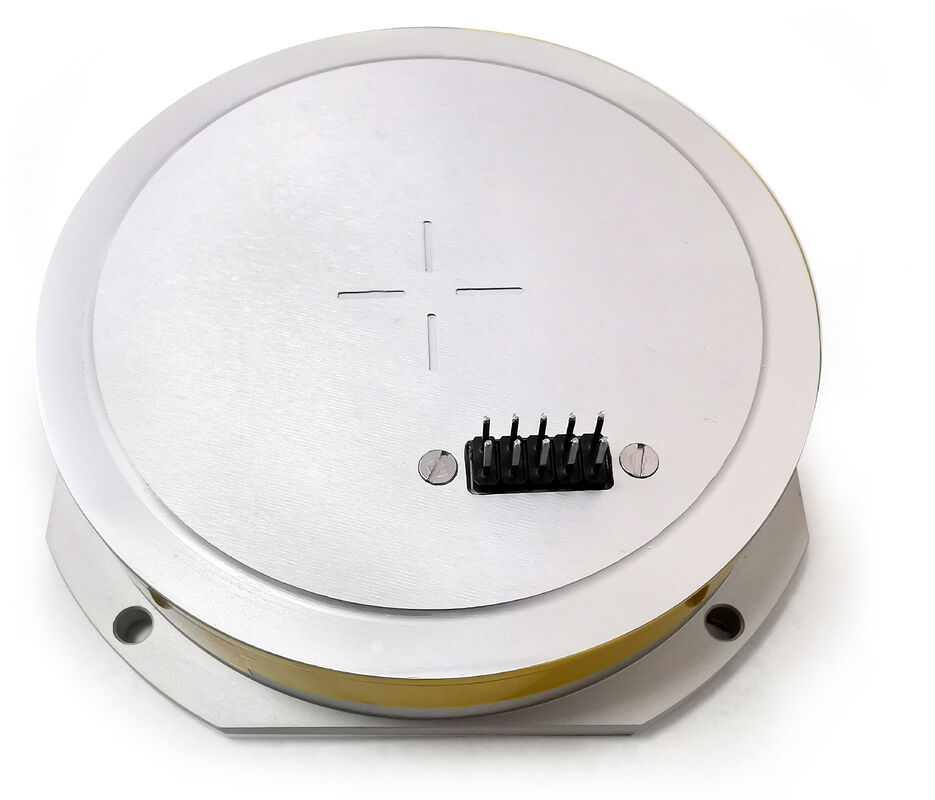

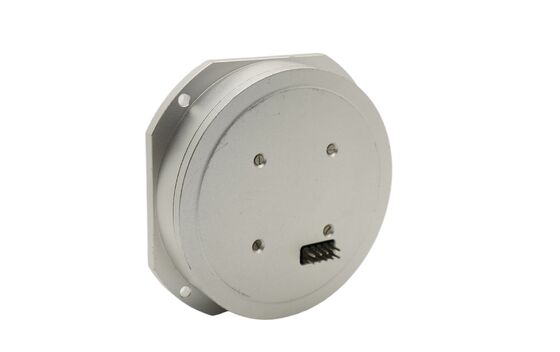

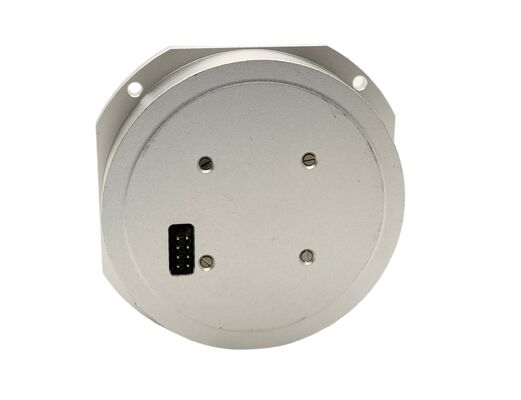

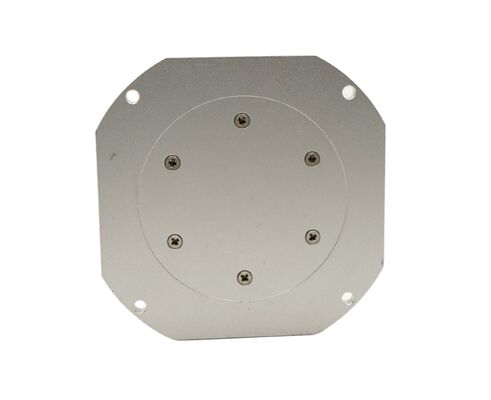

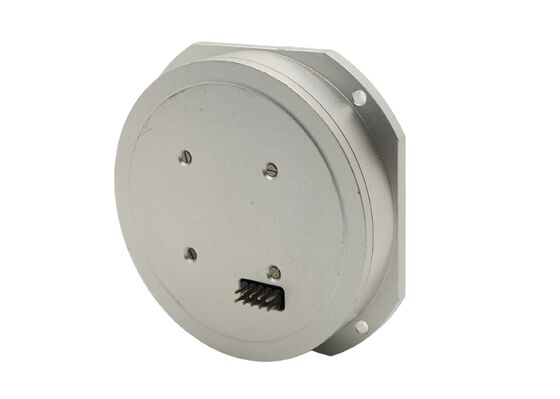

Fiber Optic Gyro Inertial Measurement Units for Stabilization Platform

Based on the Sagnac effect, the MFOG-910 micro-nano fiber optic gyroscope integrates optics, mechanics, and electronics to achieve high-precision angular rate detection. With no moving parts, fast start-up, and low power consumption (≤1.5W), this sensor is ideal for autonomous robot attitude measurement, providing reliable support for robot navigation and motion control with its excellent zero-bias stability (≤0.8°/H).

This product features a simple structure with no moving parts or wear components, enabling fast startup, compact size, and lightweight design. It is suitable for attitude control and measurement applications across various carrier platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell, and other structural components

Technical Specifications

Parameter	Specification
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25+12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF	≥100,000

Outline Drawing
