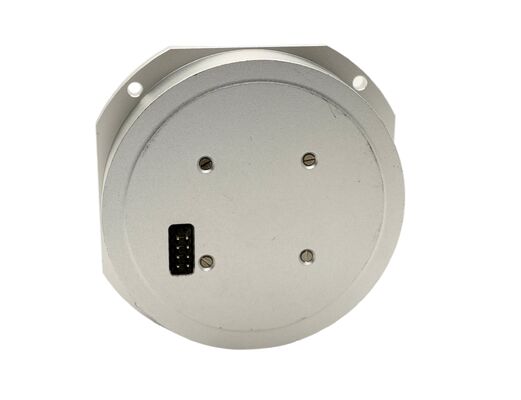

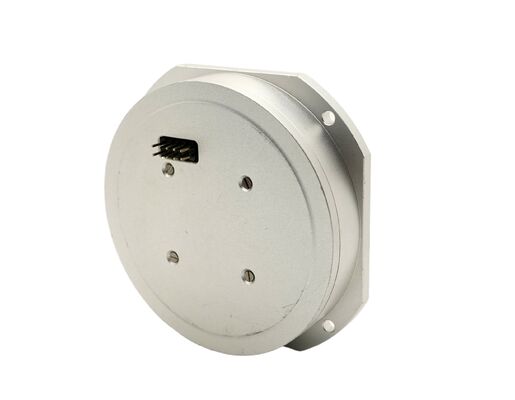

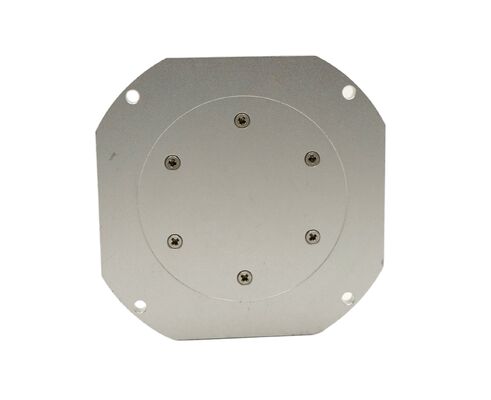

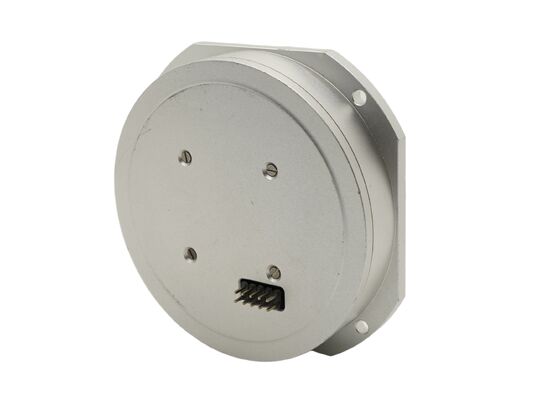

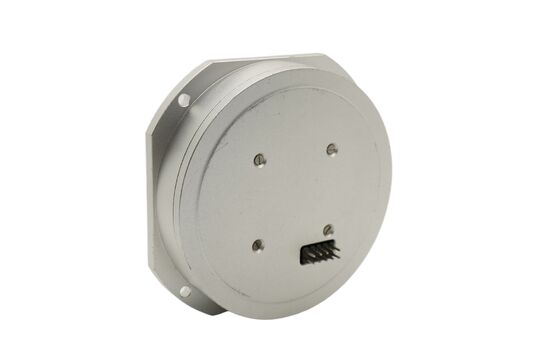

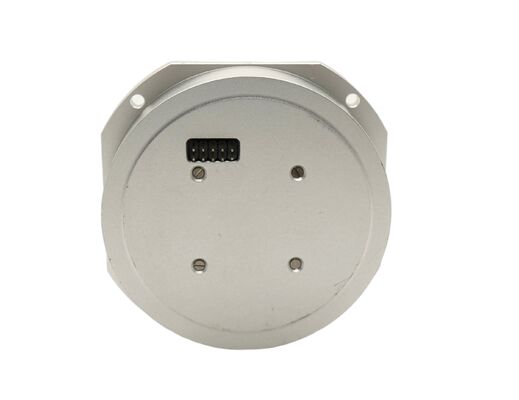

UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone

Name: UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Tingkat Sudut Maksimum:

±240°/dtk

Stabilitas bias:

≤0,8°/jam

Repatibilitas bias nol:

≤0,8°/jam

Koefisien Jalan Acak:

≤ 0,02°/√h

Tegangan Pasokan:

+5V

Jenis keluaran:

Analog

lebar pita:

≥1000Hz

Dimensi:

82mm × 82mm × 19.5mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Product Description

The MFOG-910 micro-nano fiber optic gyroscope is a high-performance angular rate sensor utilizing the Sagnac effect. With a compact design (82mm × 82mm × 19.5mm) and lightweight (≤150g), it is perfect for attitude control in aerospace and defense applications. Its robust performance includes a range of ±240°/s and a zero-bias stability of ≤0.8°/H.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts

Main Performance

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/ ^o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, ^o/H)	≤0.8
5	Zero-bias repeatability (1σ, ^o/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( ^o/√ H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Outline Drawing

UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone 0
