Industrial Grade Fiber Optic Gyroscope Fog Inertial Navigation System INS

Name: Industrial Grade Fiber Optic Gyroscope Fog Inertial Navigation System INS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Stabilitas bias:

≤0,8°/jam

Tingkat Sudut Maksimum:

±300°/dtk

Repatibilitas bias nol:

≤0,8°/jam

Tegangan Pasokan:

+5V

Koefisien Jalan Acak:

≤0,03°/√jam

Jenis keluaran:

Analog

lebar pita:

>300Hz

Dimensi:

40mm × 20mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

industrial fiber optic gyroscope

FOG inertial navigation system

fiber optic gyro INS

Deskripsi produk

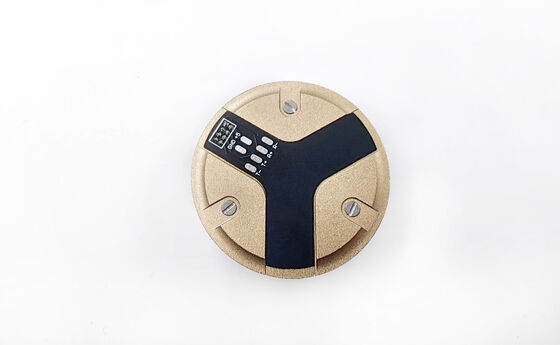

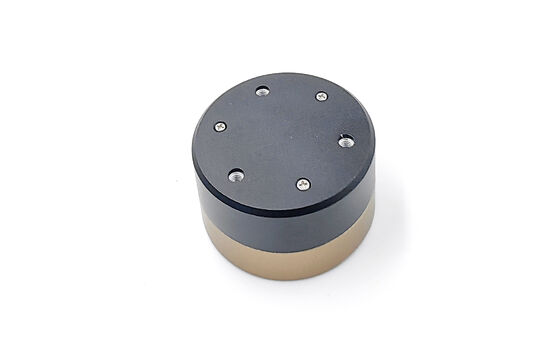

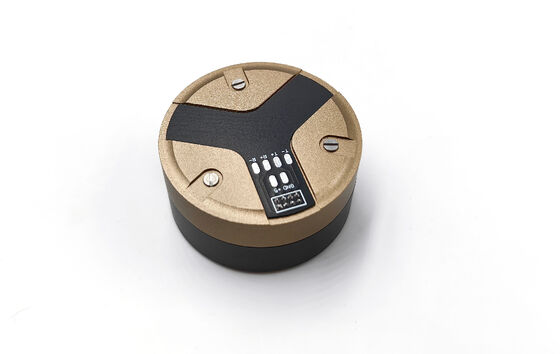

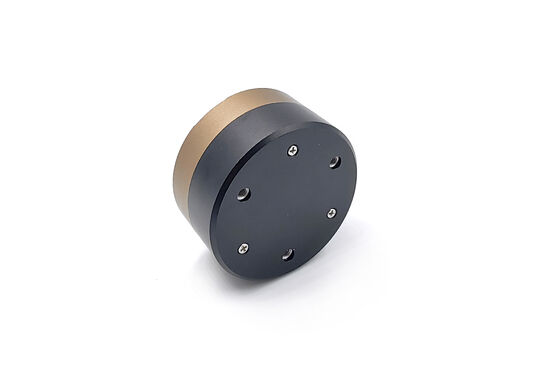

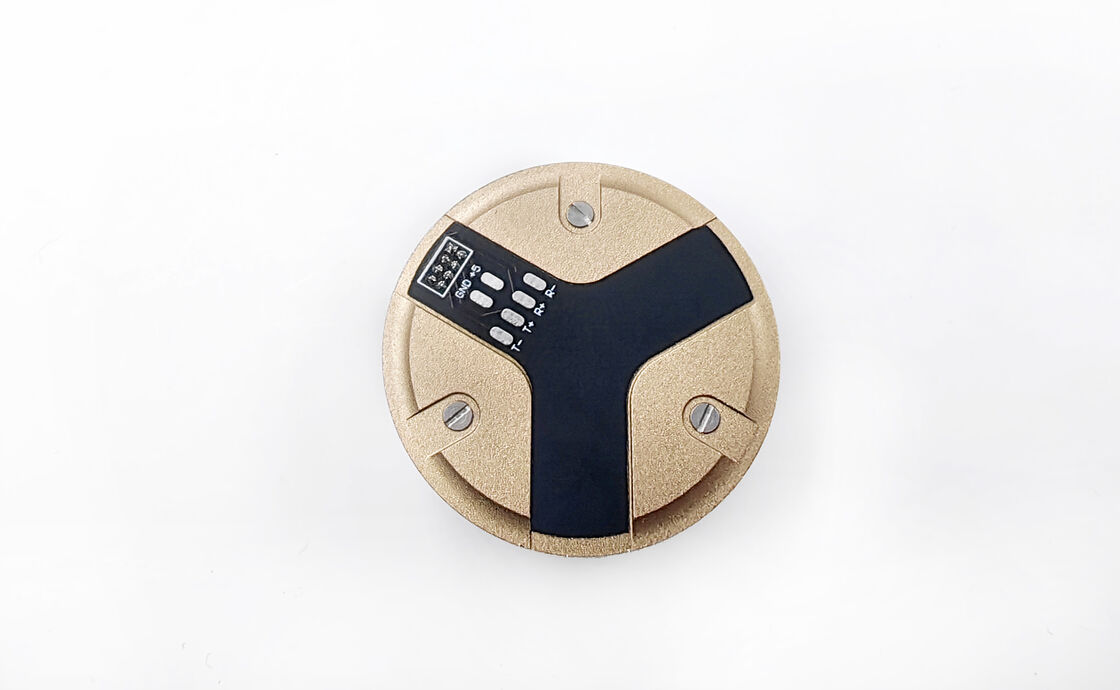

Industrial Grade Fiber Optic Gyroscope FOG Inertial Navigation System INS

The MFOG-40 features a simple structure with no wear parts, ensuring long-term stability and fast startup. With an operating temperature range of -40°C to +70°C and vibration tolerance of 20g (20-2000Hz), this system is ideal for UAV flight control, industrial robotics, and platform stabilization applications.

System Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural components

Technical Specifications

Parameter	Performance Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H¹/²)	≤0.02
Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimensions (mm)	φ40*20
