Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor

Name: Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Stabilitas bias:

≤0,8°/jam

Tingkat Sudut Maksimum:

±300°/dtk

Repatibilitas bias nol:

≤0,8°/jam

Tegangan Pasokan:

+5V

Koefisien Jalan Acak:

≤0,03°/√jam

Jenis keluaran:

Analog

lebar pita:

>300Hz

Dimensi:

40mm × 20mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

low cost fiber optic gyroscope

commercial grade inertial sensor

fiber optic gyro with warranty

Deskripsi produk

Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor

Compact Micro-Nano FOG with Easy Integration

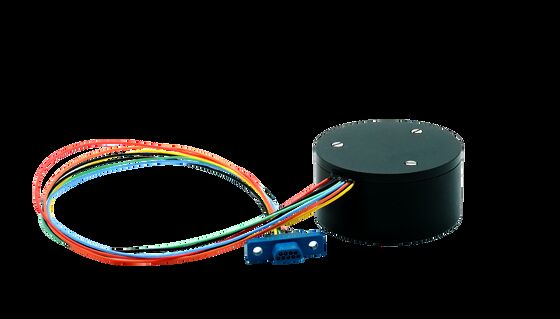

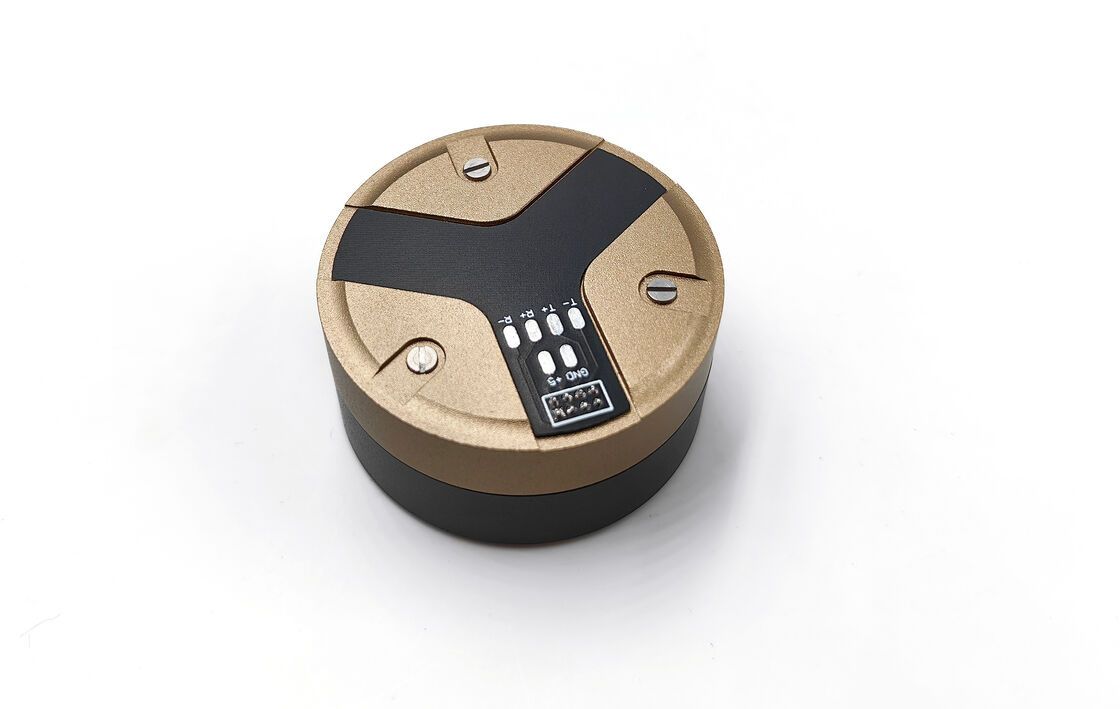

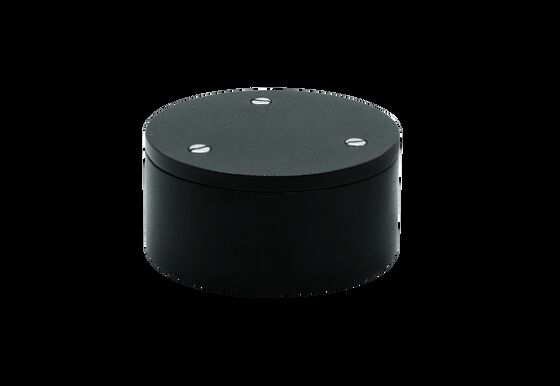

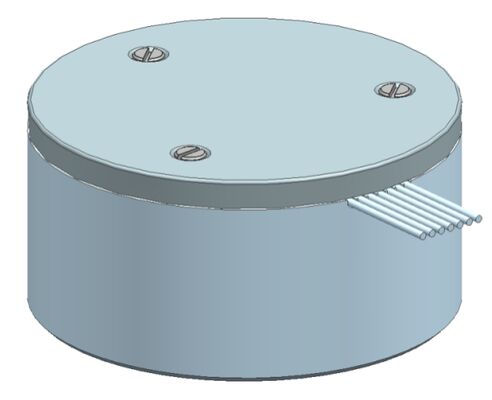

MFOG-40 is a compact micro-nano fiber optic gyroscope featuring three M3 mounting threads for straightforward integration. This commercial grade inertial sensor delivers exceptional performance with ±300°/s range, low zero-bias stability (≤0.8°/h), and angular random walk ≤0.02°/√h, making it ideal for drones, autonomous vehicles, and mobile platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and structural components

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/h)	≤0.8
Zero-Bias Repeatability (1σ, °/h)	≤0.8
Angular Random Walk (°/h¹/²)	≤0.02
Zero-Bias Stability Full Temperature (-40℃ to +65℃, 10s, 1σ, °/h)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5

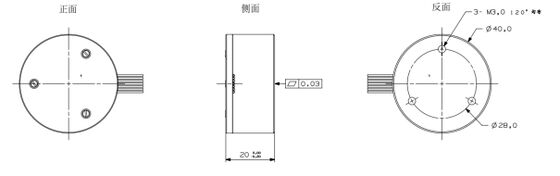

Dimensions (mm)	φ40 * 20
