China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference

Name: China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Stabilitas bias:

≤0,8°/jam

Tingkat Sudut Maksimum:

±300°/dtk

Repatibilitas bias nol:

≤0,8°/jam

Tegangan Pasokan:

+5V

Koefisien Jalan Acak:

≤0,03°/√jam

Jenis keluaran:

Analog

lebar pita:

>300Hz

Dimensi:

40mm × 20mm

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

fiber optic gyroscope factory price

fiber optic gyro heading reference

china manufacturer gyrocompass gyroscope

Deskripsi produk

China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference

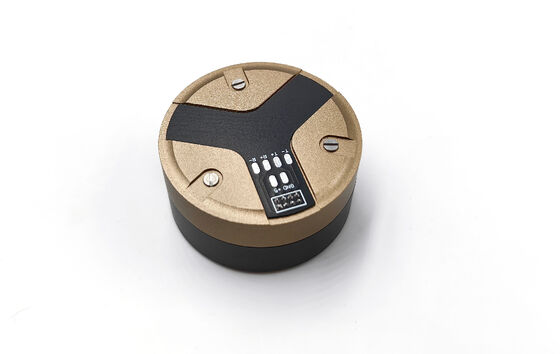

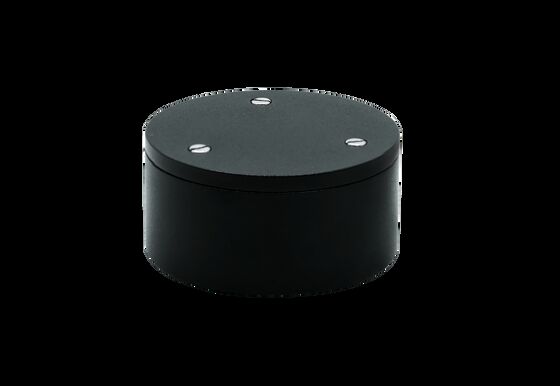

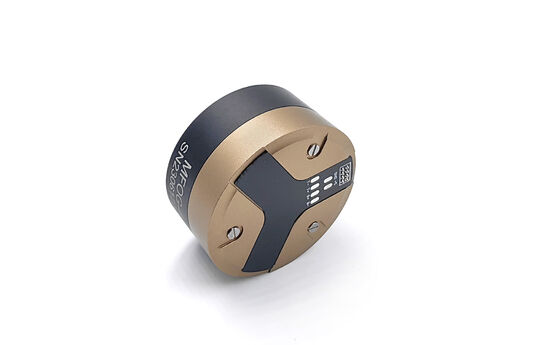

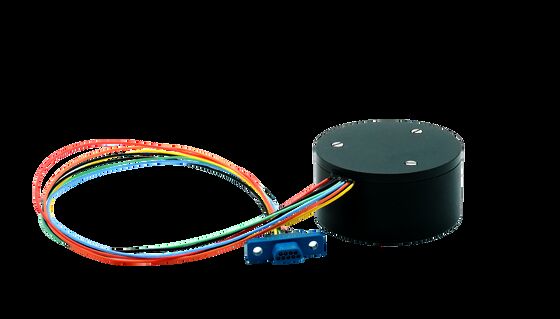

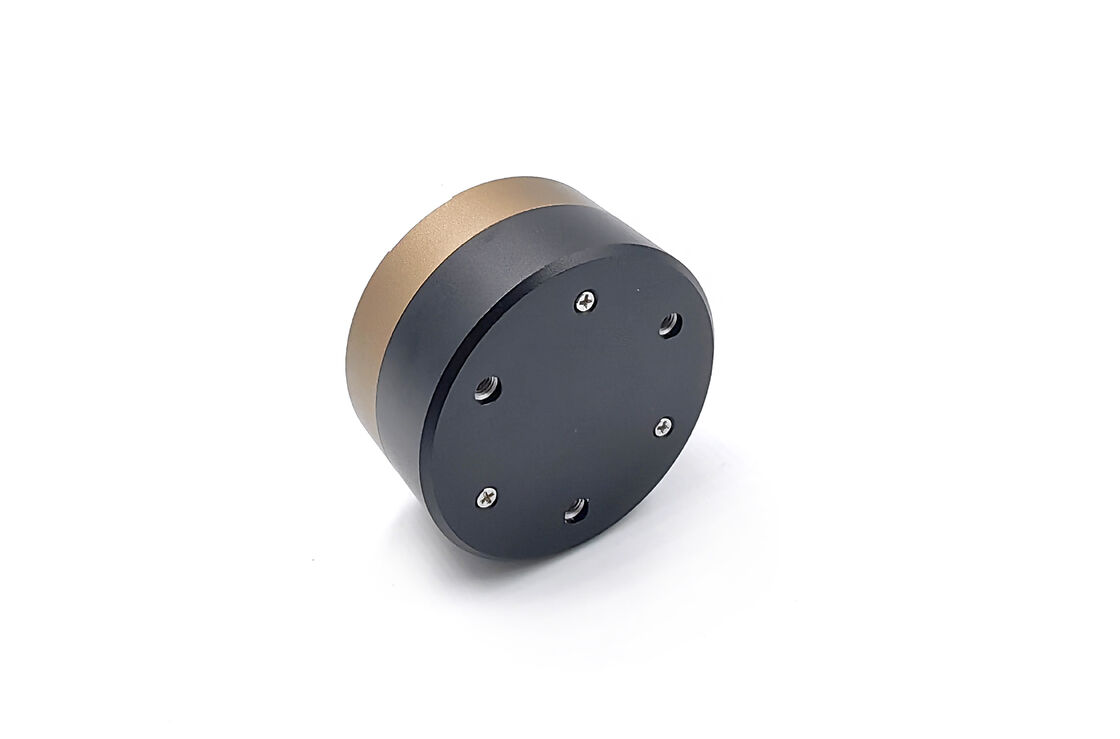

The MFOG-40 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optics, mechanics, and electronics. Based on the Sagnac effect, it delivers accurate attitude measurement with zero moving parts, lightweight design (≤40g), and compact dimensions (φ40*20mm), ideal for UAVs, robotics, and precision platform stabilization.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-bias Stability (10s, 1σ, °/H)	≤0.8
Zero-bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H^1/2)	≤0.02
Zero-bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimensions (mm)	φ40*20
