Integrated Fiber Optic Gyro Accelerometer Inertial Sensor for FOG Inertial Measurement Unit

Name: Integrated Fiber Optic Gyro Accelerometer Inertial Sensor for FOG Inertial Measurement Unit
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fiber Optic Gyro inertial sensor

FOG inertial measurement unit

Integrated gyro accelerometer sensor

Deskripsi produk

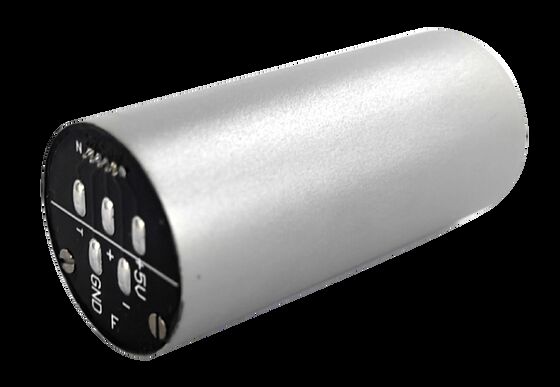

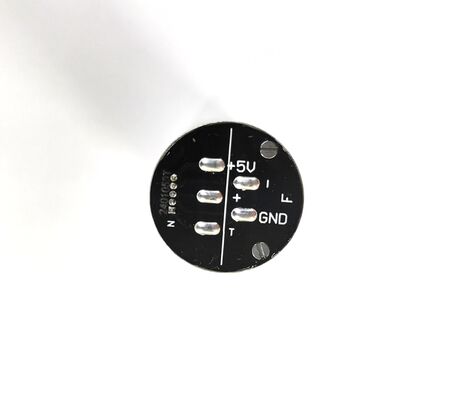

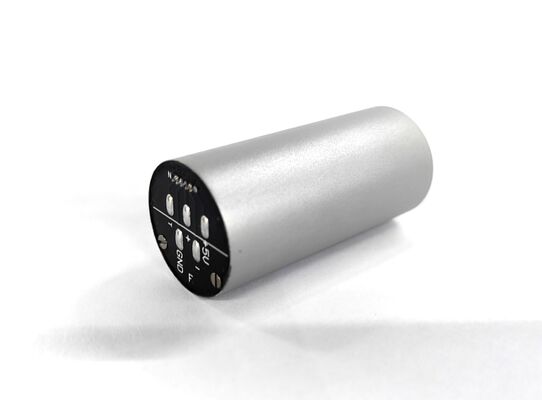

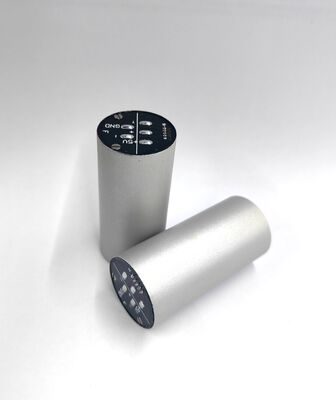

MFOG-24 Micro-Nano Fiber Optic Gyroscope

The MFOG-24 is a micro-nano fiber optic gyroscope engineered for precision angular velocity sensing in industrial and defense-grade systems. Built on the closed-loop Sagnac interferometric principle, it offers outstanding bias stability and repeatability under harsh vibration environments.

With a random vibration tolerance of 20g (20Hz-2000Hz) and an operating range of -40°C to +65°C, this FOG ensures reliable performance in challenging environments.

Key Applications

AGV navigation systems
Marine stabilization platforms
Antenna tracking systems
Platform attitude control

Technical Performance Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5±0.15	5±0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24*39	φ24*39
