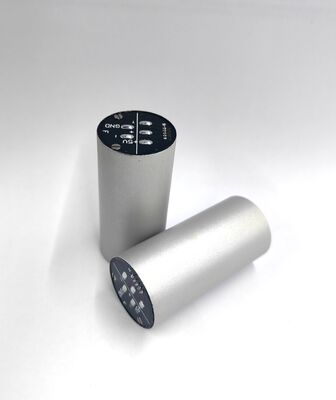

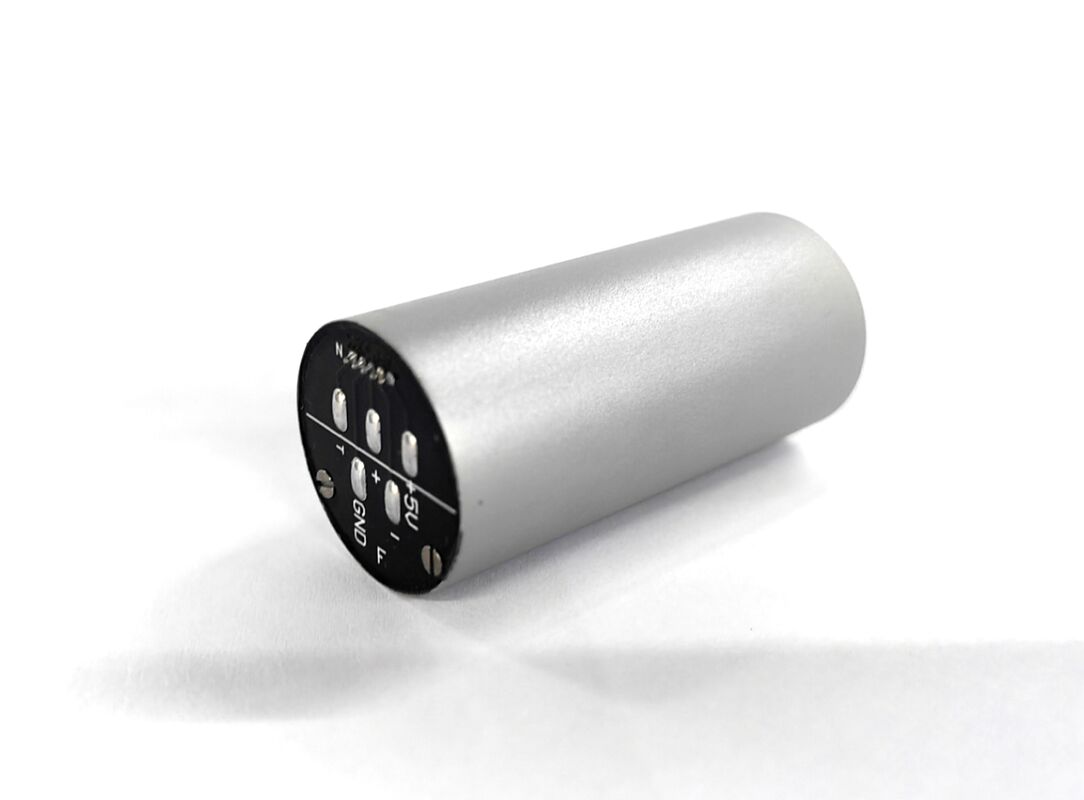

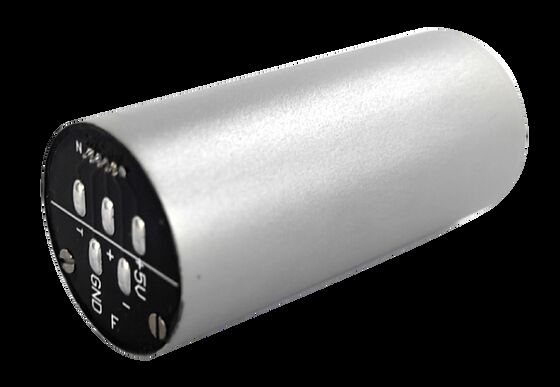

Fizoptika VG191AD FOG Angular Rate Sensor for Stabilized Platform

Name: Fizoptika VG191AD FOG Angular Rate Sensor for Stabilized Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	700$
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/detik

stabilitas bias nol:

≤1,5°/jam

Pengulangan Bias:

≤1,5°/jam

Ukuran:

24mm × 39mm

Suhu Kerja:

-40 ℃ ~ + 65 ℃

Berat:

≤30g

Catu daya:

5VDC

Kemasan rincian:

Kotak+spons

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Product Description

MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact high-performance angular rate sensor based on the Sagnac effect. Integrating optical, mechanical, and electronic systems, it detects rotational motion by processing phase differences between counter-propagating light beams.

With no moving parts, fast startup, and excellent environmental resistance, it is ideal for modern navigation platforms requiring high reliability.

Main Performance

Serial number	Project	Performance indicators
Serial number	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h ^1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
