FOG-Based Angular Rate Sensor Fiber Optic Gyroscope Manufacturer

Name: FOG-Based Angular Rate Sensor Fiber Optic Gyroscope Manufacturer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 700 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-1703
Moq:	1
harga:	700USD
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Stabilitas bias:

1°/jam

Pengulangan Bias:

1°/jam

Dimensi:

φ40 × 20mm

Berat:

≤ 40g

Catu Daya:

5+0,25V

Koefisien jalan acak:

≤0,02°/Vh

Kemasan rincian:

spons/kotak

Menyediakan kemampuan:

500/bulan

Menyoroti:

FOG fiber optic gyroscope sensor

angular rate sensor with warranty

accelerometer gyro sensor manufacturer

Deskripsi produk

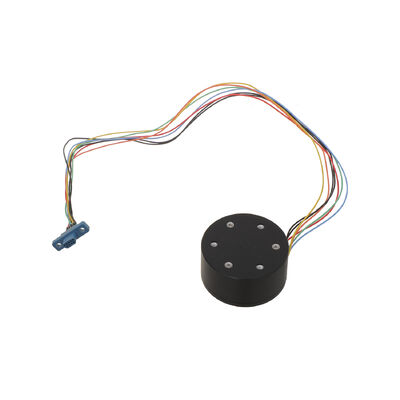

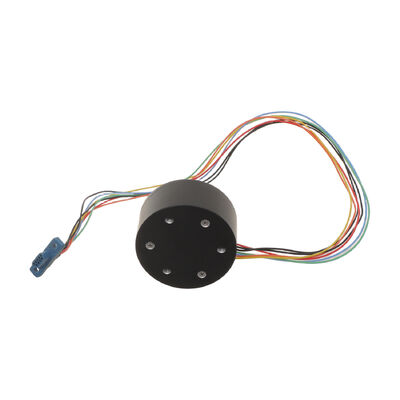

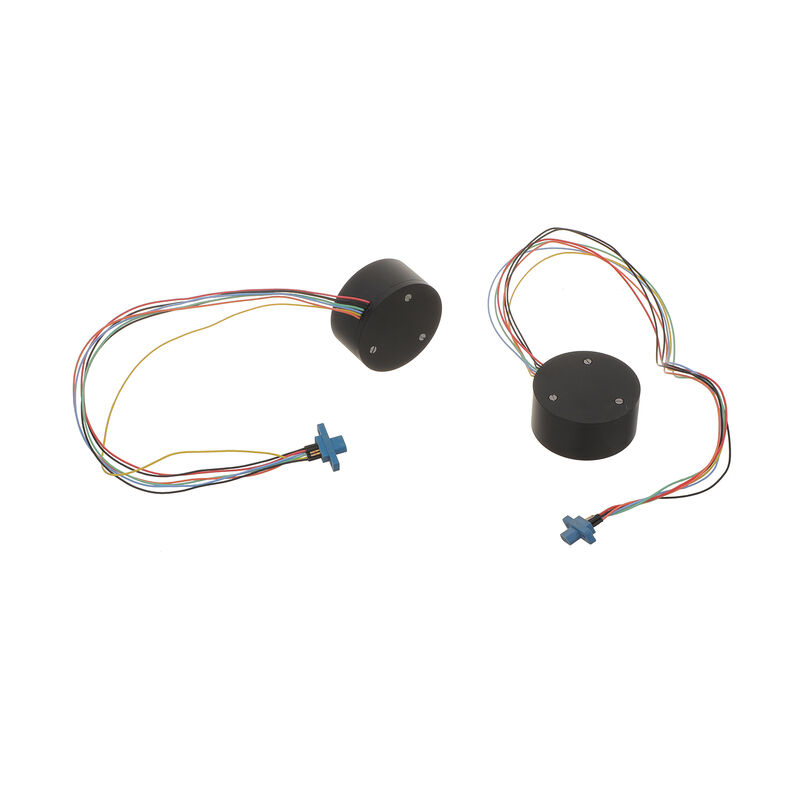

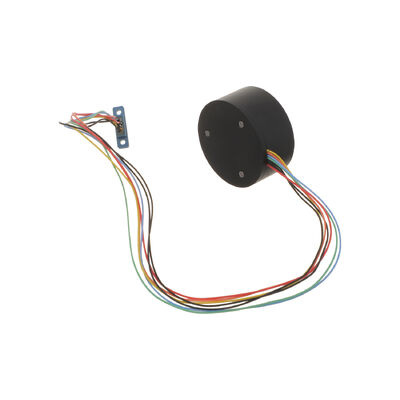

MFOG-1703 Fiber Optic Gyroscope

The MFOG-1703 is a solid-state micro-nano fiber optic gyroscope that delivers precise angular rate data through advanced internal detection, processing, and closed-loop control of optical phase differences. This robust system integrates an optical path module, detection and control electronics, and a durable mechanical structure.

Features standardized interface and form factor for seamless replacement of Fizoptika VG1703

Technical Specifications

Parameter	Specification
Range (°/s)	±150
Scale Factor (mV/°/s)	12±1.2
Zero-bias Stability (10s, 1σ, °/h)	≤1
Zero-bias Repeatability (1σ, °/h)	≤1
Angular Random Walk (°/h^1/2)	≤0.02
Zero-bias Temperature Sensitivity (μV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms, half sine
Power Supply (V)	5 ± 0.25
Power Consumption (W)	≤1
Dimensions (mm)	φ40 × 20
