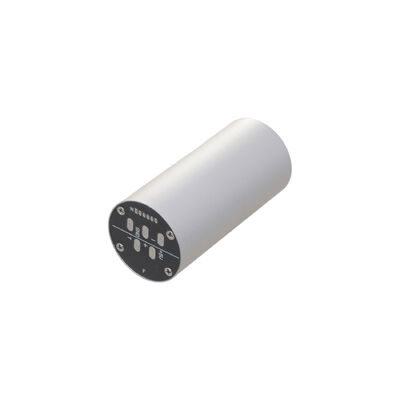

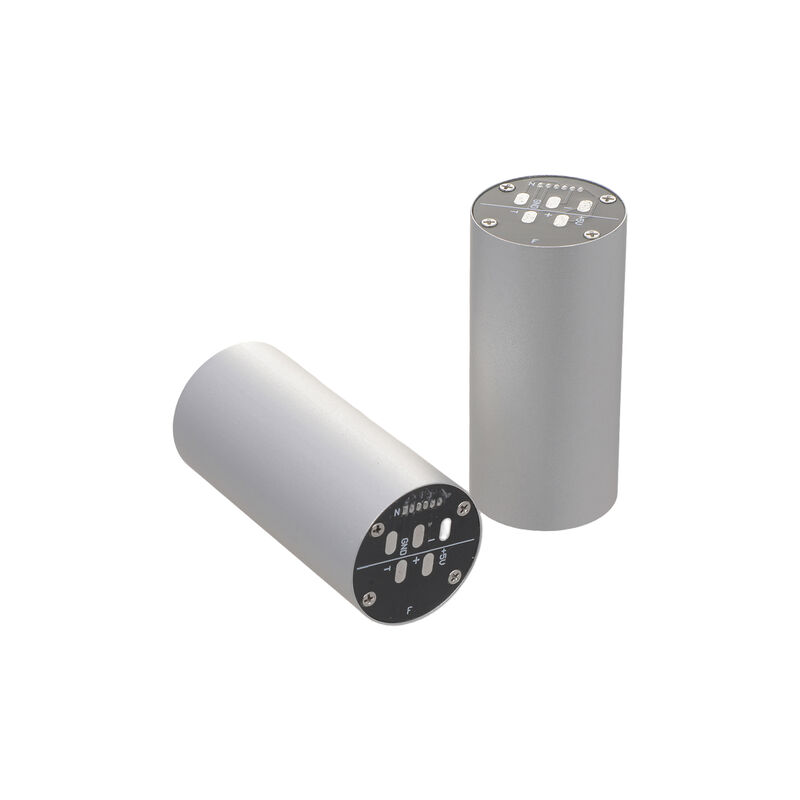

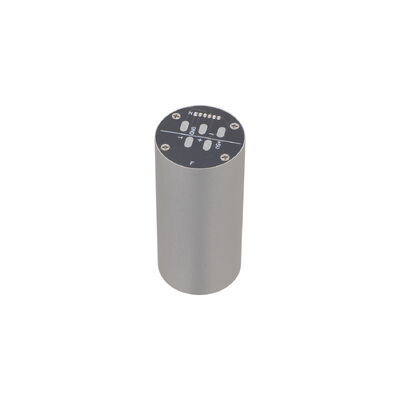

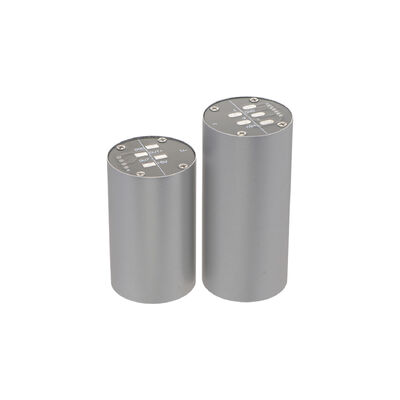

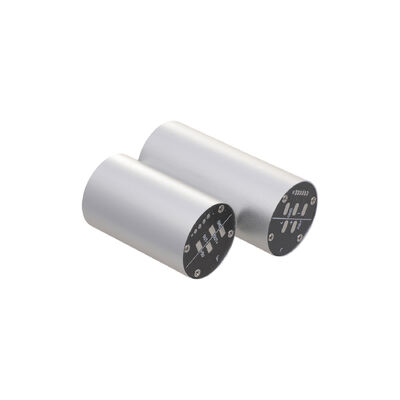

MFOG Fiber Optic Gyroscope for Accurate Measurement in Dynamic Environments

Name: MFOG Fiber Optic Gyroscope for Accurate Measurement in Dynamic Environments
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	650~740
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±500°/dtk

Stabilitas nol-bias:

≤1,5°/jam

Jalan acak sudut:

≤0,03°/jam^(1/2)

Bandwidth 3DB:

≥300Hz

Nonlinier faktor skala:

300 ppm

Konsumsi Daya:

≤1.5W

Kemasan rincian:

spons/kotak

Menyediakan kemampuan:

500/bulan

Menyoroti:

fiber optic gyroscope for dynamic environments

IMU gyroscope with accurate measurement

fiber optic gyro for precise navigation

Deskripsi produk

MFOG Fiber Optic Gyroscope for Accurate Measurement in Dynamic Environments

The MFOG-24 features a solid-state design that integrates optical fibers, electronics, and mechanical components to measure angular rates with exceptional precision. This innovative design eliminates mechanical wear, ensuring maintenance-free operation and long-term reliability.

Applications

Airborne navigation systems
Marine navigation equipment
Vehicle attitude control systems
Industrial automation control

Main Performance Parameters

Serial Number	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
