Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability

Name: Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	650~740
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Stabilitas bias:

≤1,5°/jam

Jalan acak sudut:

≤0,03°/jam^(1/2)

Konsumsi Daya:

≤1.5W

Pengulangan Bias:

≤1,5°/jam

Nonlinier faktor skala:

300 ppm

Dimensi:

24X39mm

Kemasan rincian:

spons/kotak

Menyediakan kemampuan:

500/bulan

Menyoroti:

Single Axis Fiber Optic Gyro

Open-loop Fiber Optic Gyro

Fiber Optic Gyro 1.5° Bias stability

Deskripsi produk

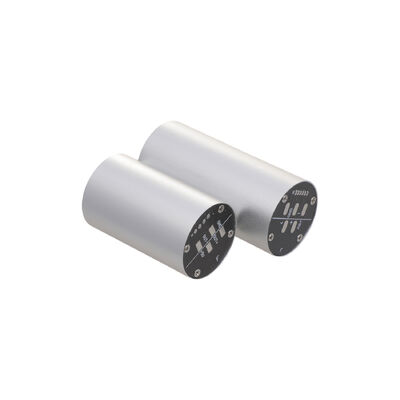

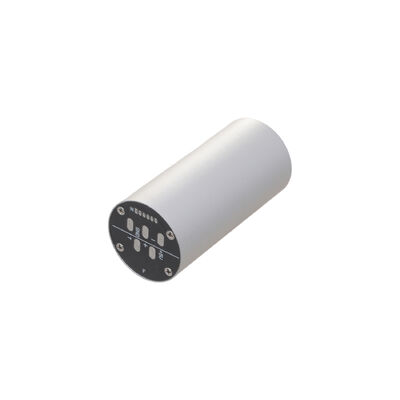

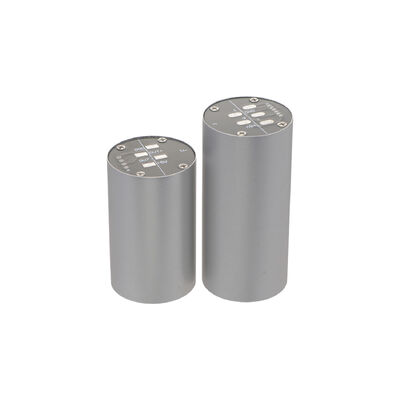

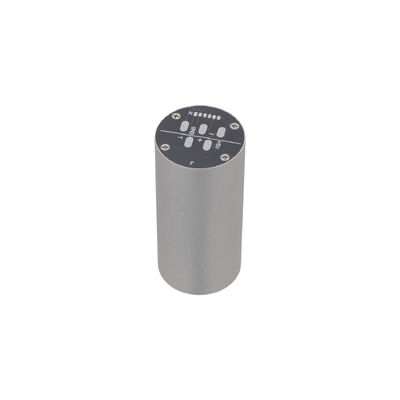

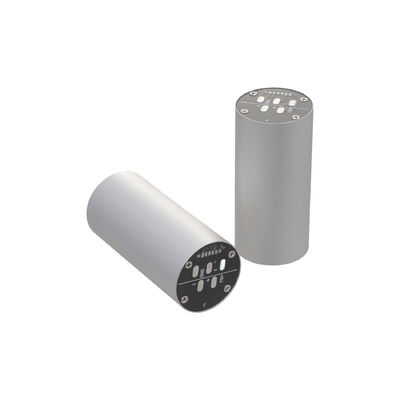

Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5° Bias Stability

The MFOG-24 leverages micro-nano fiber optics for ultra-precise angular rate measurement. Despite its miniaturized form factor, it provides high stability and quick initialization.

Applications

Autonomous drones
Navigation systems
Navigation-grade inertial systems
Inertial measurement units (IMU)

Main Performance Parameters

Serial No.	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600 (LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h 1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
