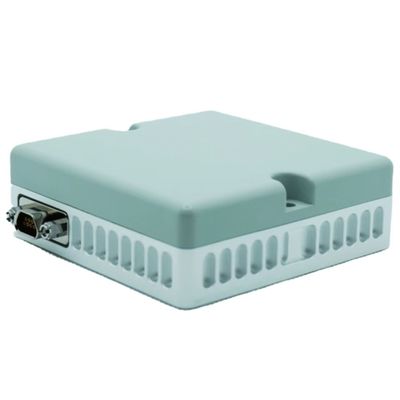

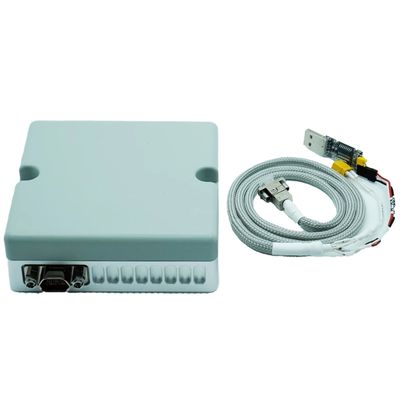

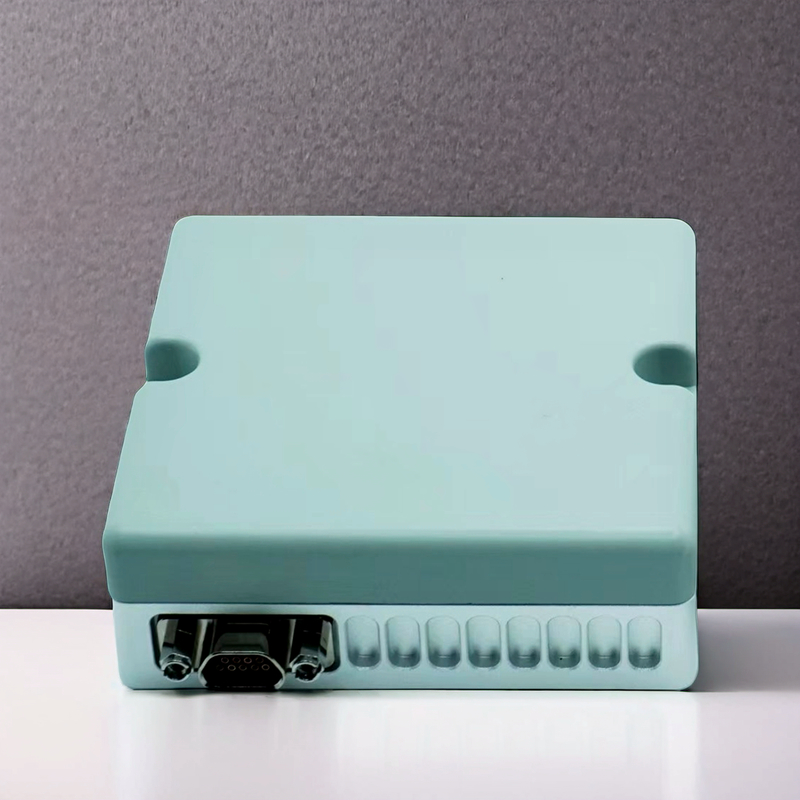

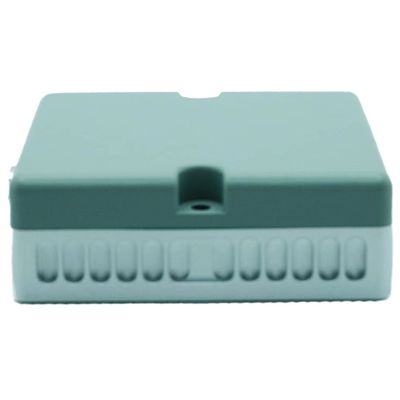

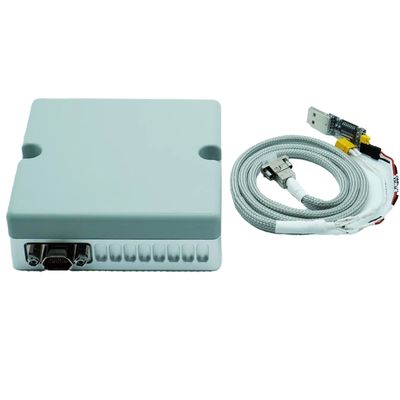

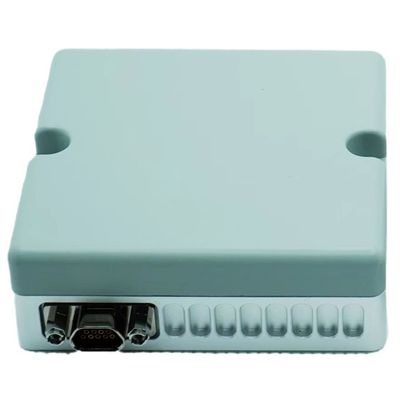

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Name: 16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FPD24005-66
Price: 10000.00 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	FPD24005-66
Moq:	1
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

CINA

Nama Produk:

Penerima Antena

Gangguan searah:

lebih baik dari 85dBc

Gangguan multi-directional:

lebih baik dari 65dBC

Ruang udara anti-jamming:

Azimuth: 0 ° ~ 360 °, ketinggian: -90 ° ~ 90 °

dimensi:

(66 ± 0,5) mm x (66 ± 0,5) mm x (22 ± 0,5) mm

Konsumsi daya:

Berat:

<150g

Menyediakan kemampuan:

500/bulan

Menyoroti:

16-array anti-jamming antenna

satellite ground station antenna

fiber optic gyro calibration antenna

Deskripsi produk

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Model: FPD24005-66-GNSS-12V. This advanced anti-jamming antenna protects platforms from both unintentional interference and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Product Features

Advanced anti-deception capabilities
Jamming power detection for convenient calibration and system testing
Supports secondary development with spectrum monitoring and histogram analysis
4-array element single-frequency anti-jamming (B1, L1, and E1 frequency points)
Built-in navigation module outputs positioning information via NEMA0183 protocol

Key Performance Indicators

Anti-Interference Capability

Unidirectional interference: >85dBc
Multi-directional interference: >65dBc

Interference Types

Decoy jamming
Band-limited white Gaussian interference
Spread spectrum matched spectrum interference
Pulse jamming and sweep jamming
Mixed interference

Additional Specifications

Anti-jamming airspace: Azimuth 0°-360°, Elevation -90°-90°
Dimensions: (66 ± 0.5)mm * (66 ± 0.5)mm * (22 ± 0.5)mm
Power consumption: 7W (normal temperature, including positioning module)
Weight: <150g

Interface Description

J30J-9ZKP Pin Definition

Pin No.	Definition	Remark
1/2	VCC12V	Power supply 12V
3/4	GND	Power supply 12V
5	UART_TXD1	Upgrade serial port, TTL level
6	UART_RXD1	Upgrade serial port, TTL level
7	UART_DGND	Ground
8	UART_TXD2	Serial port of positioning module, TTL level
9	UART_RXD2	Serial port of positioning module, TTL level
