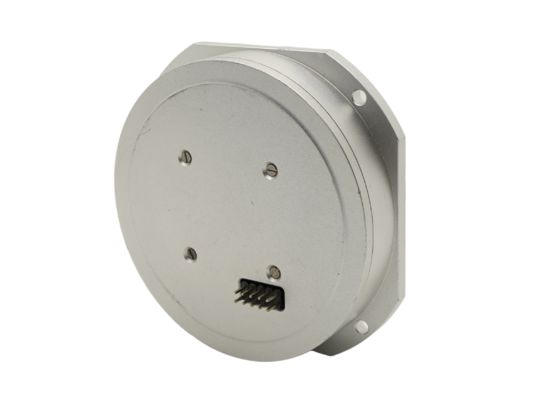

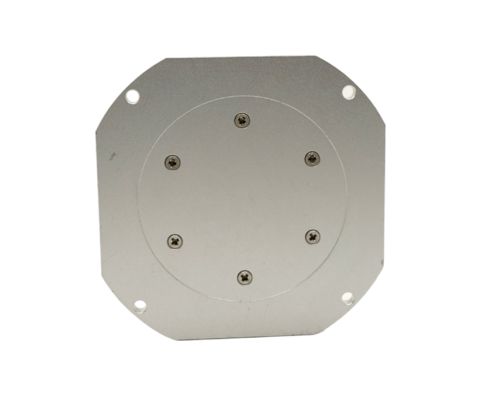

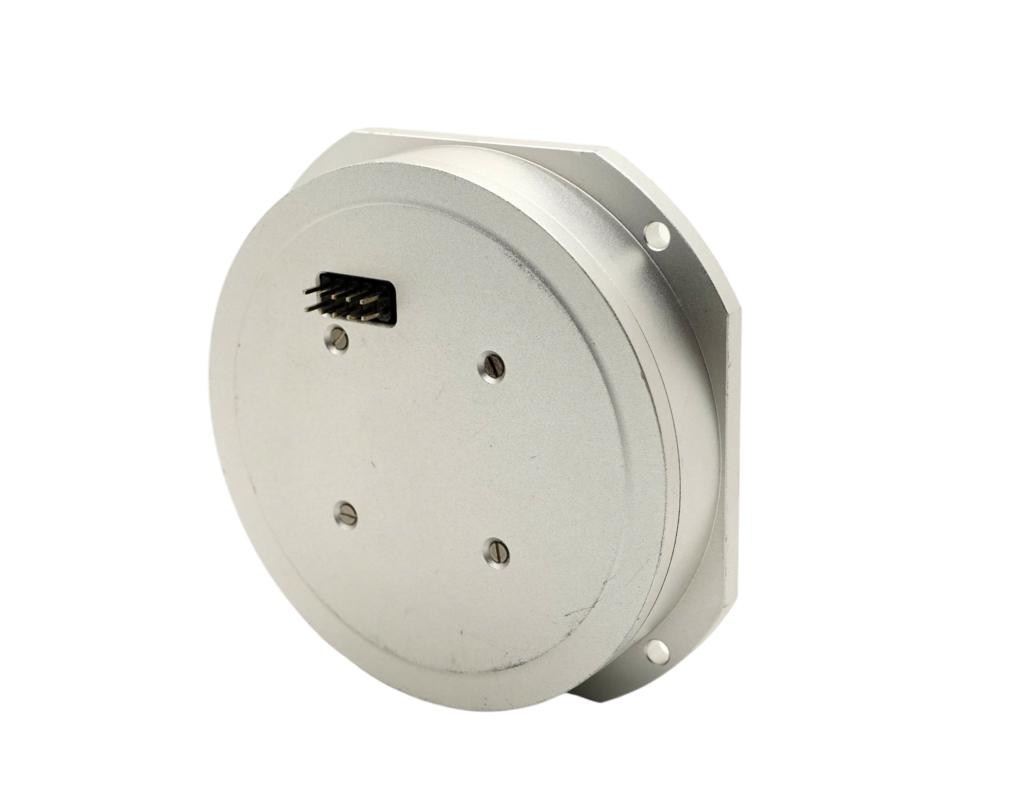

Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	1000$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Jangkauan:

±240°/dtk

Stabilitas Zero-Bias ((10s, 1σ):

≤0,8°/jam

Jalan acak sudut:

≤0.02 °/jam

Bandwidth 3DB:

≥1000Hz

Pengulangan nol bias ((1σ):

≤0,8°/jam

Faktor skala nonlinier:

≤ 1000 ppm

Berat:

≤150g

Konsumsi daya:

≤1.5W

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

fiber optic gyroscope gimbal stabilization

VG910 gyro sensor system

airborne fiber optic gyro

Deskripsi produk

Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Fizoptika VG910 Copy Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability

Key Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a compact, high-precision angular rate sensor based on the Sagnac effect. It features an all-solid-state design with temperature compensation, ensuring high reliability, fast startup, and a long service life of over 15 years. With excellent shock (≥1500g) and vibration (≥70g) resistance, as well as low power consumption (≤1.5W) and lightweight construction (≤150g), it is ideal for precise attitude control and inertial navigation in dynamic platforms.

Detailed Performance Parameters

Parameter	Specification
Range (°/s)	±240
Scale factor (mV/°/s)	47±5
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤0.8
Zero-bias repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25+12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF (Calculated Assessment)	≥100000

Product Diagrams

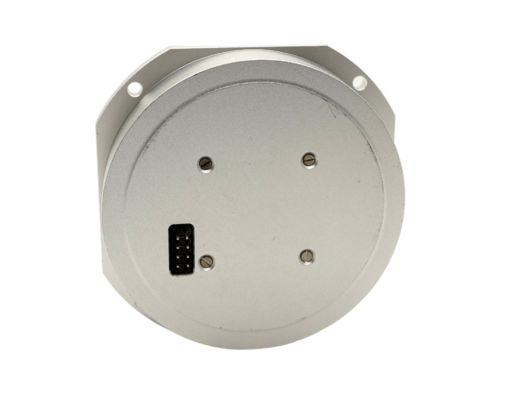

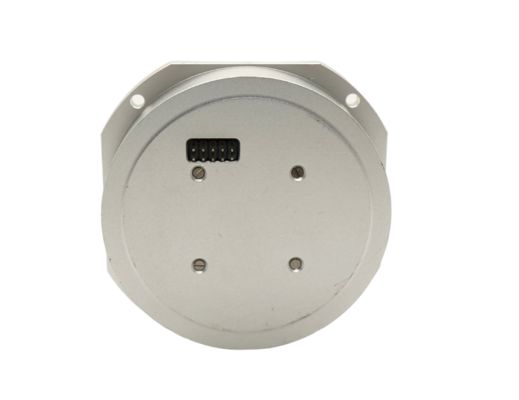

Front View Diagram

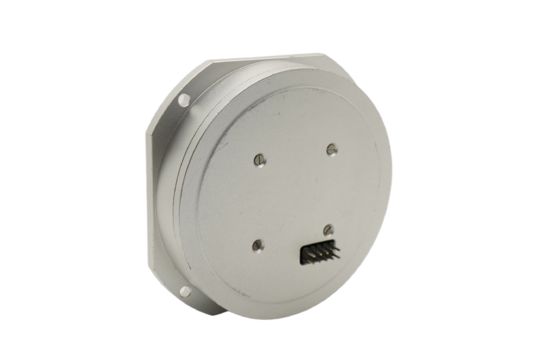

Side View Diagram
