Fiber Optic Gyro Sensor 6.06g Vibration Resistance Low Drift

Fiber Optic Gyro Sensor 6.06g Vibration Resistance Low Drift

Nama merek:	avic
Nomor Model:	MFOG103PT
Moq:	1
harga:	900 USD
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	1000/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Suhu operasi:

Jangkauan luas

Tingkat kebisingan:

Rendah

Berat:

Ringan

Konsumsi daya:

Rendah

Keandalan:

Tinggi

Getaran acak:

6.06g，20~2000Hz

Biaya:

Wajar

Resolusi:

Tinggi

Kemasan rincian:

Karton

Menyediakan kemampuan:

1000/bulan

Menyoroti:

Fiber optic gyro sensor low drift

Fiber optic gyro vibration resistance

Fiber optic gyro sensor 6.06g

Deskripsi produk

Inertial Gyro Sensor Low Drift

Product Overview

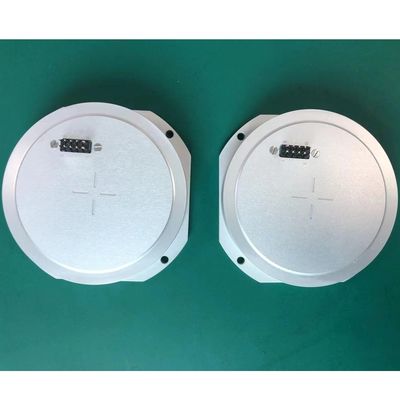

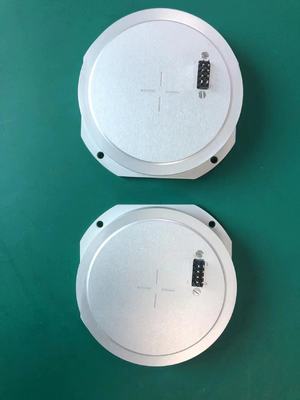

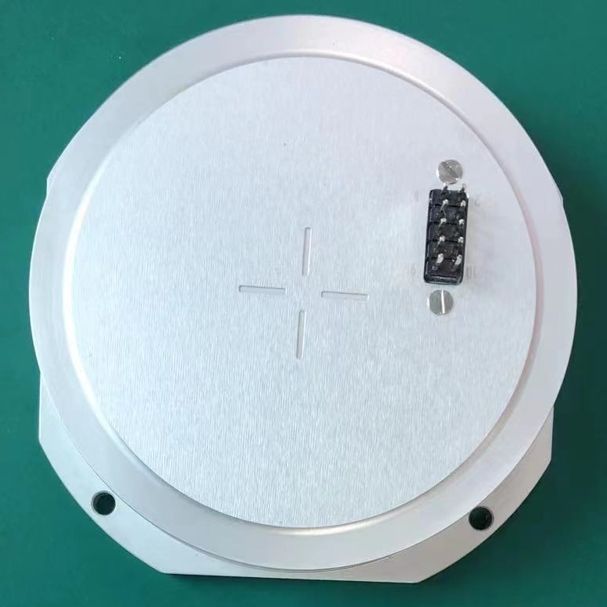

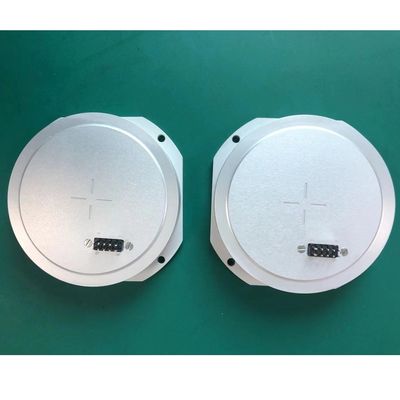

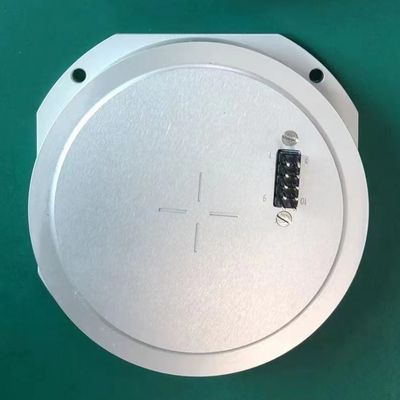

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect and process phase differences between counter-propagating light beams.

Key Features

Product Name: Fiber Optic Gyro
Compact dimensions for space-constrained installations
Withstands random vibration: 6.06g, 20~2000Hz
High stability for precise measurements
Low power consumption for extended operation
Lightweight construction for easy integration

Applications

This single-axis gyro delivers fast response times in a compact, lightweight package, making it particularly suitable for:

Aerospace navigation systems
Industrial automation and robotics
Autonomous vehicle guidance
Medical equipment stabilization
Precision instrumentation

Technical Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Customization Options

Our single-axis gyroscope can be customized to meet specific application requirements, featuring:

Advanced angular rate measurement capabilities
Optimized low power consumption design
Robust construction for vibration resistance (6.06g, 20~2000Hz)
Precision manufacturing for consistent quality

Frequently Asked Questions

Q: What is a Fiber Optic Gyro?

A: A Fiber Optic Gyro (FOG) is an inertial sensing device that measures object rotation through light interference in optical fibers, manufactured by AVIC in China.

Q: What are the benefits of using an AVIC Fiber Optic Gyro?

A: Key benefits include high precision (0.02°/hr accuracy), low power consumption, and immunity to external magnetic fields.

Q: What applications are these gyros suitable for?

A: Ideal for navigation systems, robotics, autonomous vehicles, aerospace applications, and industrial automation.

Q: What is the maximum measurement range?

A: Standard range is ±250º/s, with extended options available up to ±1000°/sec.

Q: How accurate are these gyros?

A: Delivers exceptional accuracy of 0.02°/hr (0.00002°/sec) with minimal drift.
