14bit Fiber Optic Gyro Control Chip with 80MHz ADC

14bit Fiber Optic Gyro Control Chip with 80MHz ADC

Nama merek:	FIREPOWER
Nomor Model:	Sip chip
Moq:	1
harga:	200$
Ketentuan Pembayaran:	L/c, t/t
Kemampuan Penyediaan:	1 minggu untuk sampel

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Resolusi ADC:

14bit

Frekuensi operasi ADC Max:

80MHz

Rasio Signal-to-Noise ADC (SNR):

60db

Kebisingan Masukan Setara:

3LSB

Resolusi DAC:

14bit

Tingkat komunikasi RS422:

≥5Mbps

Ukuran:

≤12mm × 12mm × 2.5mm

Tegangan drive output:

≥9vpp

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

1 minggu untuk sampel

Menyoroti:

14bit fiber optic gyro chip

fiber optic gyro with 80MHz ADC

high precision fiber optic gyro

Deskripsi produk

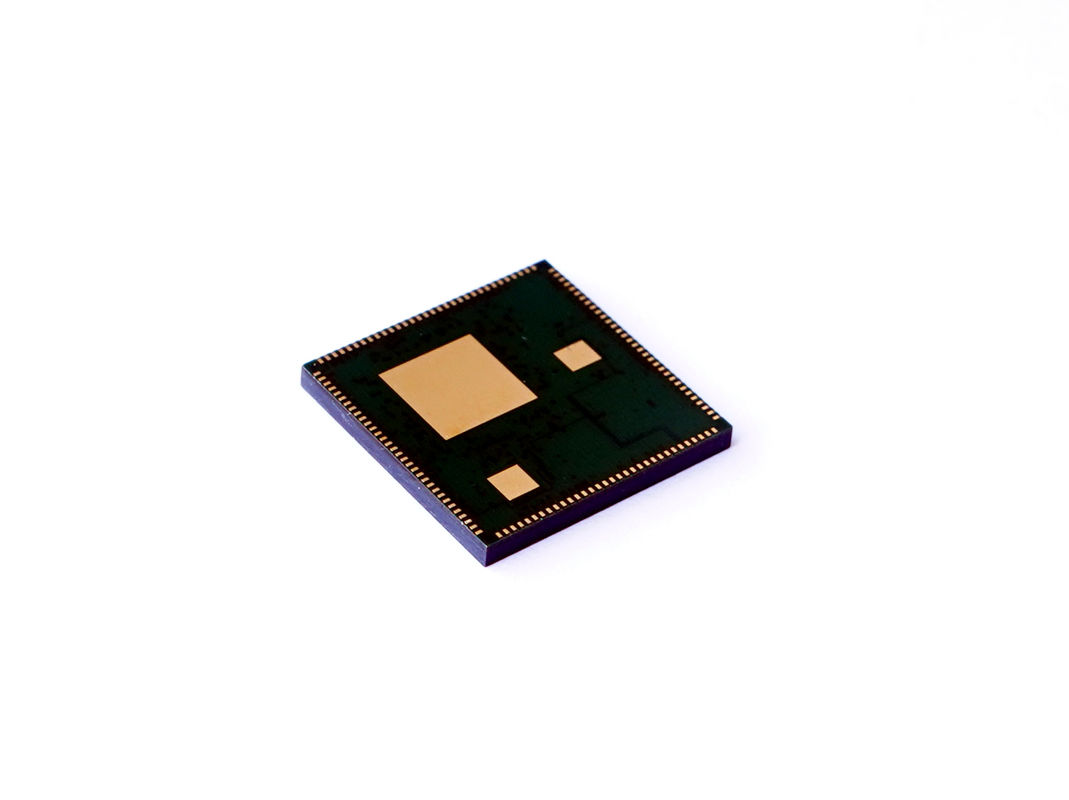

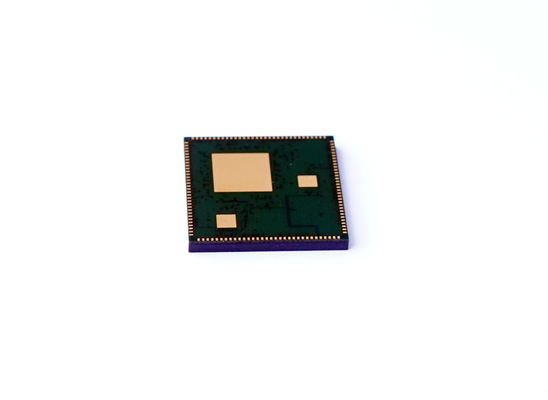

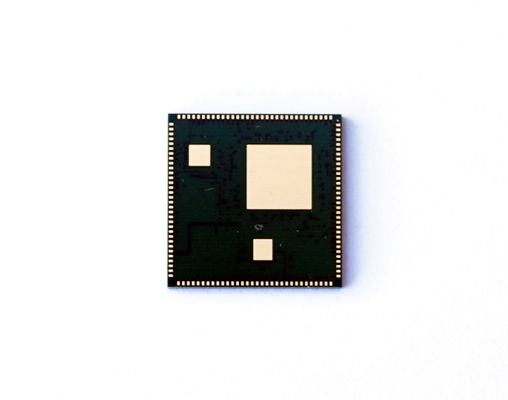

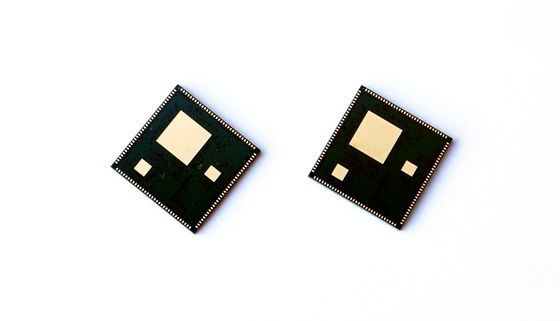

High-Integration Fiber Optic Gyro Control Chip for Precision Navigation System

Product Introduction

This specialized chip for fiber optic gyro control features high integration, compact size, low power consumption, and robust performance. It integrates all main chip devices required for fiber optic gyro control, suitable for gyros with accuracy below 0.5%.

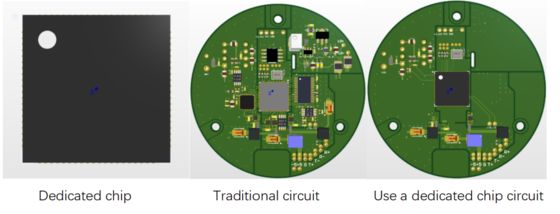

Reduces circuit volume by approximately 70%
Effectively minimizes gyro dimensions
Superior consistency compared to separate devices
Significantly shortens fiber optic gyro R&D cycles

Chip Composition

The chip integrates multiple functional units:

Programmable logic and memory units (FPGA and FLASH)
Digital-to-analog conversion (DAC)
Analog-to-digital conversion (ADC)
Driver (Diver)
Communication unit (422)

Technical Specifications

No.	Parameter	Specification
1	ADC Resolution	14bit
2	ADC Max Operating Frequency	80MHz
3	ADC Signal-to-Noise Ratio (SNR)	60dB
4	Equivalent Input Noise	3LSB
5	DAC Resolution	14bit
6	DAC Max Operating Frequency	50MHz
7	DAC Spurious-Free Dynamic Range (SFDR)	68dB
8	Output Drive Voltage	≥9Vpp
9	RS422 Communication Rate	≥5MBPS
10	Standby Power Consumption	≤0.8W
11	Dimensions	≤12mm12mm2.5mm
12	Package Type	QFN
