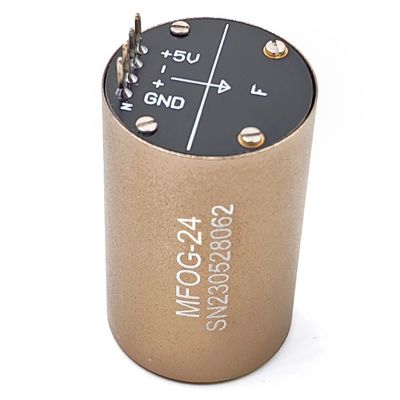

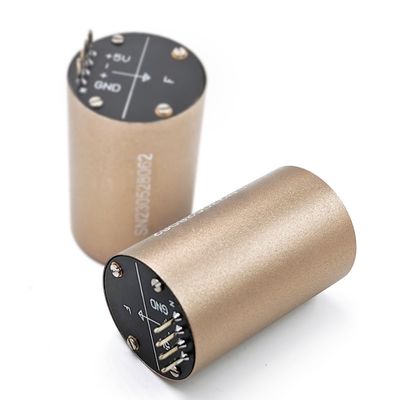

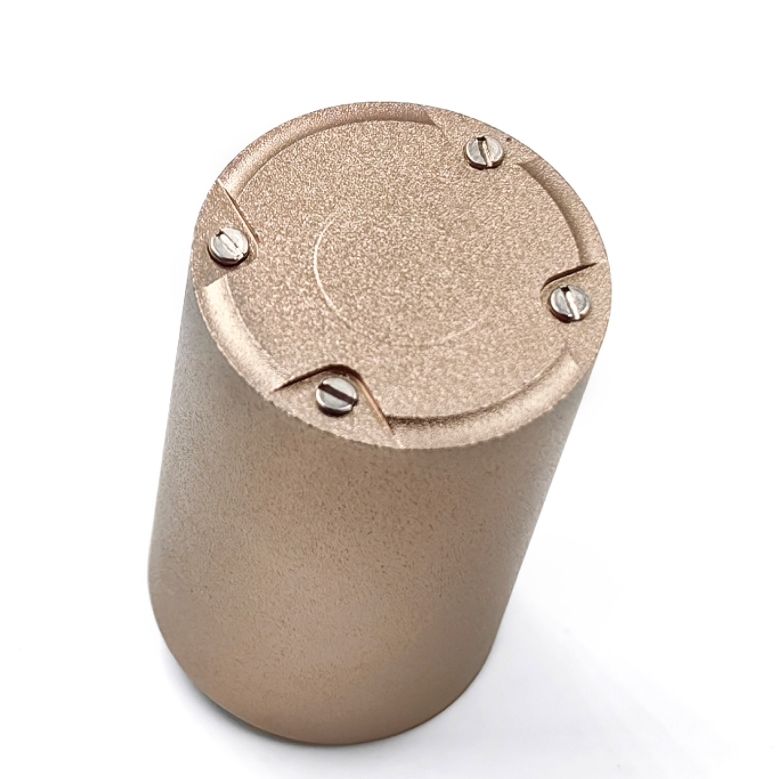

Fizoptika VG091A PDF Factory Supply FOG Sensor UAV Gyro Sensor

Fizoptika VG091A PDF Factory Supply FOG Sensor UAV Gyro Sensor

Nama merek:	Firepower
Nomor Model:	MFOG-24
Moq:	1
harga:	1350$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

CINA

Rentang pengukuran:

±500°/dtk

Stabilitas Zero-Bias ((10s, 1σ):

≤1,5°/jam

Jalan acak sudut:

≤0.03 °/jam

Bandwidth:

≥300Hz

Pengulangan nol bias ((1σ):

≤1,5°/jam

Faktor skala nonlinier:

≤300ppm

Dimensi:

φ24x39mm

Catu daya:

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Fizoptika VG091A PDF Factory Supply FOG Sensor UAV Gyro Sensor

Product Overview

The MFOG-091A Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor designed as a direct replacement for the Fizoptika VG091A. This advanced sensor integrates optical, mechanical, and electronic technologies to deliver accurate and reliable angular velocity measurements.

Technology & Features

Based on the Sagnac effect, the gyroscope detects angular motion by measuring the phase difference between two beams of light traveling in opposite directions within a fiber loop. This phase difference is precisely processed to achieve high-accuracy angular rate sensing.

Compact and lightweight design with advanced micro-nano fiber components
No moving or wearing parts for fast start-up and minimal maintenance
Robust construction for demanding environments
Ideal for UAVs, autonomous navigation, robotics, and aerospace applications

Performance Parameters

Serial number	Project	MFOG-091A	MFOG-091A-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h 1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Drawings
