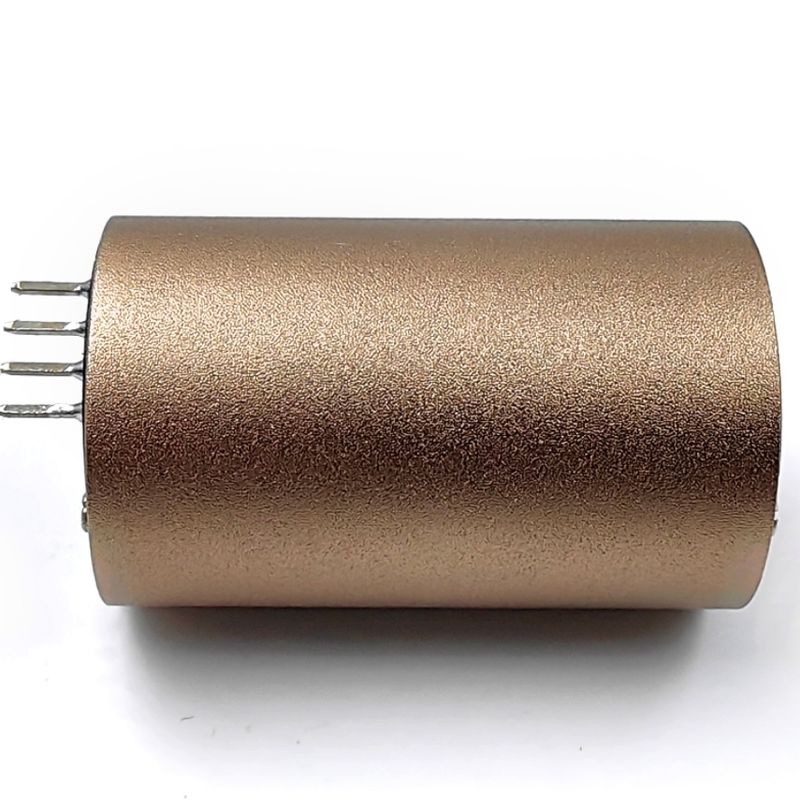

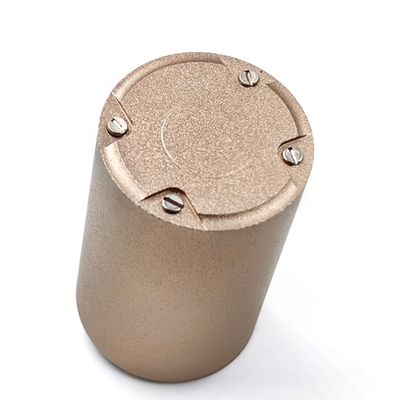

Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability

Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability

Nama merek:	FIREPOWER
Nomor Model:	MFOG-091D
Moq:	1
harga:	800$
Ketentuan Pembayaran:	L/C, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Rentang pengukuran:

±300°/dtk

Stabilitas nol-bias (10s, 1σ, °/jam):

3 °/jam

Jalan acak sudut (°/H1/2):

≤0.02 °/jam

Pengulangan tanpa bias:

≤2 °/jam

Stabilitas faktor skala (RMS,%):

≤0,1%

Catu daya (V):

5+0,15V

Kemasan rincian:

spons + kotak

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability

Product Description

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

Key Features

Simple structure with no moving or wear parts
Fast start-up time and compact design
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber coil skeleton and structural components

Physical Specifications

Dimensions: φ24mm × 51.6mm

Weight: ≤30g

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor (LSB/o/s)	3600
3	Scale factor stability (RMS,%)	≤0.1
4	Zero-bias stability (10s, 1σ, °/H)	≤3
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H1/2)	≤0.02
7	Start-up Time (s)	≤2
8	Power supply (V)	5+0.15
9	Power Consumption (W)	≤1.5
10	MTBF (Calculated Assessment)	50000h @ 20℃

Power Requirements

The external power supply to the product has two circuits, and the requirements are shown in Table 2:

Table 2 External Power Supply Requirements

	+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

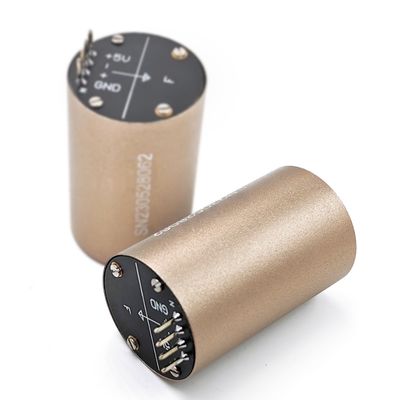

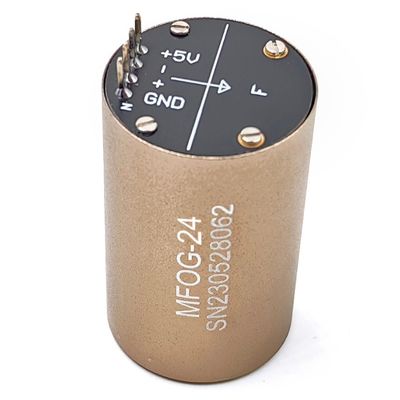

Electrical interface

The MFOG-091D micro-nano fiber optic gyroscope is electrically connected to the outside by a bonding pad.

It is defined as follows:

Node number	Color	Definition
1	GND	Ground
2	+5V	Power supply
3	YA	RS422 T+
4	YB	RS422 T-
5	B	RS422 R-
6	A	RS422 R+

Outline Drawing
