rincian produk

Rumah Produk

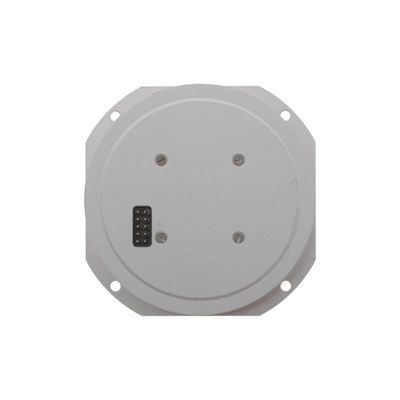

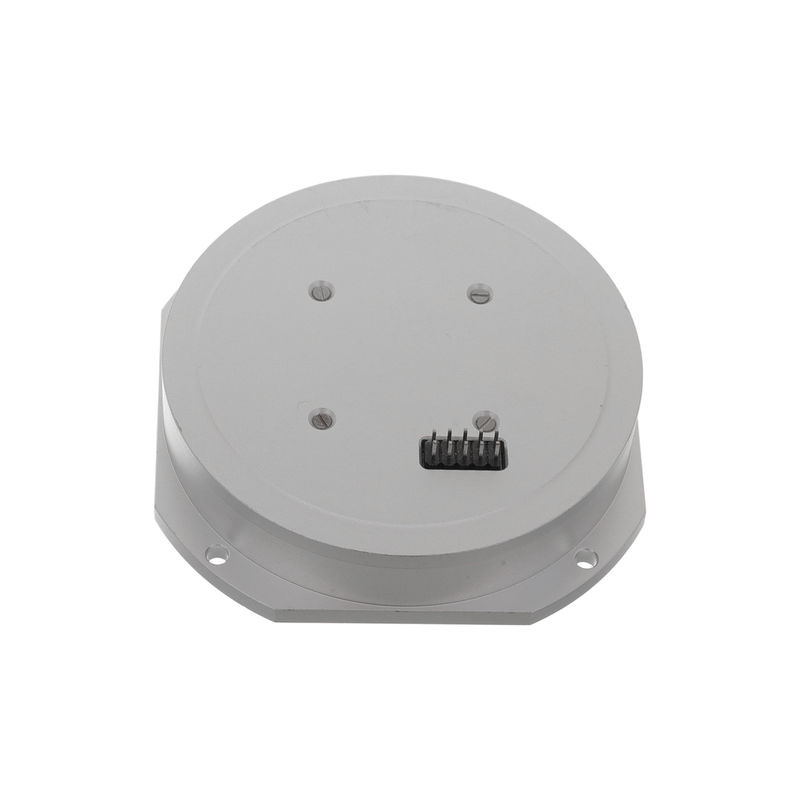

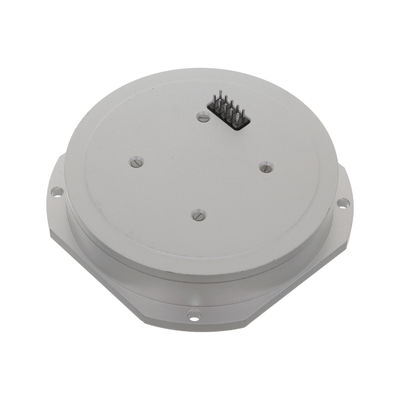

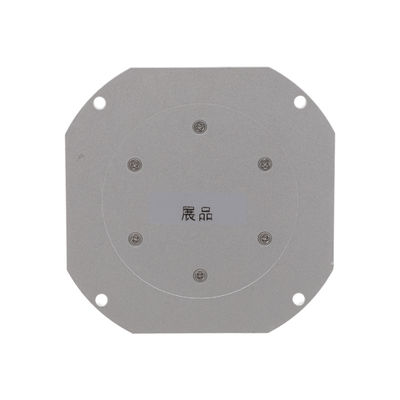

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	1000$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Jangkauan:

±240°/dtk

Stabilitas Zero-Bias ((10s, 1σ):

≤0,8°/jam

Jalan acak sudut:

≤0,02°/jam

Bandwidth 3DB:

≥1000Hz

Pengulangan nol bias ((1σ):

≤0,8°/jam

Nonlinier faktor skala:

≤ 1000 ppm

Berat:

≤150g

Konsumsi daya:

≤1.5w

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

Fizoptika VG910 fiber optic gyroscope

open-loop angular rate sensor

fiber optic gyro with warranty

Deskripsi produk

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Key Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.

Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.

Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25+12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Product Diagrams
