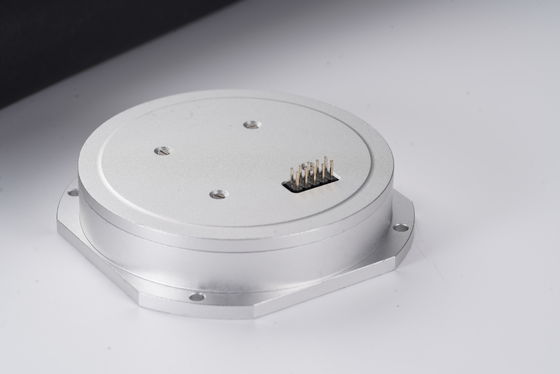

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Jangkauan:

±240°/dtk

Stabilitas Zero-Bias ((10s, 1σ):

≤0,8°/jam

Jalan acak sudut:

≤0,02°/jam

Bandwidth 3DB:

≥1000Hz

Pengulangan nol bias ((1σ):

≤0,8°/jam

Nonlinier faktor skala:

≤ 1000 ppm

Berat:

≤150g

Konsumsi daya:

≤1.5w

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

low cost fiber optic gyroscope

UAV fiber optic gyro

affordable VG910 gyroscope

Deskripsi produk

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost $500 for UAV

Product Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

The 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor (VG910) is a high-performance angular rate sensor designed for oil exploration and other demanding applications. This compact unit integrates optical, mechanical, and electronic systems into a robust package that operates based on the Sagnac effect, utilizing counter-propagating light beams through a micro-nano optical fiber coil to precisely detect angular velocity.

Key Features

All-solid-state design with no moving parts for exceptional reliability
Fast startup and long operational life (≥15 years)
Excellent resistance to shock (≥1500g) and vibration (≥70g)
Compact size and lightweight construction (≤150g)
Low power consumption (≤1.5W)
High MTBF (≥100,000 hours calculated assessment)

Performance Parameters

Parameter	Specification
Range (°/s)	±240
Scale factor (mV/°/s)	47±5
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤0.8
Zero-bias repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25+12
