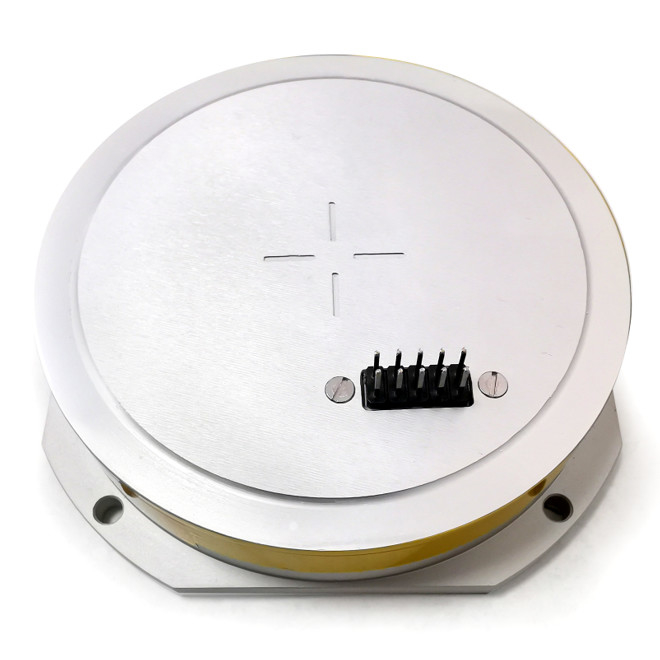

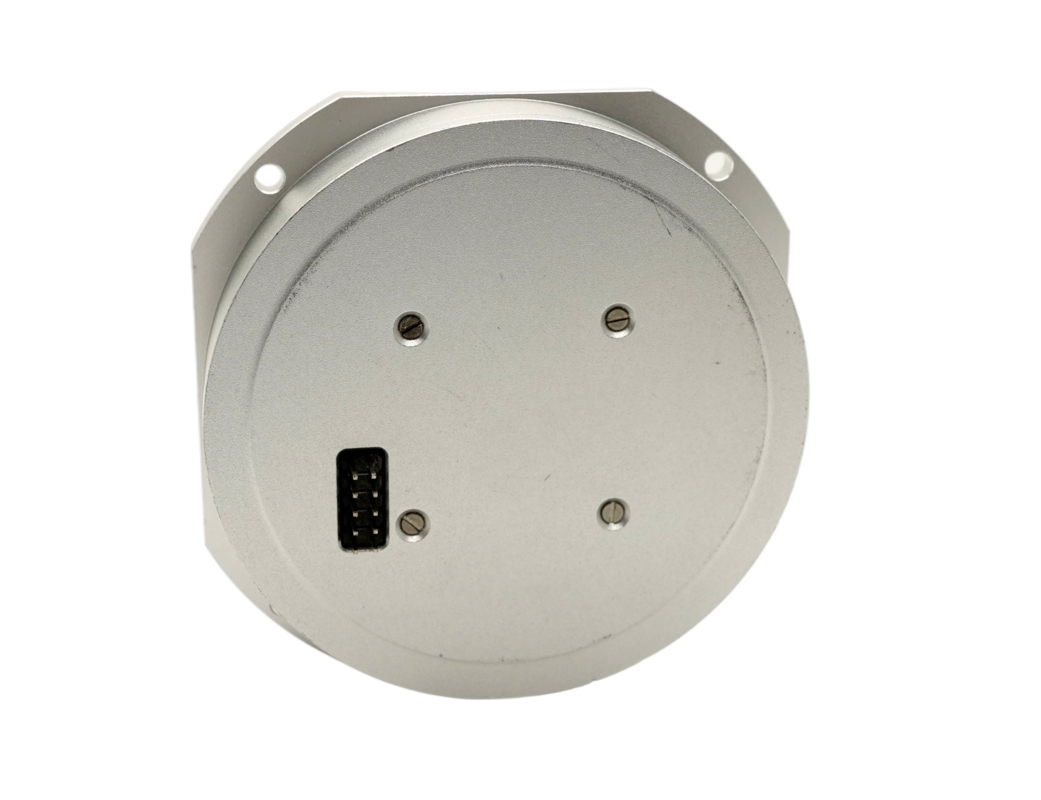

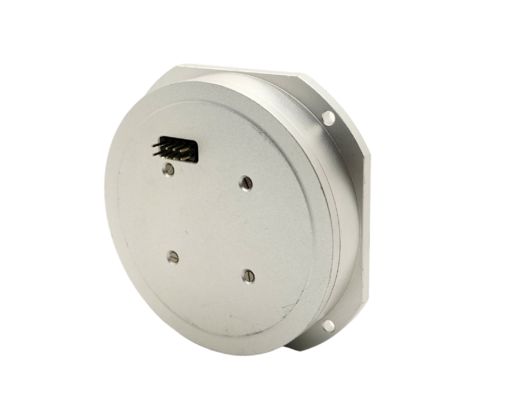

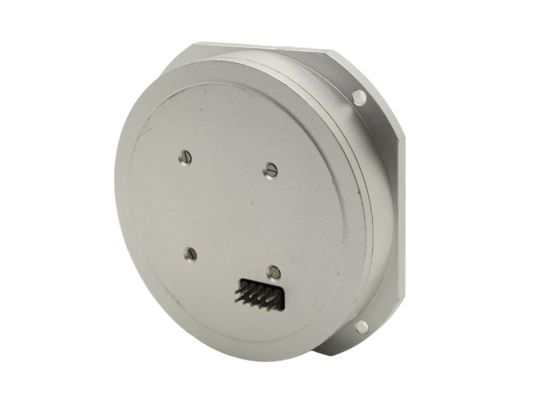

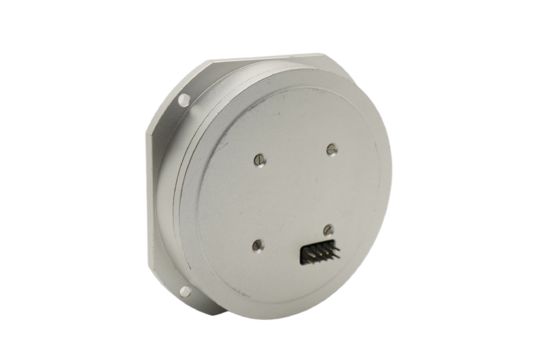

Gyro Serat Optik Presisi Tinggi 290g dengan Pengulangan Faktor Skala 10ppm

Gyro Serat Optik Presisi Tinggi 290g dengan Pengulangan Faktor Skala 10ppm

Nama merek:	Firepower
Nomor Model:	MFOG-910
Moq:	1
harga:	800USD
Ketentuan Pembayaran:	100% in advance
Kemampuan Penyediaan:	100 pcs/month

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

Jangkauan:

±240°/dtk

Faktor skala:

47±5mv/°/Dtk

Stabilitas nol-bias:

≤0,8°/jam

Pengulangan tanpa bias:

≤0,8°/jam

Jalan acak:

≤0.02 °/jam

Tingkat getaran acak:

Packaging Details:

Supply Ability:

100 pcs/month

Menyoroti:

Gyro Serat Optik 290g

Gyro Serat Optik Tingkat Sudut Inersia

Giroskop Serat Optik 0

Deskripsi produk

MFOG-910 micro-nano fiber optic gyroscope delivers exceptional accuracy and reliability for demanding navigation systems. Its micro-nano fiber technology ensures ultra-stable angular rate detection with no mechanical wear or drift.
Compact and lightweight, the MFOG-910 offers outstanding vibration resistance and temperature endurance, making it ideal for harsh environments.

Applications: UAVs, unmanned ground vehicles, aircraft platforms, marine navigation

Product Components

The product is mainly composed of the following components:

an optical path assembly,
Detection and control signal circuit board,
Optical fiber coil skeleton, shell and other structural parts,

Technical Specifications

Appearance and dimension

The overall dimension of the product is 82mm * 82mm * 19.5mm (without plug).

Weight

≤150g.

Operating temperature

-40℃~+70℃.

Storage temperature

-55℃~+85℃.

Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

Main Performance Parameters

Table 1 Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/ ^o /s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, ^o /H)	≤0.8
5	Zero-bias repeatability (1σ, ^o /H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( ^o /√ H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Mechanical and electrical interfaces

Mechanical interface

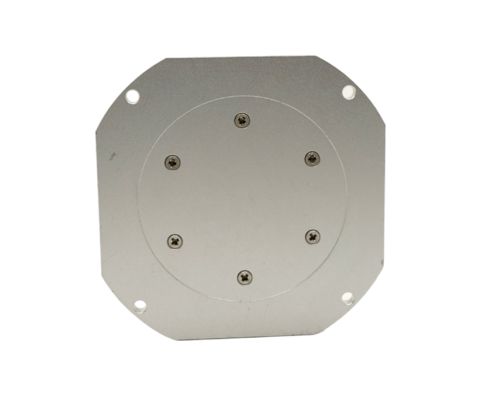

The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:

Gyro Serat Optik Presisi Tinggi 290g dengan Pengulangan Faktor Skala 10ppm 0
