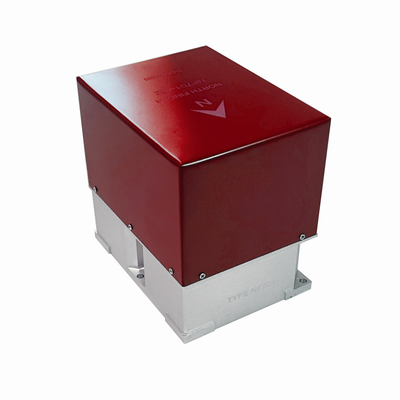

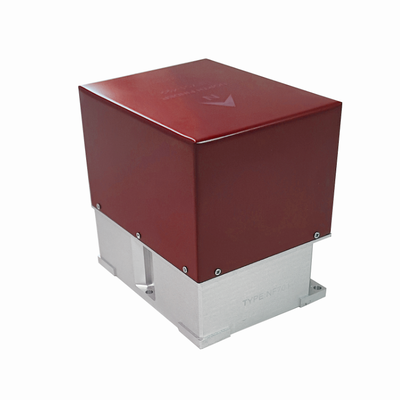

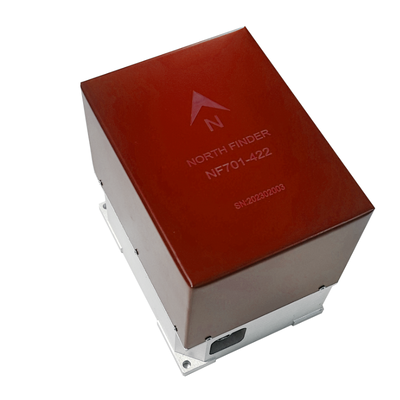

High Precision 0.3 deg Accuracy FOG North Finder with RS422 Interface and Compact 115 x 90 x 110mm Design

Name: High Precision 0.3 deg Accuracy FOG North Finder with RS422 Interface and Compact 115 x 90 x 110mm Design
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF701A
Price: 8,750.00 USD
Availability: InStock

Nama merek:	Firepower
Nomor Model:	NF701A

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO 9001:2015, CE, RoHS

Akurasi Penemuan Utara:

<= 0,3 derajat (NF701A)

Dimensi Penemu Utara:

115x90x110mm

Keluaran:

RS422

Akurasi Horisontal (1 sigma):

<= 0,05 derajat

Resolusi Azimuth:

<= 0,5 derajat

Berat:

<= 2kg

Menyoroti:

high precision FOG north finder

oil gas well surveying equipment

0.3 deg accuracy NF701A geophysical seeker

Deskripsi produk

High Precision FOG North Finder for Geophysical Exploration Oil Gas Well Surveying

Product Overview

The NF701A High Precision FOG North Finder is an essential instrument for geophysical exploration and oil gas well surveying operations. Its 0.3 deg accuracy fiber optic gyroscope technology provides reliable true north reference independent of magnetic fields, essential for accurate wellbore trajectory measurement and seismic survey orientation in remote exploration sites.

Dimensions

115 x 90 x 110 mm

Technical Specifications

North seeking time: ≤ 3 minutes
North seeking accuracy (1 sigma): ≤ 0.3 deg (NF701A); ≤ 0.5 deg (NF701B)
Horizontal accuracy: ≤ 0.05 deg (1 sigma)
Circumference: ≤ 0.5 deg (1 sigma)
Weight: ≤ 2 kg
Power supply: DC 12V ~ 24V
Power consumption: 15 W (peak)
Interface: RS422
Working mode: Automatic self-check on power-up, controlled north seeking via upper computer

Environmental Requirements

Operating temperature: -40°C to +70°C
Storage temperature: -55°C to +85°C
Humidity: Relative humidity less than 95%

Reliability

MTBF ≥ 1000 hours
MTTR ≤ 30 minutes

Ideal Applications

Oil Well Trajectory Surveying: Accurate azimuth for directional drilling and wellbore placement
Seismic Survey Orientation: Precise geophone array alignment for 3D seismic acquisition
Gas Field Exploration: North reference for exploration drilling rig positioning
Geothermal Well Development: Directional control for geothermal reservoir targeting
Mineral Exploration Drilling: Azimuth data for core drilling and resource delineation

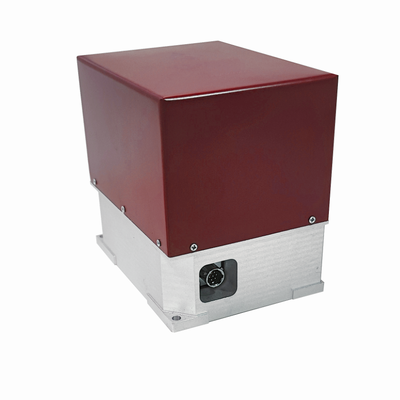

External Plug Configuration (Interface Y50EX-0607TX2)

Plug Pin Number	Functional Definition
a	DC12V ~24V
b	DC12V ~24V GND
c	TD+
d	TD-
e	RD+
f	RD-
g	GND
