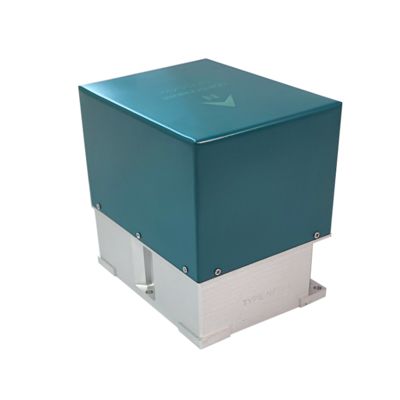

FNF703 North Seeker Fiber Optic Gyro for True North Determination

FNF703 North Seeker Fiber Optic Gyro for True North Determination

Nama merek:	1
Nomor Model:	NF701
Moq:	1
harga:	2000$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Tiongkok

Nama Produk:

Fiber Optic Gyroscope North Finder

Akurasi pencarian utara (1σ):

≤ 0,3 ° (NF701A); ≤ 0,5 ° (NF701B)

Akurasi horisontal:

≤ 0.05 °

Lingkar:

≤ 0,5 °

Antarmuka:

RS422

Catu Daya:

DC 12V ~ 24V

Berat:

≤ 2 kg

Dimensi:

115 × 90 × 110mm

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

FNF703 fiber optic gyro north finder

gyro north finder with true north determination

North Seeker fiber optic gyro

Deskripsi produk

FNF703 North Seeker Fiber Optic Gyro for True North Determination

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.

Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.

Product Specifications

Attribute	Value
Product Name	fiber optic gyroscope north finder
North seeking accuracy (1σ)	≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
Horizontal accuracy	≤ 0.05 °
Circumference	≤ 0.5 °
Interface	RS422
Power supply	DC 12V ~ 24V
Weight	≤ 2 kg
Dimension	115 * 90 * 110mm

Technical Features

Fast operation: North seeking time ≤ 3 minutes
High precision: North seeking accuracy ≤ 0.3° (NF701A model)
Stable performance: Horizontal accuracy ≤ 0.05°
Compact design: Weighs ≤ 2 kg with dimensions of 115 * 90 * 110mm
Versatile power: Operates on DC 12V ~ 24V with peak consumption of 15W
Reliable interface: RS422 communication protocol
Automated operation: Self-check upon power-on with upper computer control

Environmental Specifications

Operating temperature: -40℃ to +70℃
Storage temperature: -55℃ to +85℃
Humidity resistance: Operates in relative humidity < 95%
Durable construction: Rust-free metal surfaces with intact coatings

Product Diagram

Fiber optic gyroscope north finder

Technical diagram showing dimensions and components
