Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability

Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	1350$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Jangkauan:

± 300 (°/s

Stabilitas Zero-Bias ((10s, 1σ):

≤0,5 °/jam

Jalan acak sudut:

≤0.02 °/jam

Bandwidth 3DB:

≥300Hz

Pengulangan nol bias ((1σ):

≤0,5 °/jam

Faktor skala nonlinier:

≤500ppm

Dimensi:

φ40x20mm

Konsumsi daya:

≤1.5W

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Deskripsi produk

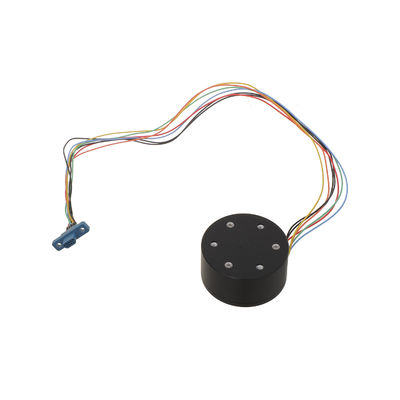

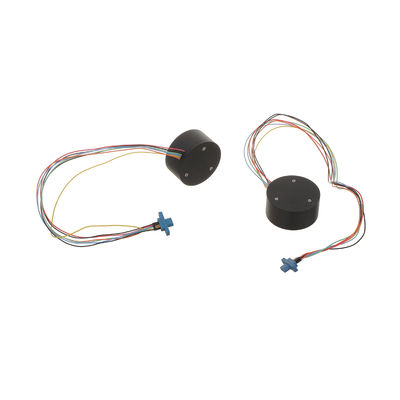

Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability

Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that seamlessly integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. The gyroscope detects angular velocity by monitoring the phase difference generated between two light beams propagating in opposite directions, processing this information through sophisticated electronics, and providing precise feedback for control or measurement purposes.

This product is designed with simplicity and reliability in mind. It features a compact and lightweight structure, with no moving parts or components subject to wear, ensuring long-term stability and durability. Its fast start-up capability, combined with its small size and low weight, makes it highly suitable for applications in attitude control, navigation, and motion measurement of various carriers, including aerial, marine, and ground platforms.

Key Features

Simple structure with no moving or wear parts
Fast startup and compact design (φ40*20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Power Requirements

The external power supply to the product has two circuits, and the requirements are shown below:

Parameter	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

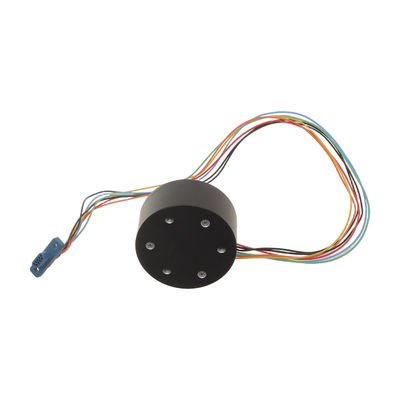

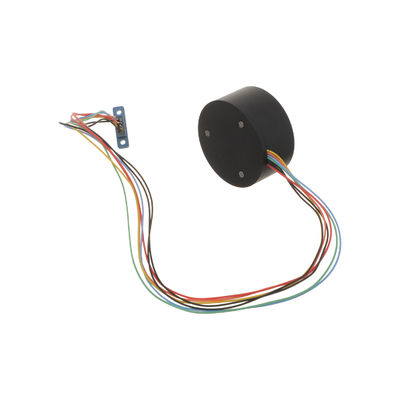

The MFOG-40 micro-nano fiber optic gyroscope is electrically connected to the outside by cables. See below for the definition of solder joints.

Node number	Color	Definition
1	Tangerine	RS422 R-
2	Blue	RS422 R+
3	Green	RS422 T+
4	Yellow	RS422 T-
5	Black	GND
6	Black	GND
7	Red	5V

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

Fizoptika VG1703 Fiber Optic Gyroscope technical diagram

Fizoptika VG1703 Fiber Optic Gyroscope dimensional drawing
