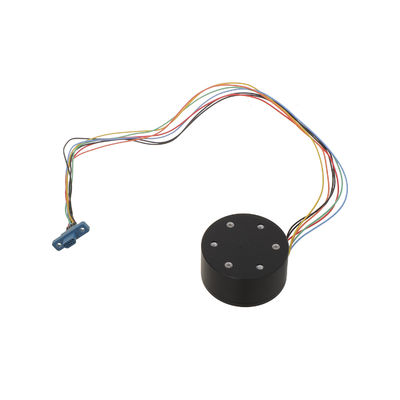

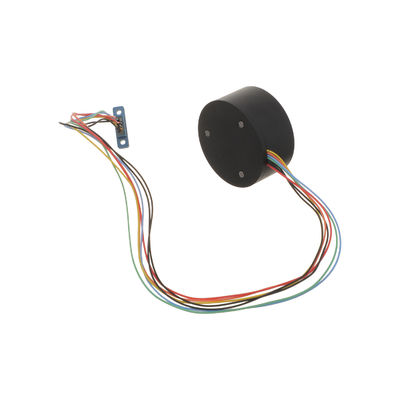

Fizoptika VG1703 Copy Fiber Optic Gyroscope ±300°/s Range 0.5°/h Stability

Fizoptika VG1703 Copy Fiber Optic Gyroscope ±300°/s Range 0.5°/h Stability

Nama merek:	Firepower
Nomor Model:	MFOG-40
Moq:	1
harga:	1350$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Jangkauan:

± 300 (°/s

Stabilitas Zero-Bias ((10s, 1σ):

≤0,5 °/jam

Jalan acak sudut:

≤0.02 °/jam

Bandwidth 3DB:

≥300Hz

Pengulangan nol bias ((1σ):

≤0,5 °/jam

Faktor skala nonlinier:

≤500ppm

Dimensi:

φ40x20mm

Konsumsi daya:

≤1.5W

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Deskripsi produk

Fizoptika VG1703 Copy Fiber Optic Gyroscope ±300°/s Range 0.5°/h Stability

Product Specifications

Attribute	Value
Range	±300°/s
Zero-bias stability (10s, 1σ)	≤0.5°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥300Hz
Zero-bias repeatability (1σ)	≤0.5°/h
Scale factor nonlinearity	≤500ppm
Dimension	φ40×20mm
Power Consumption	≤1.5W

Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. The gyroscope detects angular velocity by monitoring phase differences between counter-propagating light beams, processing this information through sophisticated electronics to provide precise feedback for control or measurement applications.

Key Features

Simple structure with no moving or wear parts
Fast startup and compact design (φ40×20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

Technical diagram of Fizoptika VG1703 Fiber Optic Gyroscope

Dimensional drawing of Fizoptika VG1703 Fiber Optic Gyroscope
